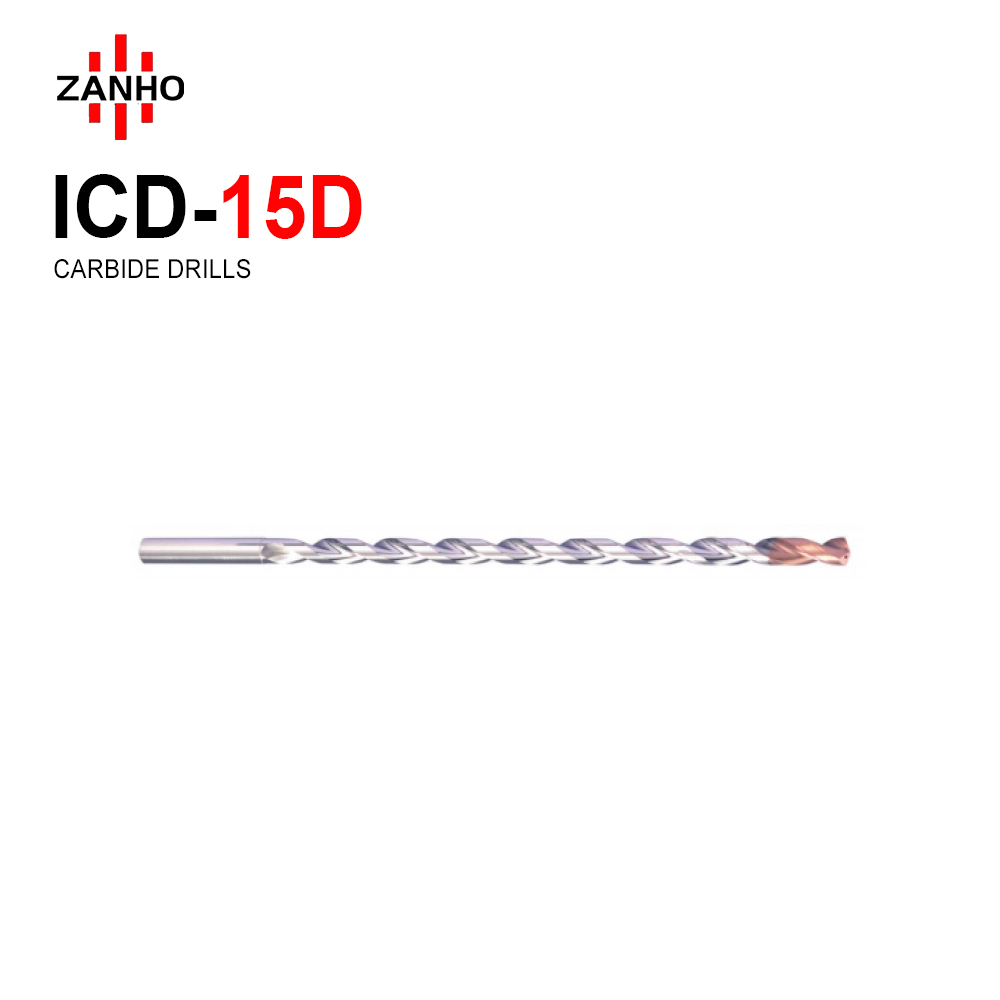

15XD Internal Coolant Drills

  • Extreme Deep Reach: Features an 15xD Depth-to-Diameter Ratio, specifically designed for ultra-precise drilling of extreme deep holes in a single, stable CNC operation.
  • High-Pressure Through-Coolant: Engineered with Two Internal Coolant Holes to deliver high-pressure fluid directly to the tip, ensuring continuous cooling and forceful chip ejection in deep cavities.
  • High Rigidity & Straightness: Made from premium sub-micron grain carbide to ensure exceptional hole straightness and dimensional accuracy even at 15xD depths.
  • Industrial Size Range: Full selection of precision diameters from 4.0mm to 15.0mm, meeting the most demanding aerospace, automotive, and mold requirements.
Categories:
Learn More
Download PDF
Description
  • Extreme Deep Reach: Features an 15xD Depth-to-Diameter Ratio, specifically designed for ultra-precise drilling of extreme deep holes in a single, stable CNC operation.
  • High-Pressure Through-Coolant: Engineered with Two Internal Coolant Holes to deliver high-pressure fluid directly to the tip, ensuring continuous cooling and forceful chip ejection in deep cavities.
  • High Rigidity & Straightness: Made from premium sub-micron grain carbide to ensure exceptional hole straightness and dimensional accuracy even at 15xD depths.
  • Industrial Size Range: Full selection of precision diameters from 4.0mm to 15.0mm, meeting the most demanding aerospace, automotive, and mold requirements.

订货号 Order Number 规格 Specification 刀径 D 刃长 L1 柄径 D1 总长 L 柄长 LS
ICD-15D-0040 D4.0*71H*D4*109L 4 71 4 109 36
ICD-15D-0045 D4.5*93H*D6*133L 4.5 93 6 133 36
ICD-15D-0050 D5.0*105H*D6*145L 5 105 6 145 36
ICD-15D-0055 D5.5*105H*D6*145L 5.5 105 6 145 36
ICD-15D-0060 D6.0*110H*D6*148L 6 110 6 148 36
ICD-15D-0065 D6.5*120H*D7*162L 6.5 120 7 162 36
ICD-15D-0070 D7.0*120H*D8*162L 7 120 8 162 36
ICD-15D-0075 D7.5*137H*D8*180L 7.5 137 8 180 36
ICD-15D-0080 D8.0*137H*D8*180L 8 137 8 180 36
ICD-15D-0085 D8.5*160H*D10*204L 8.5 160 10 204 40
ICD-15D-0090 D9.0*160H*D10*204L 9 160 10 204 40
ICD-15D-0095 D9.5*175H*D10*221L 9.5 175 10 221 40
ICD-15D-0100 D10.0*175H*D10*221L 10 175 10 221 40
ICD-15D-0105 D10.5*198H*D12*247L 10.5 198 12 247 45
ICD-15D-0110 D11.0*198H*D12*247L 11 198 12 247 45
ICD-15D-0115 D11.5*213H*D12*263L 11.5 213 12 263 45
ICD-15D-0120 D12.0*213H*D12*263L 12 213 12 263 45
ICD-15D-0125 D12.5*248H*D14*297L 12.5 248 14 297 45
ICD-15D-0130 D13.0*248H*D14*297L 13 248 14 297 45
ICD-15D-0135 D13.5*248H*D14*297L 13.5 248 14 297 45
ICD-15D-0140 D14.0*248H*D14*297L 14 248 14 297 45
ICD-15D-0145 D14.5*248H*D16*313L 14.5 248 16 313 48
ICD-15D-0150 D15.0*248H*D16*313L 15 248 16 313 48
