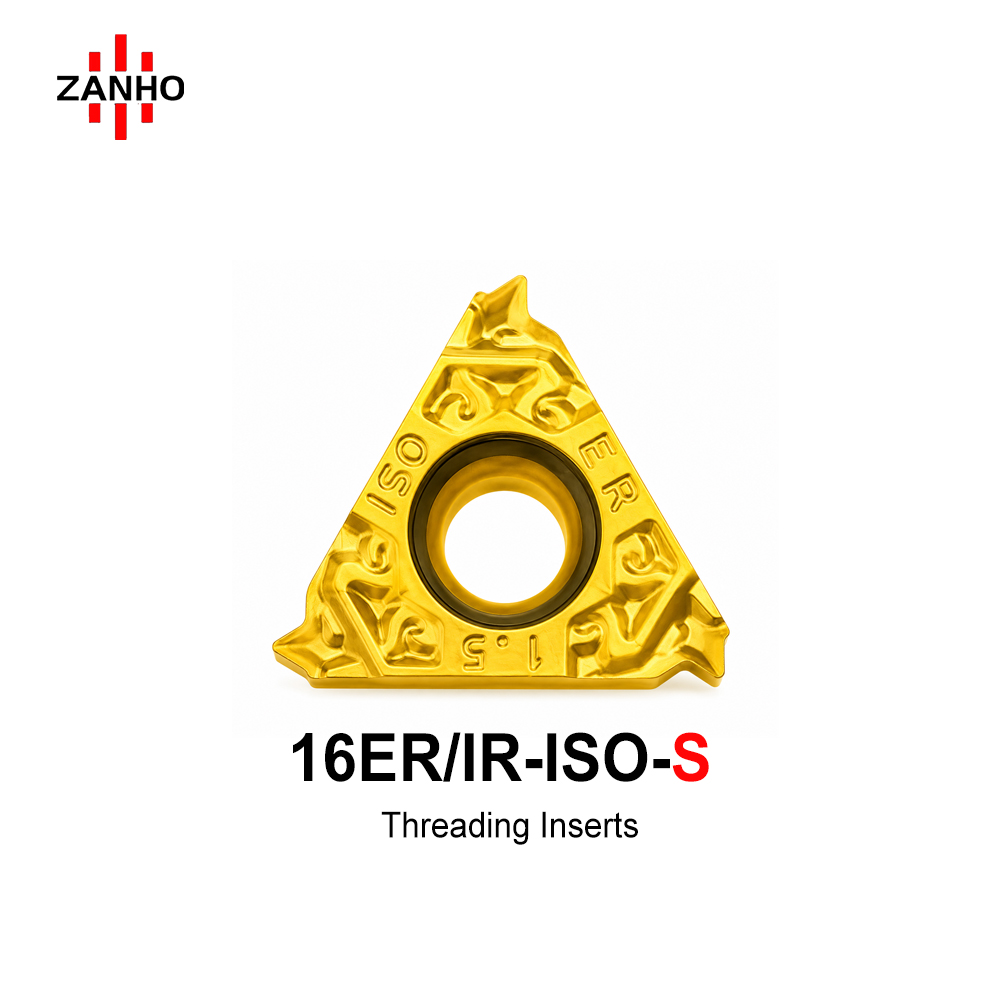

ISO Metric Threading Insert with S Spiral Chipbreaker

ZANHO ISO-S series: Precision threading inserts featuring the S-type spiral 3D chipbreaker. Engineered specifically to solve the problem of long continuous chips in internal and deep-hole threading, this spiral pattern forces chips into short curls to prevent surface scratching and entanglement. The variable-depth geometry ensures maximum edge strength while providing ample space for chip evacuation, making it the ideal choice for automated mass production.

Categories: MMT-S Threading Inserts

Download PDF

Technical Features

Spiral 3D Chipbreaker: Spiral pattern changes chip flow path, breaking long chips into short curls.
Thread Protection: Effectively reduces the risk of chips scratching or damaging thread surfaces.
Internal Thread Specialist: Preferred for blind holes and deep internal threading where chip evacuation is critical.
Variable Depth Design: Shallow groove near the tip for high tip strength; deep cavity for efficient chip room.
Vibration Control: Passivated edge with negative land reduces cutting vibration and burr formation.

ISO-S Specification Table

Internal (IR)	External (ER)	Pitch P (mm)	Height h (mm)	Radius rε (mm)
16IR-100ISO-S	16ER-100ISO-S	1.0	0.541	0.108
16IR-125ISO-S	16ER-125ISO-S	1.25	0.677	0.135
16IR-150ISO-S	16ER-150ISO-S	1.5	0.812	0.162
16IR-175ISO-S	16ER-175ISO-S	1.75	0.947	0.189
16IR-200ISO-S	16ER-200ISO-S	2.0	1.083	0.216
16IR-250ISO-S	16ER-250ISO-S	2.5	1.353	0.27
16IR-300ISO-S	16ER-300ISO-S	3.0	1.624	0.324

Insert Physical Parameters

• I.C: 9.525mm
• Thickness (S): 3.97mm
• Hole (d): 4.40mm
• Profile Angle: 60° (Metric)
• Holder Compatibility: SER-16
