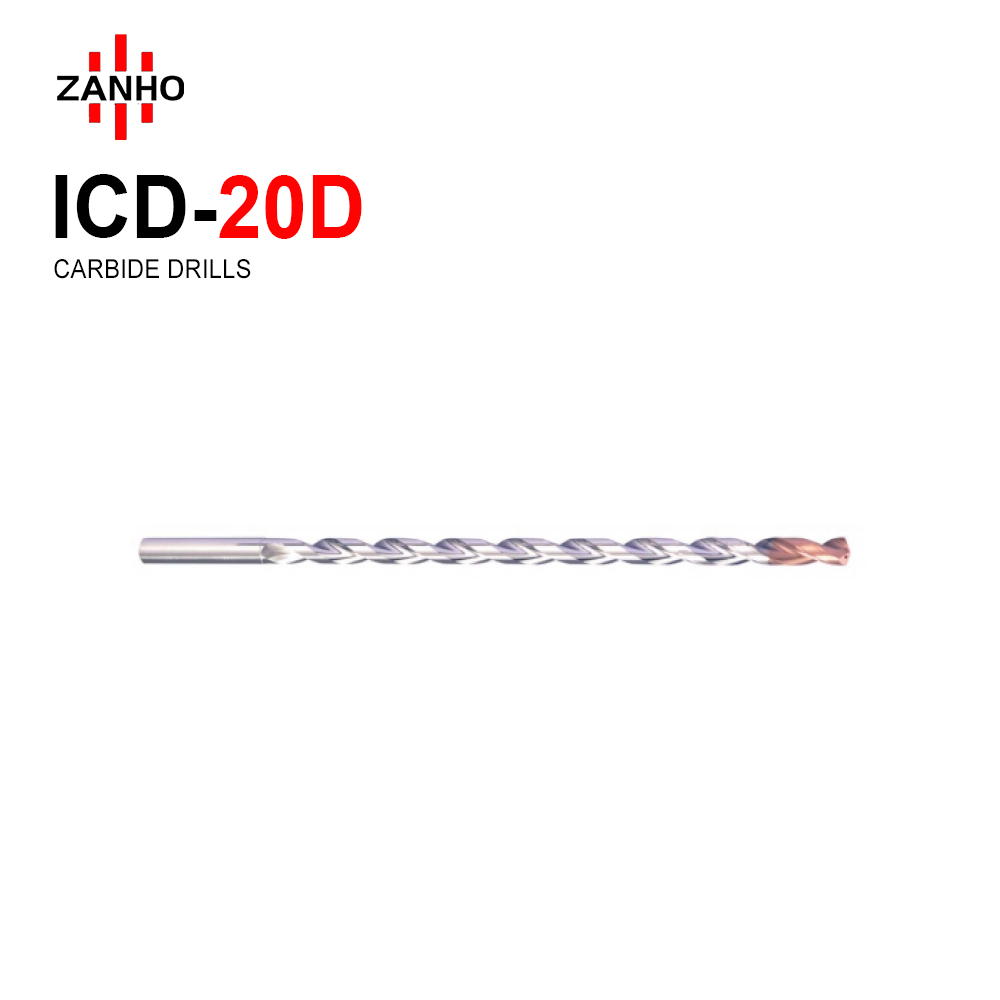

20XD Internal Coolant Drills

  • Extreme Depth-to-Diameter Ratio: Features an industry-leading 20xD Ratio, enabling the drilling of ultra-deep holes in a single, stable operation with exceptional straightness.
  • High-Pressure Through-Coolant: Engineered with Two Internal Coolant Holes to deliver high-pressure fluid directly to the tip, ensuring continuous cooling and high-speed chip ejection.
  • Maximum Rigidity: Made from premium sub-micron grain carbide to minimize tool deflection and vibration even at 20xD depths.
  • Precision Size Range: Available in cutting diameters from 4.0mm to 10.0mm with total lengths reaching up to 271mm.
Categories:
Learn More
Download PDF
Description
  • Extreme Depth-to-Diameter Ratio: Features an industry-leading 20xD Ratio, enabling the drilling of ultra-deep holes in a single, stable operation with exceptional straightness.
  • High-Pressure Through-Coolant: Engineered with Two Internal Coolant Holes to deliver high-pressure fluid directly to the tip, ensuring continuous cooling and high-speed chip ejection.
  • Maximum Rigidity: Made from premium sub-micron grain carbide to minimize tool deflection and vibration even at 20xD depths.
  • Precision Size Range: Available in cutting diameters from 4.0mm to 10.0mm with total lengths reaching up to 271mm.

订货号 Order Number 规格 Specification 刀径 D 刃长 L1 柄径 D1 总长 L 柄长 LS
ICD-20D-0040 D4.0*91H*D4*129L 4 91 4 129 36
ICD-20D-0045 D4.5*118H*D6*158L 4.5 118 6 158 36
ICD-20D-0050 D5.0*118H*D6*158L 5 118 6 158 36
ICD-20D-0055 D5.5*134H*D6*172L 5.5 134 6 172 36
ICD-20D-0060 D6.0*134H*D6*172L 6 134 6 172 36
ICD-20D-0065 D6.5*162H*D7*200L 6.5 162 7 200 36
ICD-20D-0070 D7.0*162H*D8*200L 7 162 8 200 36
ICD-20D-0075 D7.5*184H*D8*222L 7.5 184 8 222 36
ICD-20D-0080 D8.0*184H*D8*222L 8 184 8 222 36
ICD-20D-0085 D8.5*205H*D10*249L 8.5 205 10 249 40
ICD-20D-0090 D9.0*205H*D10*249L 9 205 10 249 40
ICD-20D-0095 D9.5*227H*D10*271L 9.5 227 10 271 40
ICD-20D-0100 D10.0*227H*D10*271L 10 227 10 271 40
