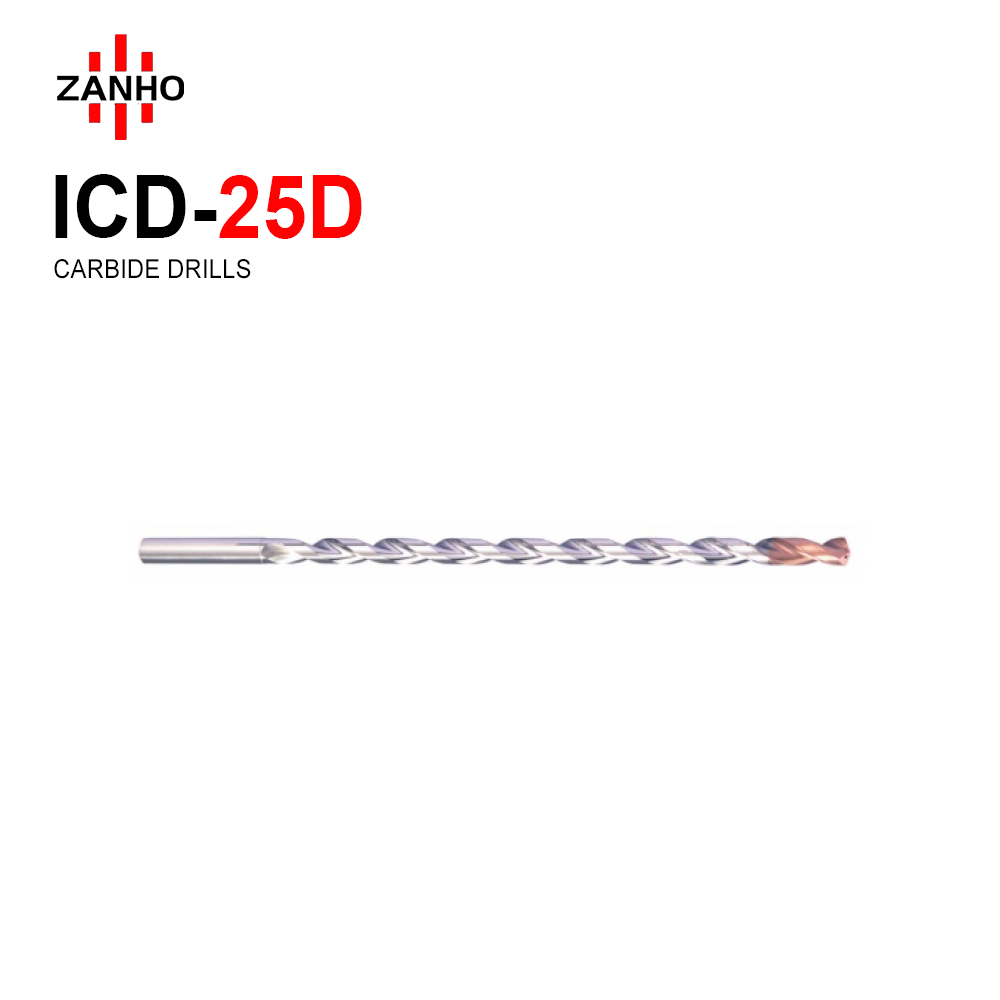

25XD Internal Coolant Drills

  • Extreme Depth Specialist: Features a specialized 25xD Depth-to-Diameter Ratio, specifically engineered for drilling ultra-deep holes with high straightness and dimensional accuracy in a single setup.
  • High-Pressure Through-Coolant: Equipped with Two Internal Coolant Holes to deliver high-pressure fluid directly to the tip, ensuring effective cooling and rapid chip removal at extreme depths.
  • Superior Rigidity & Finish: Made from premium sub-micron grain carbide with a specialized flute profile to minimize vibration and ensure superior hole wall finish.
  • Maximum Productivity: Designed to replace slow deep-hole processes, offering significantly higher feed rates and reduced cycle times compared to conventional tools.
Categories:
Learn More
Download PDF
Description
  • Extreme Depth Specialist: Features a specialized 25xD Depth-to-Diameter Ratio, specifically engineered for drilling ultra-deep holes with high straightness and dimensional accuracy in a single setup.
  • High-Pressure Through-Coolant: Equipped with Two Internal Coolant Holes to deliver high-pressure fluid directly to the tip, ensuring effective cooling and rapid chip removal at extreme depths.
  • Superior Rigidity & Finish: Made from premium sub-micron grain carbide with a specialized flute profile to minimize vibration and ensure superior hole wall finish.
  • Maximum Productivity: Designed to replace slow deep-hole processes, offering significantly higher feed rates and reduced cycle times compared to conventional tools.

订货号 Order Number 规格 Specification 刀径 D 刃长 L1 柄径 D1 总长 L 柄长 LS
ICD-25D-0040 D4.0*116H*D4*156L 4 116 4 156 36
ICD-25D-0045 D4.5*145H*D6*183L 4.5 145 6 183 36
ICD-25D-0050 D5.0*145H*D6*183L 5 145 6 183 36
ICD-25D-0055 D5.5*170H*D6*210L 5.5 170 6 210 36
ICD-25D-0060 D6.0*170H*D6*210L 6 170 6 210 36
ICD-25D-0065 D6.5*197H*D7*237L 6.5 197 7 237 36
ICD-25D-0070 D7.0*197H*D8*237L 7 197 8 237 36
ICD-25D-0075 D7.5*220H*D8*260L 7.5 220 8 260 36
ICD-25D-0080 D8.0*220H*D8*260L 8 220 8 260 36
ICD-25D-0085 D8.5*250H*D10*294L 8.5 250 10 294 40
ICD-25D-0090 D9.0*250H*D10*294L 9 250 10 294 40
ICD-25D-0095 D9.5*277H*D10*321L 9.5 277 10 321 40
ICD-25D-0100 D10.0*277H*D10*321L 10 277 10 321 40
