WNMU-GH

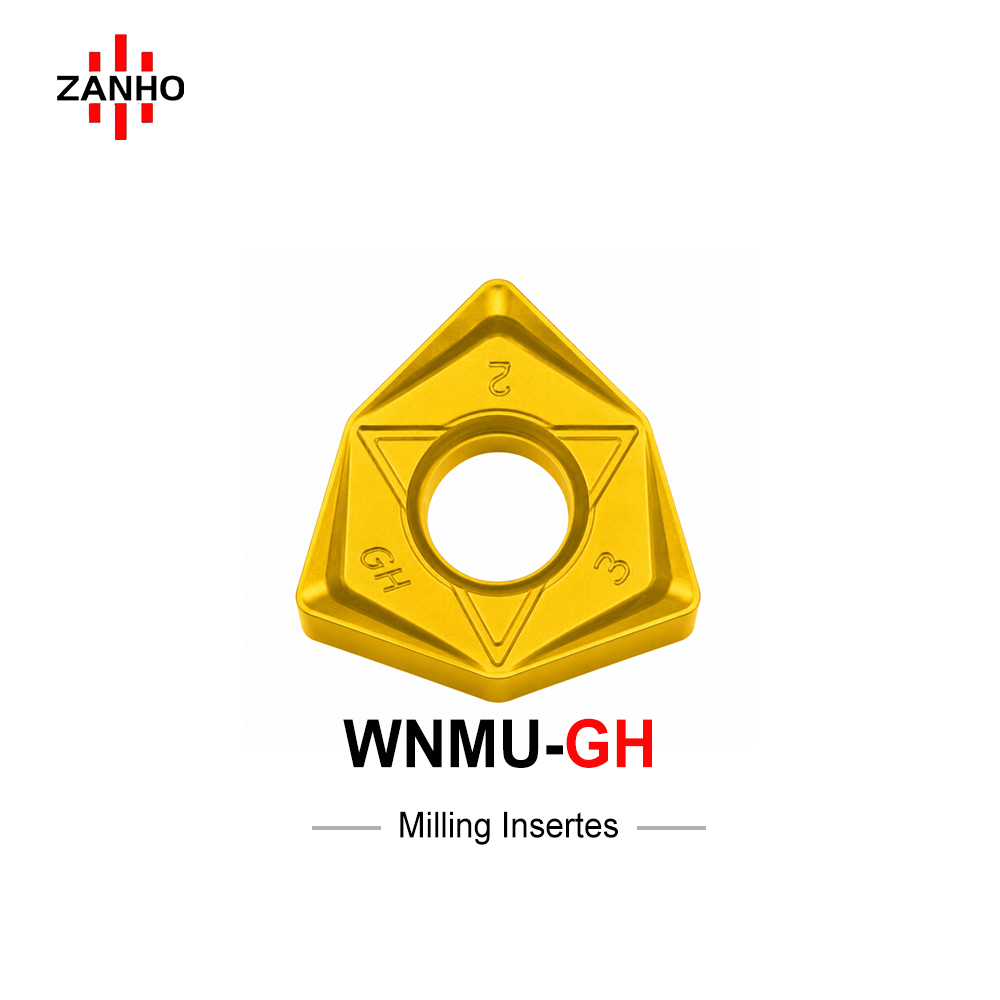

ZANHO WNMU-GH series is a heavy-duty double-sided 6-corner milling insert engineered for extreme productivity in strong interrupted cutting and high-load roughing. Featuring a highly reinforced cutting edge, it withstands massive impact loads and resists plastic deformation during large depth-of-cut (Ap) and high-feed (Fz) operations. Designed for maximum reliability in alloy steel and cast iron machining, this insert is the ideal choice for stable, high-power CNC setups facing unstable or harsh processing conditions.
Categories:
Learn More
Download PDF
Description

Key Technical Advantages

  • Reinforced Impact-Resistant Edge: Specifically engineered for heavy-duty and strong interrupted cutting, significantly reducing the risk of edge chipping under fluctuating loads.
  • High Metal Removal Rates: Optimized for large depth of cut and high feed rates, maximizing roughing productivity in alloy steel and mold steel applications.
  • Superior Tool Reliability: The robust chipbreaker structure ensures consistent performance even in harsh machining environments such as casting/forging skin removal.
  • Resistance to Deformation: Advanced geometry prevents plastic deformation and abrasive wear at high temperatures, extending tool life in continuous high-load cutting.
  • Cost-Effective 6-Edge Design: Double-sided hexagonal structure provides 6 effective cutting corners per insert for maximum economic value.

Dimensional Specifications (mm)

Model IC (mm) S (mm) D1 (mm) BS (mm) RE (mm)
WNMU080608EN-GH 14.02 6.65 6.2 1.3 0.8

Facing Challenging Interrupted Cutting?

ZANHO WNMU-GH series is tuned for extreme durability in high-load roughing. Contact us for technical parameter guidance and bulk B2B wholesale pricing.
