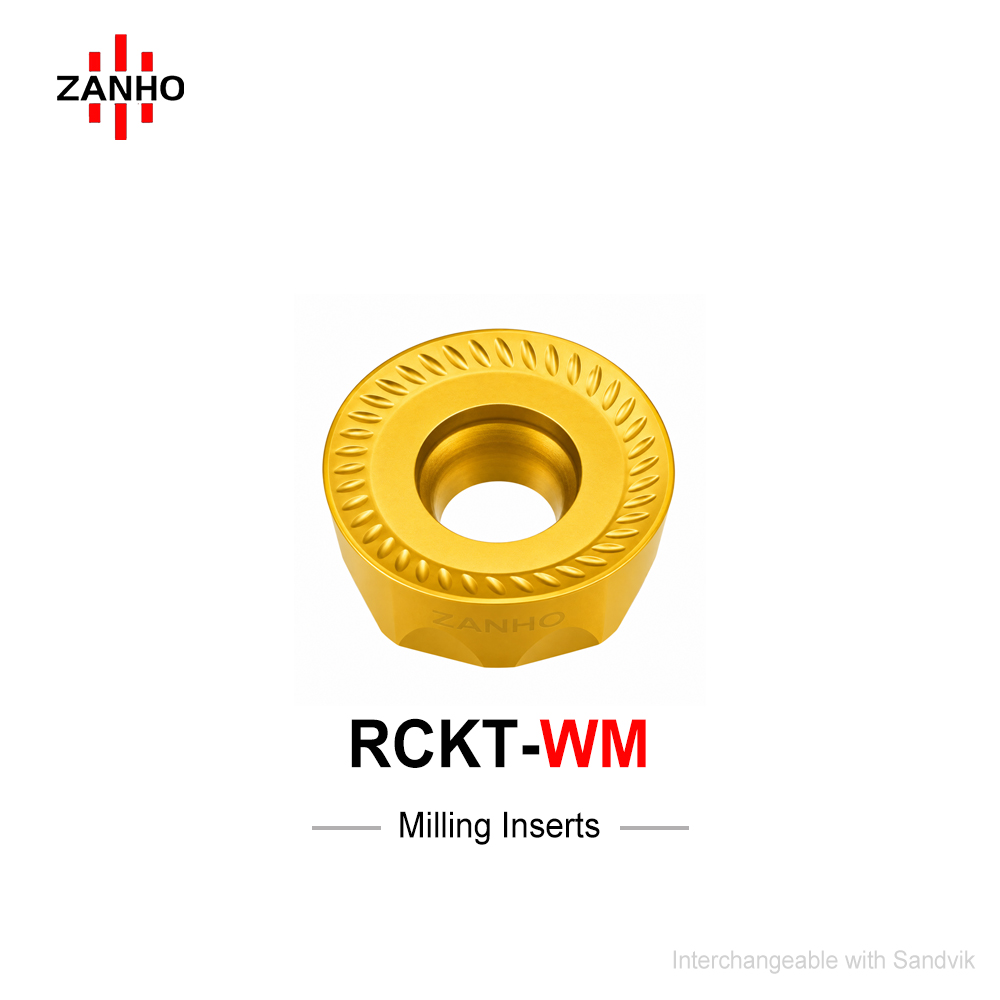

ZANHO RCKT-WM series features robust round inserts with a specialized WM chip-splitting geometry. Optimized for massive material removal and heavy roughing in mold cavities, it balances low cutting loads with maximum edge durability. The full-circle cutting edge provides ultimate economic value and process stability across ramping, face milling, and profiling operations.
Categories:
Learn More
Download PDF
Description

Key Technical Advantages

  • WM High-Efficiency Chipbreaker: Optimized for active chip segmenting, reducing thermal concentration and cutting force in high-load machining.
  • Full-Circle Edge Life: Circular profile allows for continuous indexing, significantly lowering the tool cost per cutting edge.
  • Extreme Roughing Strength: Reinforced insert body effectively handles heavy allowances and interrupted cuts in Steel and Cast Iron.
  • Stable 3D Profiling: Precision-balanced geometry delivers low-vibration performance in complex mold cavities and 3D contours.
  • Low Spindle Torque: WM geometry reduces friction, allowing for efficient metal removal even on medium-power CNC machines.

Insert Dimensional Specifications (mm)

Model I.C (Diameter) S (Thickness) D1 (Hole) Max ap
RCKT10T3MO-WM 10 mm 3.18 mm 4.4 mm 5.0 mm
RCKT1204MO-WM 12 mm 4.00 mm 5.2 mm 6.0 mm
RCKT2006MO-WM 20 mm 6.35 mm 8.5 mm 10.0 mm

Maximize Productivity with -WM Geometry

ZANHO RCKT-WM series delivers reliable stability for massive material removal. Contact us for bulk inquiry and technical support.
