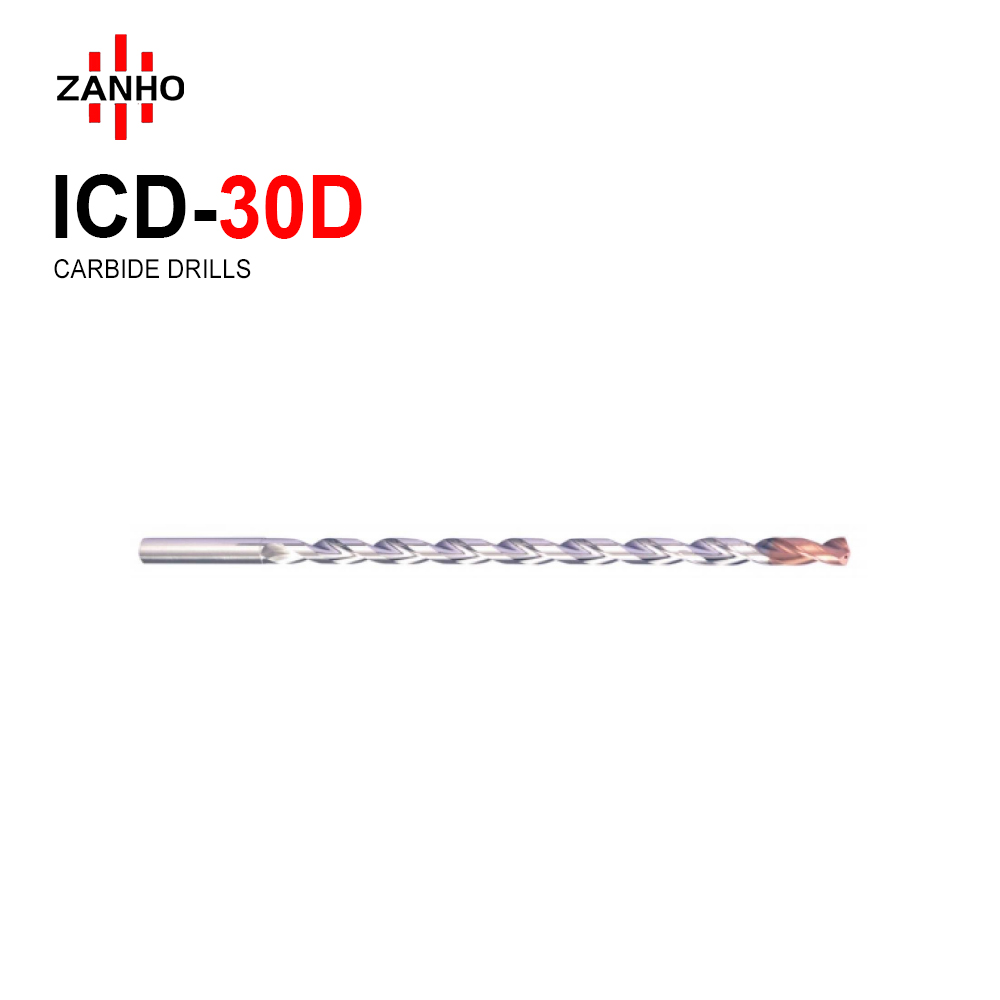

30XD Internal Coolant Drills

  • Extreme Depth-to-Diameter Ratio: Features a specialized 30xD Ratio, specifically engineered for drilling ultra-deep holes in a single, stable CNC operation with high straightness and dimensional accuracy.
  • High-Pressure Through-Coolant: Equipped with Two Internal Coolant Holes to deliver high-pressure fluid directly to the tip, ensuring continuous cooling and high-speed chip ejection at extreme depths.
  • Replace Traditional Processes: A high-efficiency alternative to slow deep-hole processes like gun drilling, offering significantly shorter CNC cycle times.
  • Maximum Rigidity: Made from premium sub-micron grain carbide with a specialized flute profile to minimize vibration and tool deflection even at 30xD depths.
  • Precision Size Range: Available in precision cutting diameters from 4.0mm to 8.0mm, with overall lengths reaching up to 303mm.
Categories:
Learn More
Download PDF
Description

订货号 Order Number 规格 Specification 刀径 D 刃长 L1 柄径 D1 总长 L 柄长 LS
ICD-30D-0040 D4*136H*D4*176L 4 136 4 176 36
ICD-30D-0045 D4.5*168H*D6*208L 4.5 168 6 208 36
ICD-30D-0050 D5.0*168H*D6*208L 5 168 6 208 36
ICD-30D-0055 D5.5*180H*D6*132L 5.5 180 6 132 36
ICD-30D-0060 D6.0*180H*D6*232L 6 180 6 232 36
ICD-30D-0065 D6.5*232H*D7*272L 6.5 232 7 272 36
ICD-30D-0070 D7.0*232H*D8*272L 7 232 8 272 36
ICD-30D-0075 D7.5*263H*D8*303L 7.5 263 8 303 36
ICD-30D-0080 D8.0*263H*D8*303L 8 263 8 303 36
