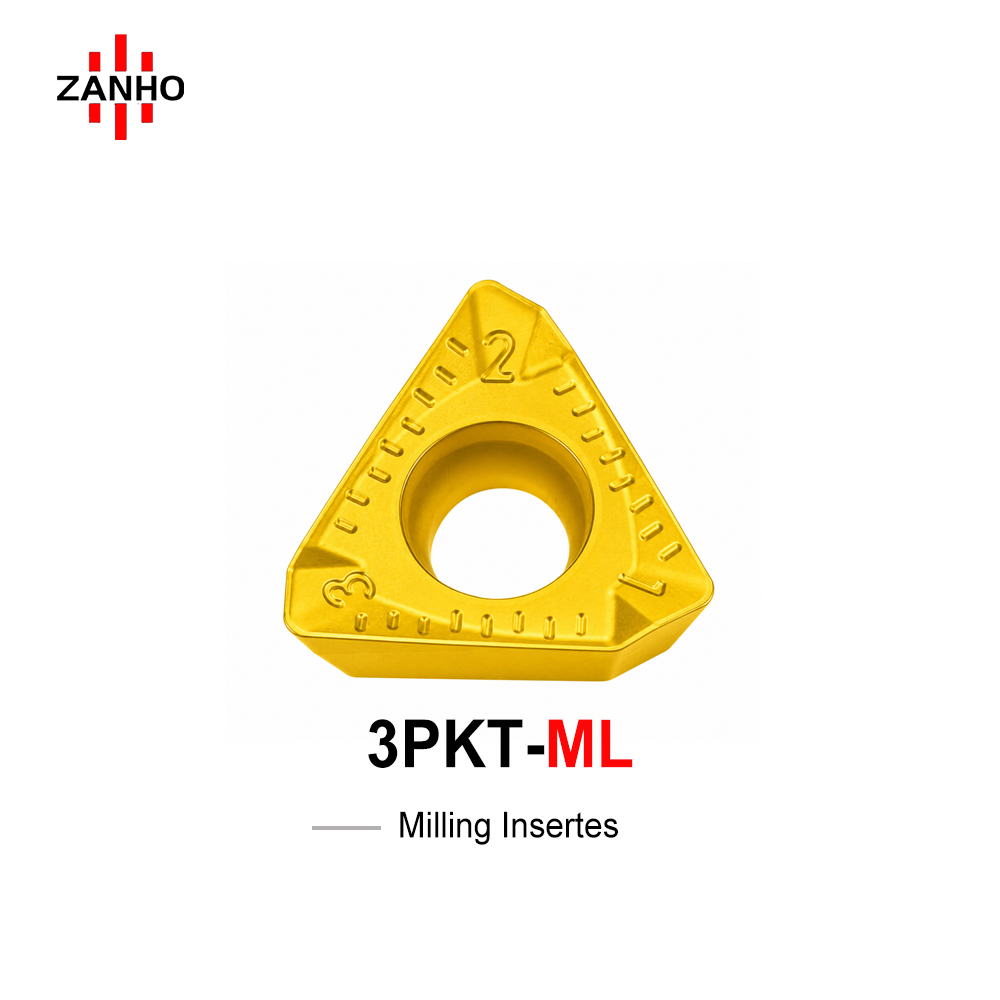

3PKT-ML Series | 90° Shoulder Milling Insert

ZANHO 3PKT-ML series features flat-mounted, positive 3-edge milling inserts specifically engineered for high-precision 90° shoulder and face milling. Designed with a large positive rake and sharp helical cutting edge, it effectively reduces cutting resistance and spindle load. Optimized for stainless steel and high-temperature alloys, the ML chipbreaker ensures stable chip fragmentation and superior surface quality in light-to-medium machining environments.

Download PDF

Key Technical Advantages

3 Precision Cutting Edges: The triangular positive design offers three high-utilization cutting edges, delivering excellent economic value for shoulder milling operations.
Sharp Helical Edge Geometry: Features a high positive rake that lowers axial and radial cutting forces, ideal for high-speed, light-cutting applications.
Stainless Steel & Alloy Specialist: Specifically optimized for gummy and difficult-to-machine materials, preventing chip re-cutting and built-up edge (BUE).
Perfect 90° Shoulders: Engineered to provide exceptional squareness and surface finish on vertical shoulders, reducing the need for secondary finishing.
Low Spindle Load: The sharp cutting action significantly reduces power consumption and heat generation, extending both tool and machine life.

Dimensional Specifications (mm)

Model	I.C (mm)	S (mm)	APMAX (mm)	Bs (mm)	R (mm)
3PKT 100404R-ML	6.9	4.0	7.0	2.0	0.4
3PKT 100408R-ML	6.9	4.0	7.0	1.1	0.8
3PKT 150508R-ML	10.7	5.0	11.0	1.6	0.8

Precision Milling in Tough Materials?

ZANHO 3PKT-ML inserts provide sharp and stable cutting for your high-performance milling needs. Contact us for wholesale B2B pricing and technical grade recommendations.
