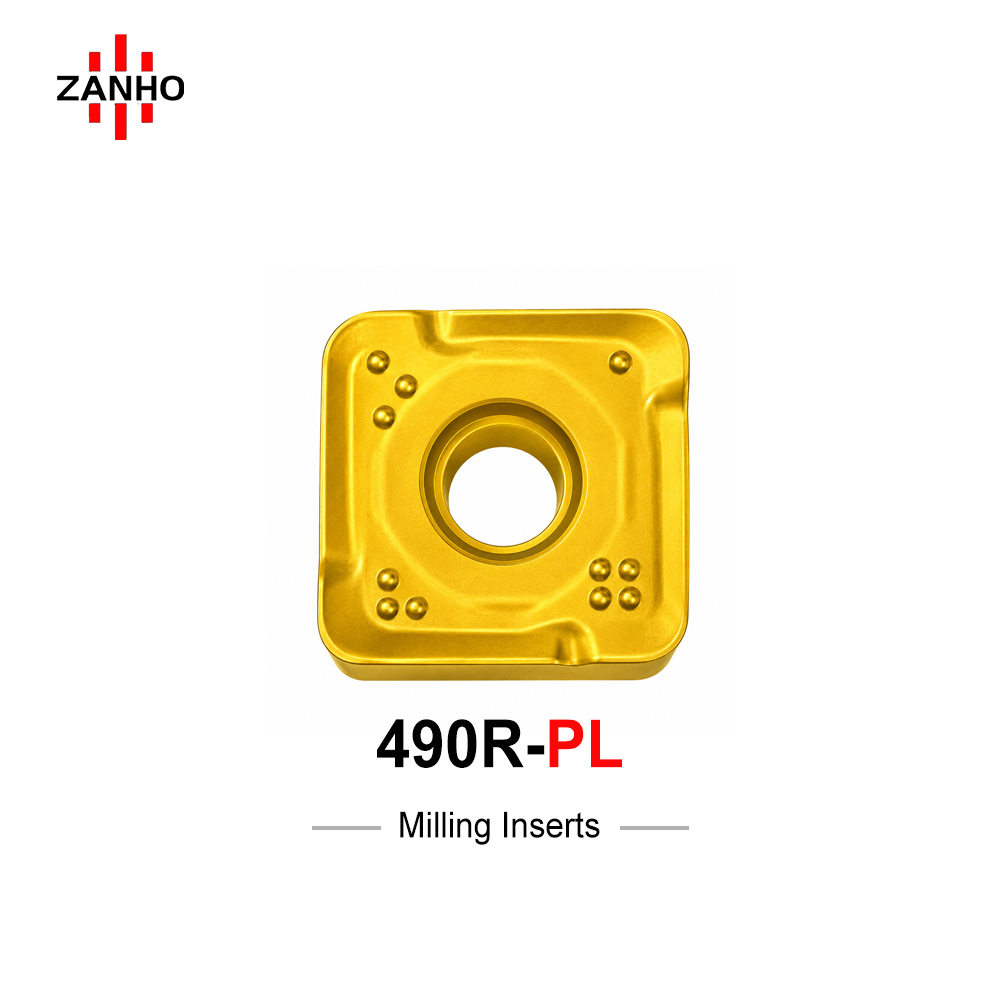

490R-PL

ZANHO 490R-140408M-PL is a high-performance 90° square shoulder milling insert specifically engineered for steel roughing and medium machining. The specialized PL chipbreaker provides a reinforced cutting edge that excels under high feed rates and heavy depths of cut, resisting impact while maintaining stable chip evacuation. Equipped with a large 1.74mm wiper edge, it delivers an exceptional surface finish even in continuous cutting conditions with light scale, ensuring high productivity and extended tool life.
Categories:
Learn More
Download PDF
Description

Key Technical Advantages

  • Steel-Optimized PL Geometry: Specifically developed for medium to heavy roughing of steel components, balancing edge strength with high metal removal rates.
  • Impact-Resistant Edge: The reinforced PL chipbreaker is designed to handle high cutting depths and feed rates, providing superior resistance to thermal and mechanical shock.
  • 1.74mm Wiper Performance: Features an integrated precision wiper flat (Bs) that smoothens the workpiece surface, reducing the need for secondary finishing operations.
  • Smooth Chip Evacuation: The enlarged chip gullet geometry prevents chip jamming during high-volume milling, ensuring process stability in continuous operations.
  • Precision 90° Verticality: Designed for standard 90-degree cutters to achieve excellent squareness on steps and faces, maintaining high dimensional accuracy.

Dimensional Specifications (mm)

Model L (Length) I.C (mm) S (Thickness) R (Corner R) d (Hole Dia) Bs (Wiper)
490R-140408M-PL 13.8 13.8 4.2 0.8 4.15 1.74

Ready for Heavy Steel Milling?

ZANHO 490R-PL series is engineered for durability and speed in high-load applications. Contact us for wholesale pricing and material grade recommendations.
