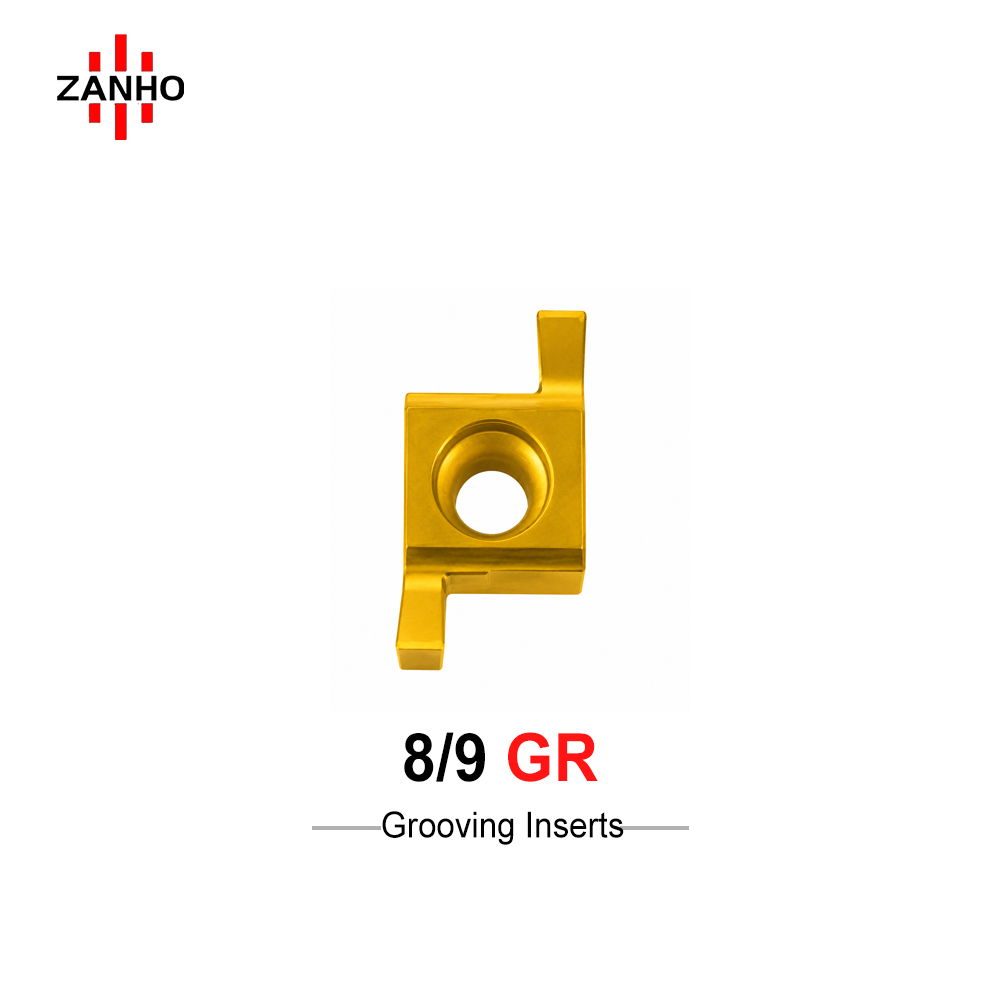

8GR 9GR | High-Rigidity Internal Grooving Inserts

ZANHO 8GR/9GR series: High-rigidity Style B internal grooving inserts designed for stable precision machining. Available in Right (GR) and Left (GL) hands with widths from 1.00mm to 3.50mm. Features specialized Full Radius (R0.50 - R1.75) geometries for profile grooving. Engineered to provide exceptional tool life and surface integrity in high-demand CNC small part production.

Categories: Grooving & Parting Inserts

Download PDF

Professional Technical Features

Enhanced Rigid Structure: The Style B (8GR/9GR) body is significantly more robust than Style A, providing the necessary stiffness for deeper internal grooving and higher feed rates.
Comprehensive Radius Range: Includes both standard 0.20mm corner radius and specialized Full Radius profiles for specific engineering requirements.
Sharp Precision Grinding: Every cutting edge is precision ground to ensure absolute sharpness and dimensional consistency, resulting in mirror-like surface finishes.
Full L/R Hand Availability: All designations are available in Right-hand (GR) and Left-hand (GL) to accommodate diverse CNC machine configurations.

8GR / 9GR Complete Specification Table (mm)

Right Hand	Left Hand	L	A	S	ød	W	T	R
8GR100	8GL100	10.16	6.20	3.87	2.58	1.00	2.00	0.20
8GR150	8GL150					1.50		0.20
8GR200	8GL200					2.00		0.20
8GR250	8GL250					2.50		0.20
8GR300	8GL300					3.00		0.20
8GR350	8GL350					3.50		0.20
8GR100-R050	8GL100-R050					1.00		0.50 (Full)
8GR150-R075	8GL150-R075					1.50		0.75 (Full)
8GR200-R100	8GL200-R100					2.00		1.00 (Full)
8GR250-R125	8GL250-R125					2.50		1.25 (Full)
8GR300-R150	8GL300-R150					3.00		1.50 (Full)
8GR350-R175	8GL350-R175					3.50		1.75 (Full)
9GR100	9GL100	12.95	7.70	4.66	2.86	1.00	3.00	0.20
9GR150	9GL150					1.50		0.20
9GR200	9GL200					2.00		0.20
9GR250	9GL250					2.50		0.20
9GR300	9GL300					3.00		0.20
9GR350	9GL350					3.50		0.20
9GR100-R050	9GL100-R050					1.00		0.50 (Full)
9GR150-R075	9GL150-R075					1.50		0.75 (Full)
9GR200-R100	9GL200-R100					2.00		1.00 (Full)
9GR250-R125	9GL250-R125					2.50		1.25 (Full)
9GR300-R150	9GL300-R150					3.00		1.50 (Full)
9GR350-R175	9GL350-R175					3.50		1.75 (Full)

High-Precision Stability for Deep Internal Grooving

ZANHO 8GR/9GR series provides ultimate rigidity for industrial CNC applications. Contact us for bulk B2B quotations.
