AOMT123608PEER‑M

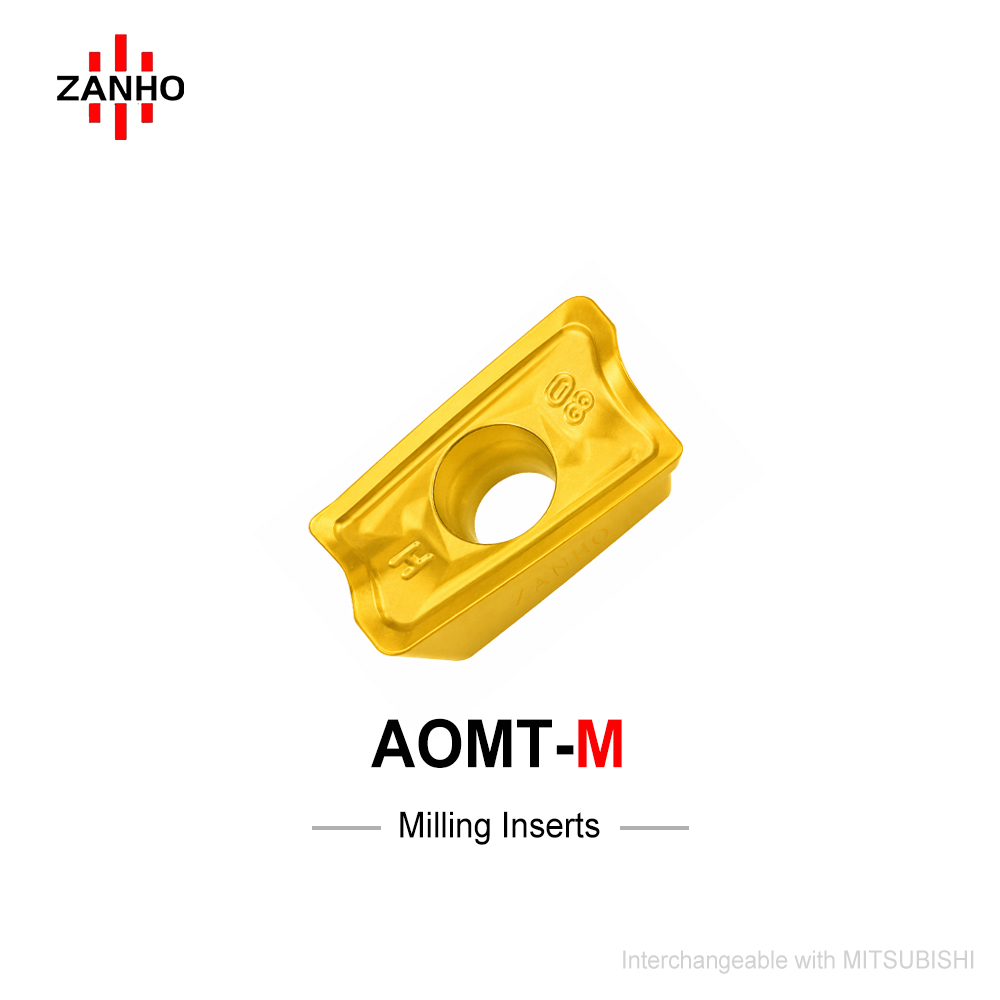

ZANHO AOMT123608PEER-M is an 85° parallel quadrilateral insert engineered for face milling, ramping, and pocketing. Featuring the M chipbreaker, it perfectly balances light cutting action with high edge toughness. Precision ground locating surfaces ensure high indexing repeatability and low vibration in diverse roughing and semi-finishing tasks.
Categories:
Learn More
Download PDF
Description

Core Advantages

  • Optimized M Chipbreaker: Open wavy geometry with a positive rake angle reduces cutting resistance and spindle load, effectively suppressing machining vibration.
  • Reinforced Edge Treatment: Combines negative land and edge honing to maximize impact resistance and prevent micro-chipping in interrupted cuts.
  • High Repeatability: Precision ground locating surfaces guarantee exceptional repeat accuracy after indexing, maintaining consistent workpiece tolerances.
  • Advanced Chip Control: Multi-stage flow ribs guide chip curling and evacuation, preventing chip re-cutting in deep pockets and face milling.
  • General Purpose Versatility: Ideal for face milling, ramping, and helical interpolation across steel and cast iron components.

Specifications (mm)

Model Length (L) Thickness (S) Cutting Length (LE) Radius (RE) BS (Wiper) Shape
AOMT123608PEER-M 12.0 3.6 10.0 0.8 1.2 85° Parallel

High Efficiency Milling for Precision Components

ZANHO AOMT series delivers industrial reliability and precision. Contact us for bulk B2B pricing and grade recommendations.

Looking for the right specification, grade, or coating for your market?

Send us your requirements below. Our sales team will provide product recommendations, competitive pricing, and OEM options based on your needs. For distributors, wholesalers & importers — bulk order inquiries are welcome.

Fill in the form below and get your quotation.
