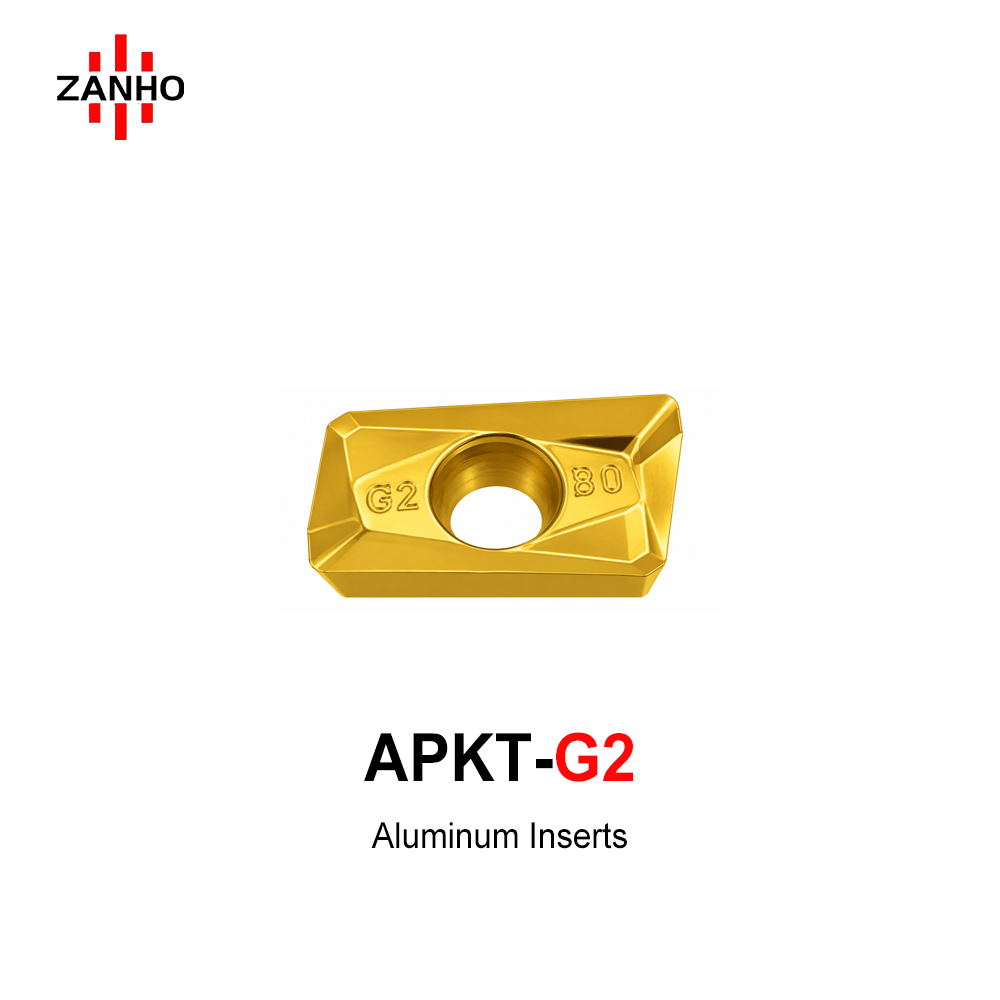

APKT-G2

ZANHO APGT-G2 / APKT-G2 series: High-performance square shoulder milling inserts featuring a unique 3D ridge-style chipbreaker. Engineered for aluminum and non-ferrous alloys, these inserts combine a large positive rake angle for light cutting with mandatory chip curling for stable evacuation. Equipped with a buffed mirror rake face and integrated wiper edge, they deliver exceptional surface quality and process reliability across varying cutting allowances.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • 3D Ridge-Style Chipbreaker: Specialized ridge geometry provides mandatory chip curling and stable evacuation, adapting to varied cutting allowances.
  • Large Positive Rake Design: Minimizes cutting resistance and ensures a sharp, light cutting action, reducing tool vibration.
  • Mirror-Polished Rake Face: Ultra-smooth buffed surface effectively prevents chip adhesion and built-up edge (BUE) in aluminum machining.
  • Integrated Wiper Edge: Precision-ground wiper structure guarantees superior surface finish on machined side walls and floors.
  • Micro-Reinforced Cutting Edge: Precision edge treatment enhances impact resistance and stability during high-speed operations.
  • Optimized for Finishing: Excellent choice for semi-finishing and finishing of square shoulders and step faces on non-ferrous materials.

APGT / APKT Series Dimensions (ISO Standard)

Model Edge Length (mm) Thickness (mm) Bore D (mm) Radius R (mm)
APGT1604PDER-G2 16mm 4.76mm 5.5mm 0.8mm
APKT1135PDER-G2 11mm 3.5mm 4.2mm 0.8mm
APKT1003PDSR 10mm 3.18mm 4.2mm 0.8mm
