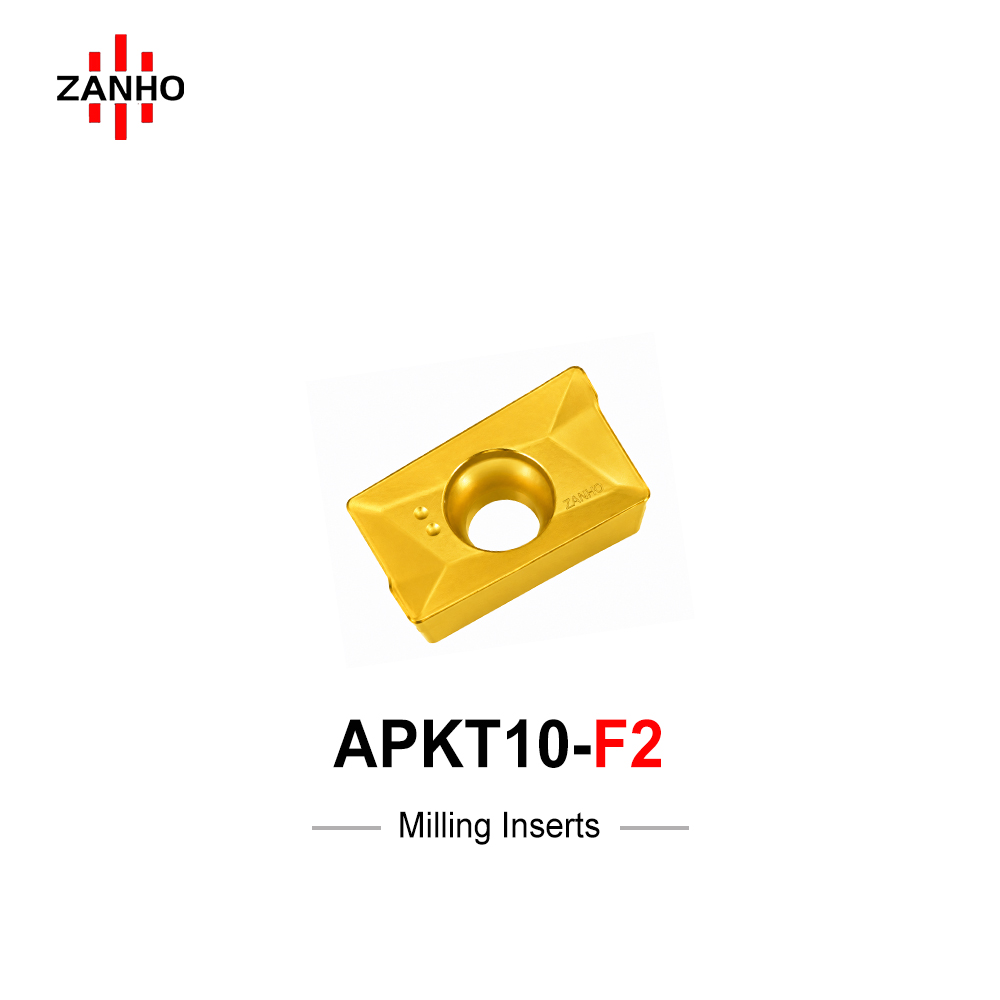

APKT1003PDR-F2

ZANHO APKT1003PDR-F2 is a high-precision positive rake milling insert designed for 90° shoulder milling. It enables one-pass machining of side walls and bottom surfaces with superior accuracy. The F2 chipbreaker optimizes the rake structure to significantly reduce cutting loads while maintaining robust edge strength, ensuring stable chip breaking and smooth evacuation during high-productivity machining.
Categories:
Learn More
Download PDF
Description

Core Performance Features

  • True 90° Shoulder Milling: Engineered for high-accuracy shoulder milling, achieving side wall and bottom surface molding in a single, efficient pass.
  • F2 Load-Reduction Geometry: The specialized F2 chipbreaker optimizes the rake structure, lowering cutting resistance and heat while preserving fundamental edge strength.
  • Stable Chip Evacuation: The refined chipbreaker cavity constrains the chip curling path, facilitating consistent chip breaking and reliable discharge.
  • Light Cutting Action: Large positive rake design suppresses vibrations, ensuring high surface quality on the workpiece.

Specifications (mm)

Model Edge Length (L) Thickness (S) Hole (d) Radius (r)
APKT1003PDR-F2 10.00 3.18 2.80 0.8

Efficiency and Precision in Every Pass

ZANHO APKT series is the professional choice for high-volume shoulder milling. Inquire now for technical integration and bulk B2B pricing.
