APKT1604PDER-MA

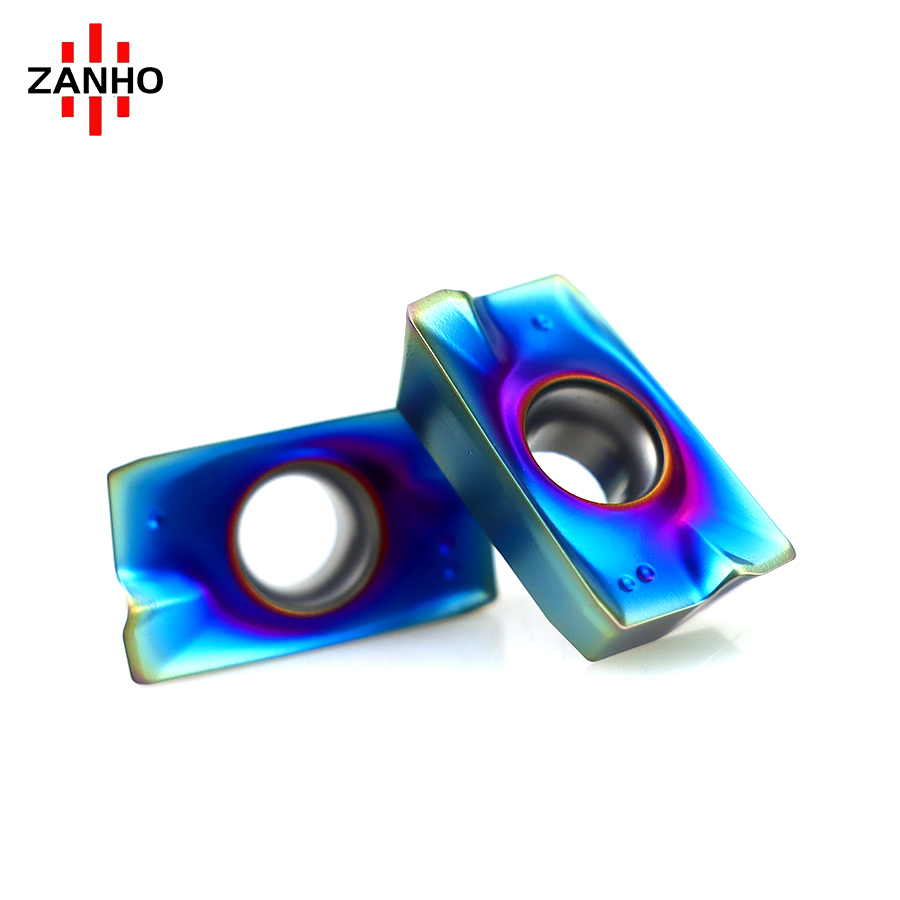

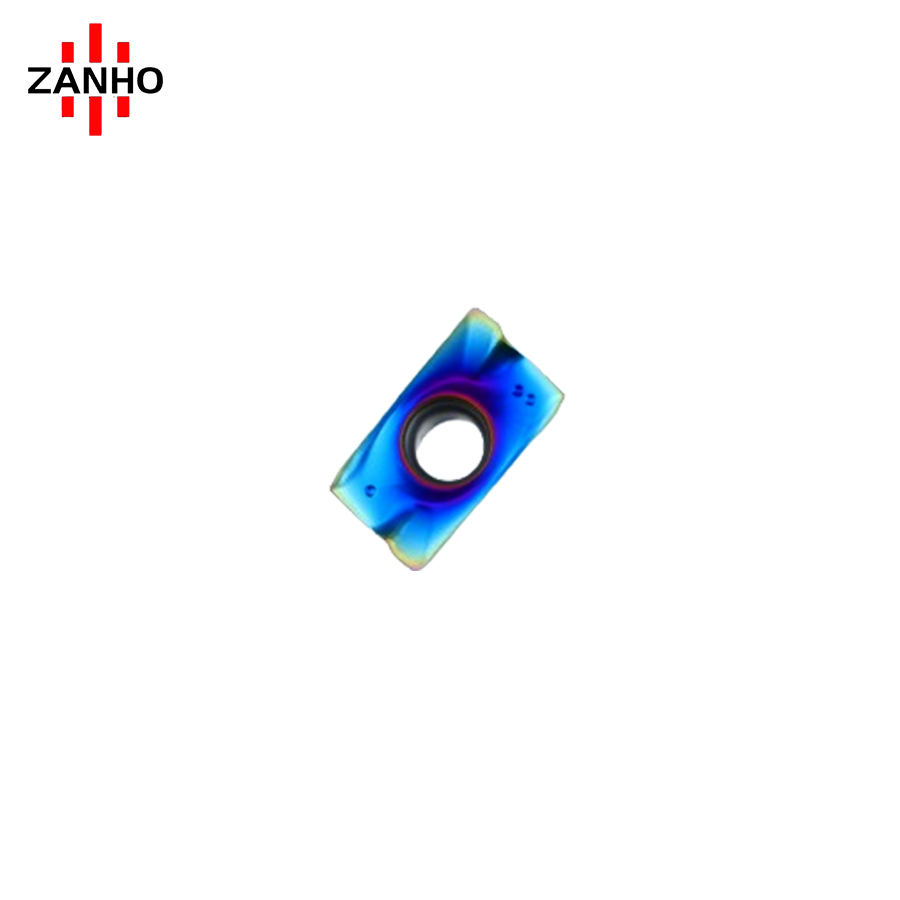

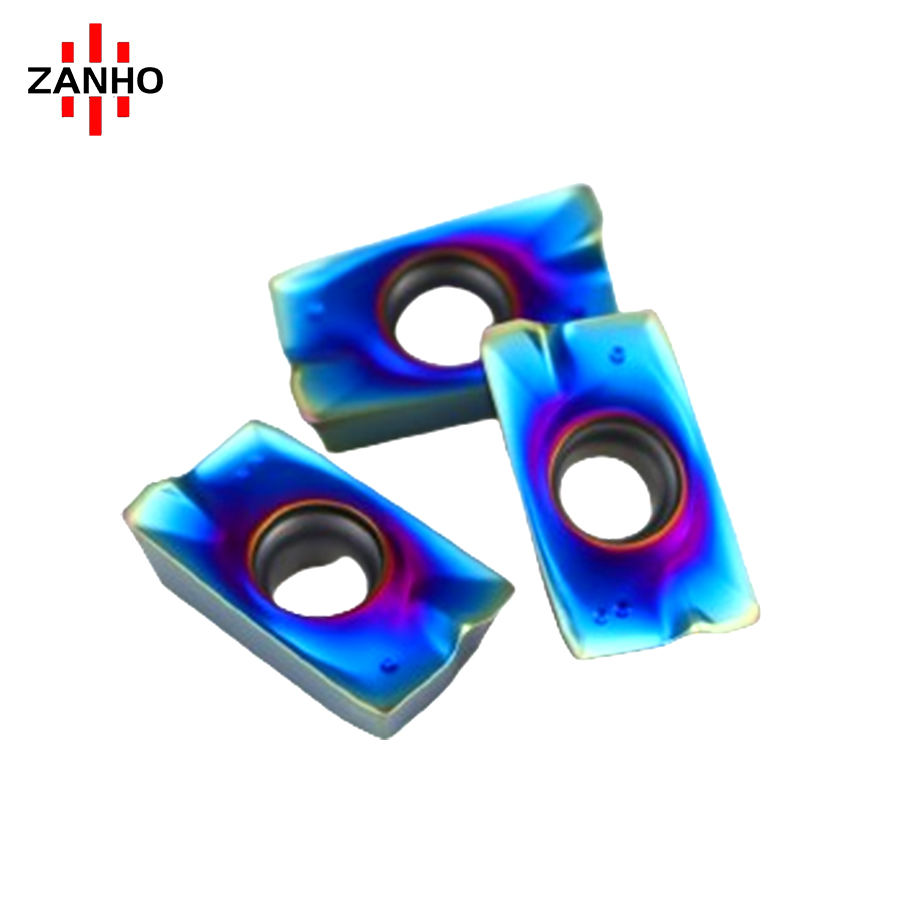

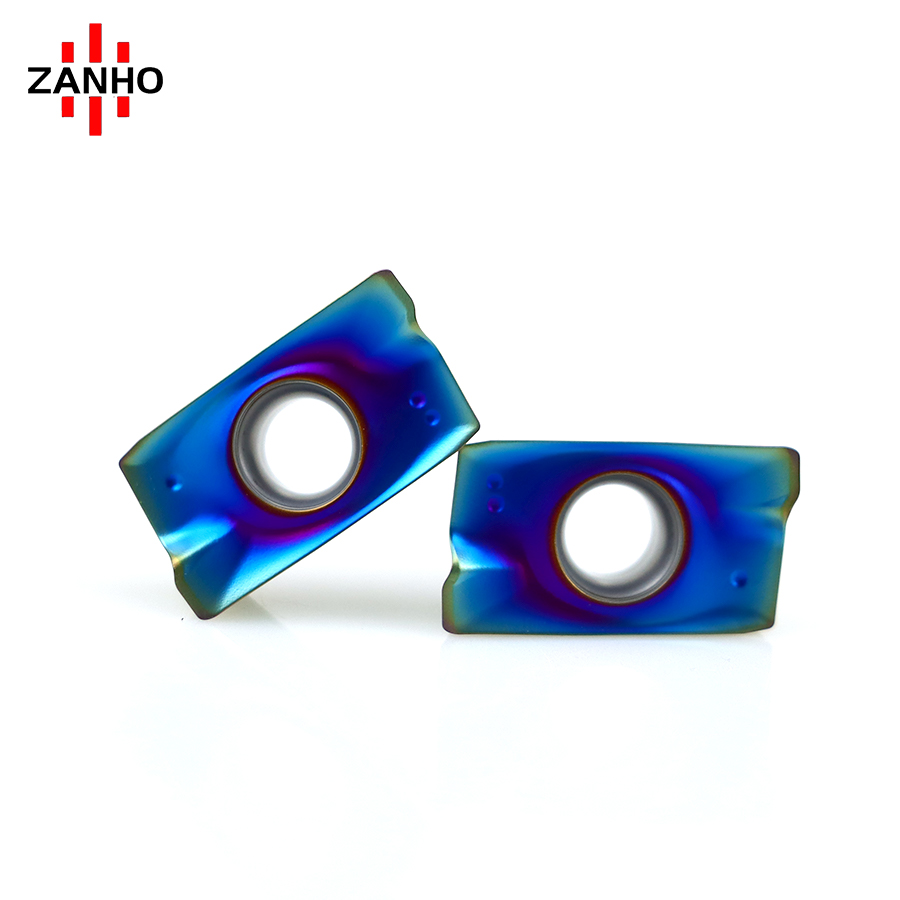

ZANHO APKT1604PDER-MA series: High-precision square shoulder milling inserts optimized for aluminum and non-ferrous alloys. Featuring a large positive rake geometry and an integrated wiper edge structure, these inserts ensure light cutting action and exceptional surface quality on both side walls and floors. The buffed mirror rake face prevents chip adhesion, delivering superior efficiency in semi-finishing and finishing of step faces.

Categories: Aluminum Inserts

Technical Advantages

Large Positive Rake Geometry: Minimizes cutting resistance and ensures light, fast cutting action with reduced power load.
Mirror-Polished Rake Face: Specifically treated surface prevents aluminum welding and chip adhesion, facilitating smooth evacuation.
Integrated Wiper Structure: Specifically designed edge geometry significantly improves the surface quality of machined side walls and step faces.
Open Type Chipbreaker: Ensures smooth chip formation and curling, maintaining stable performance in high-speed milling.
Micro-Honed Cutting Edge: Enhances edge stability and resistance to fracture while maintaining extreme sharpness.
Optimized for Finishing: Ideal for high-precision semi-finishing and finishing operations on all non-ferrous materials.

APKT1604PDER-MA Dimensions (ISO Standard)

Model	Edge Length (mm)	Thickness S (mm)	Bore D (mm)	Radius R (mm)
APKT1604PDER-MA	16.0	4.76	5.5	0.8
