APKT1604PDR-76

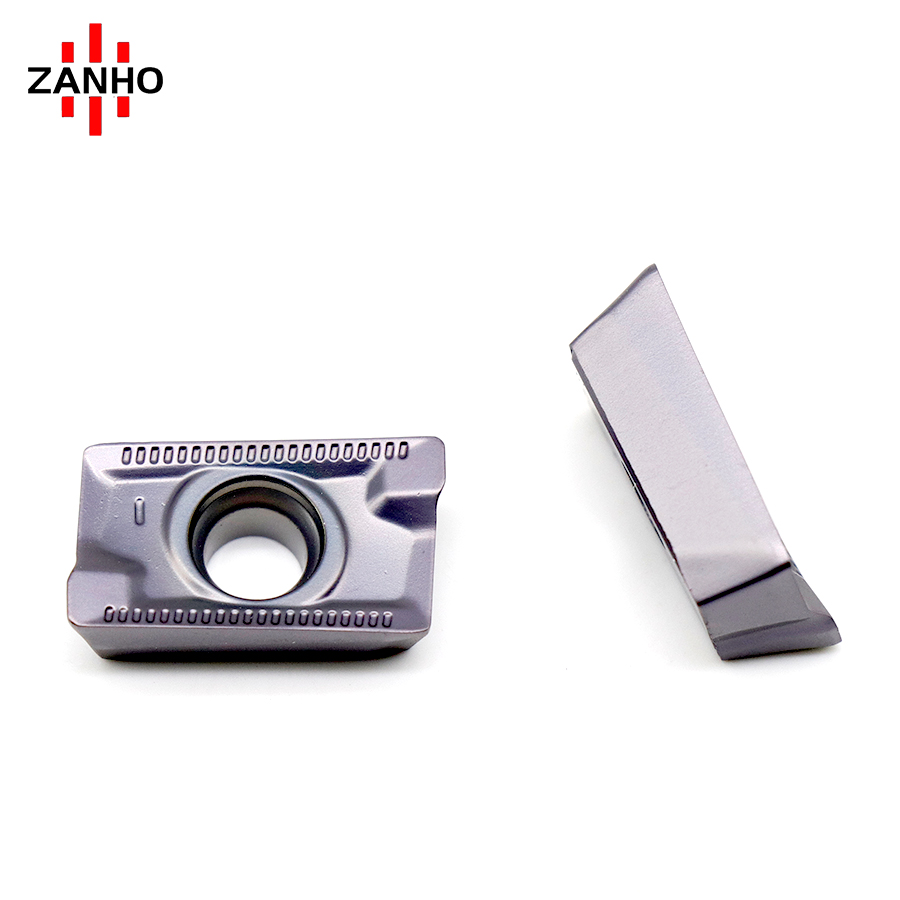

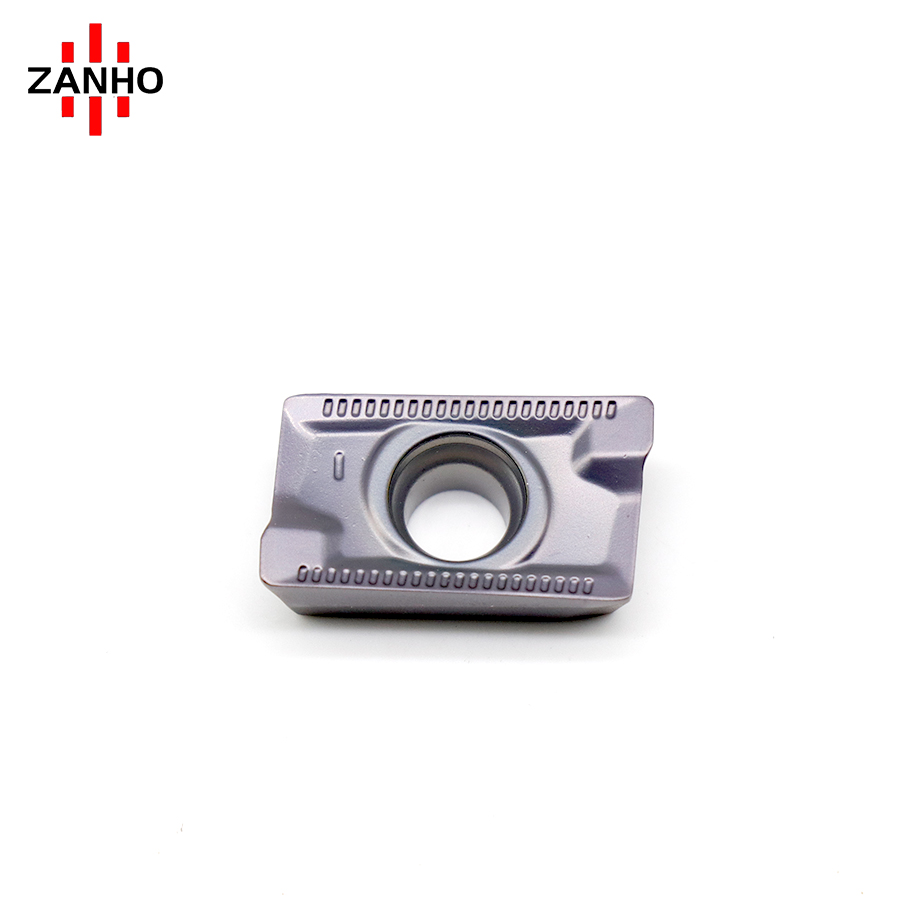

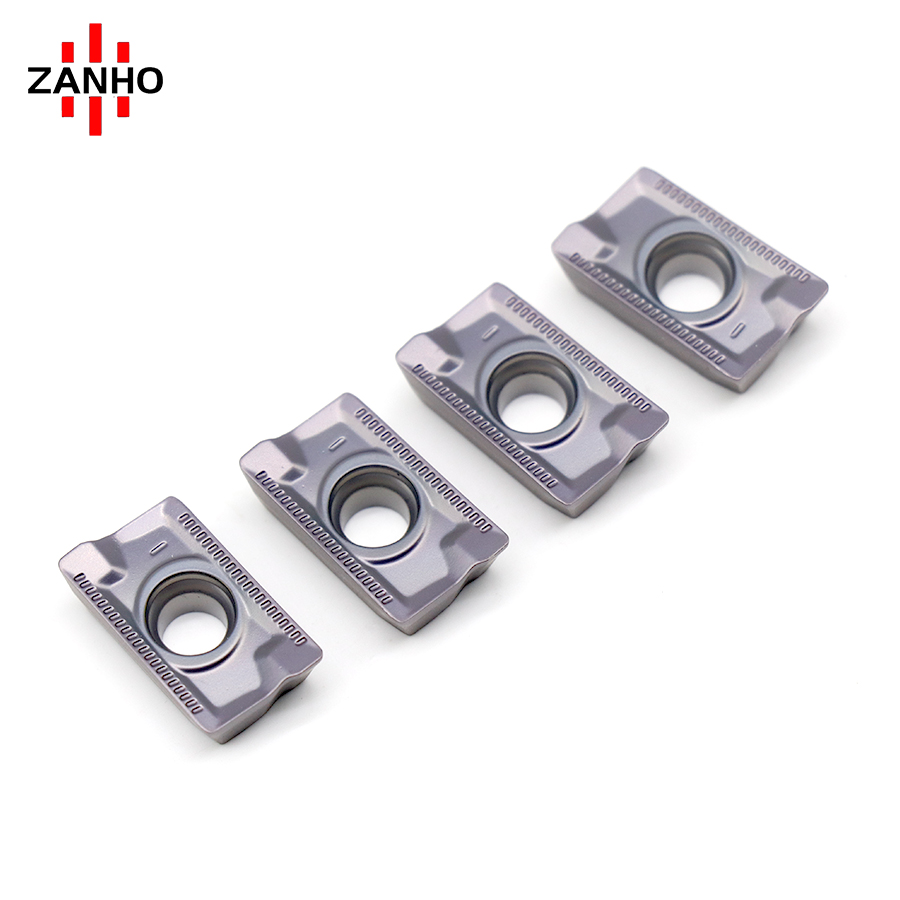

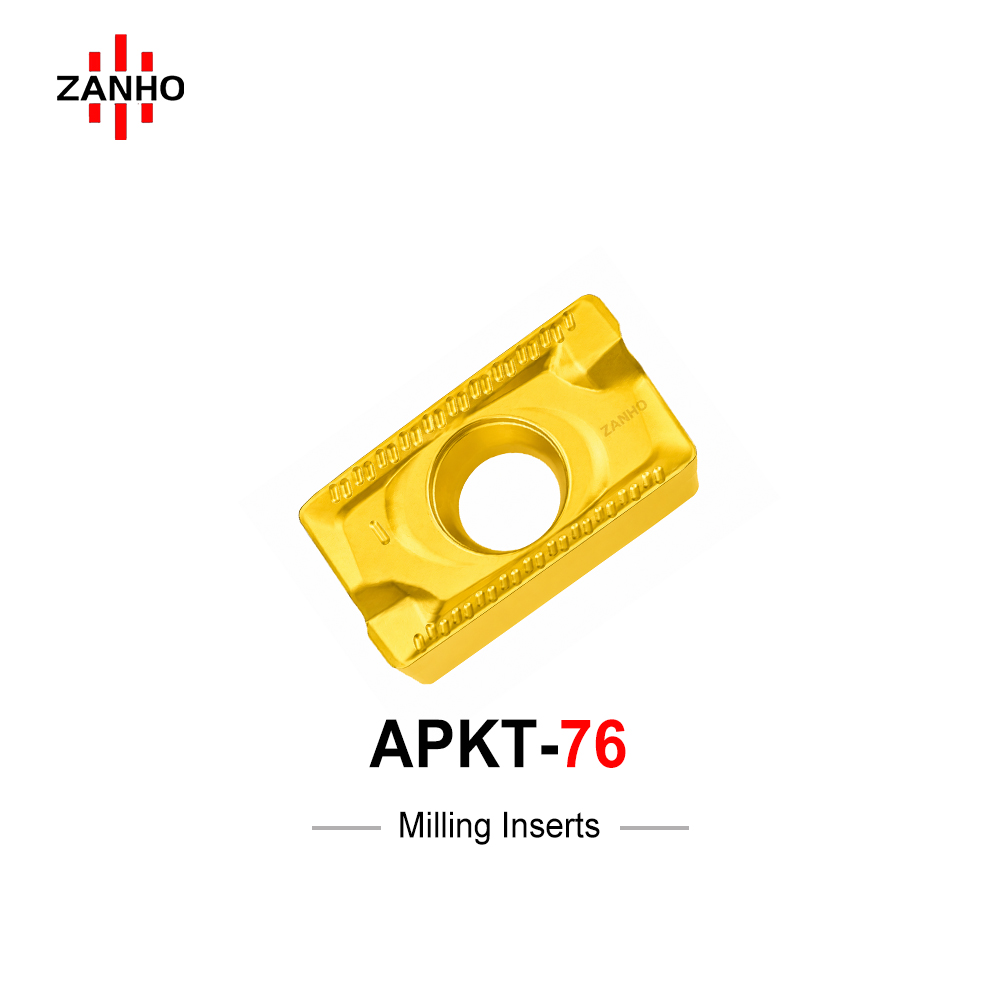

ZANHO APKT1604PDR-76 is a high-performance positive rake milling insert engineered for 90° shoulder milling. The specialized -76 chipbreaker provides a perfect balance between cutting edge strength and reduced load, ensuring stable chip formation and evacuation. With its large positive rake design, it effectively suppresses vibrations and excels in interrupted cutting conditions due to its reinforced, honed edges.
Categories:
Learn More
Download PDF
Description

Core Performance Features

  • True 90° Milling: Optimized for high-precision shoulder milling, completing side walls and bottom surfaces in a single, efficient pass.
  • Balanced -76 Geometry: The unique chipbreaker profile maintains structural edge strength while significantly lowering cutting loads for smoother machining.
  • Vibration Suppression: Large positive rake angle reduces cutting resistance, suppressing chattering and ensuring superior surface finish.
  • Stable Chip Control: Refined chipbreaker contours constrain chip curling, achieving consistent breaking and rapid evacuation.
  • Impact Durability: Honed cutting edges enhance resistance to chipping, making it highly reliable for demanding interrupted cutting tasks.

Specifications (mm)

Model Eff. Length Thickness (S) Hole (d) Radius (r)
APKT1604PDR-76 16.00 4.00 4.40 0.8

Precision Shoulder Milling at Peak Efficiency

ZANHO APKT series provides professional tooling solutions for volume machining. Contact us for bulk B2B inquiry and holder compatibility.

Looking for the right specification, grade, or coating for your market?

Send us your requirements below. Our sales team will provide product recommendations, competitive pricing, and OEM options based on your needs. For distributors, wholesalers & importers — bulk order inquiries are welcome.

Fill in the form below and get your quotation.
