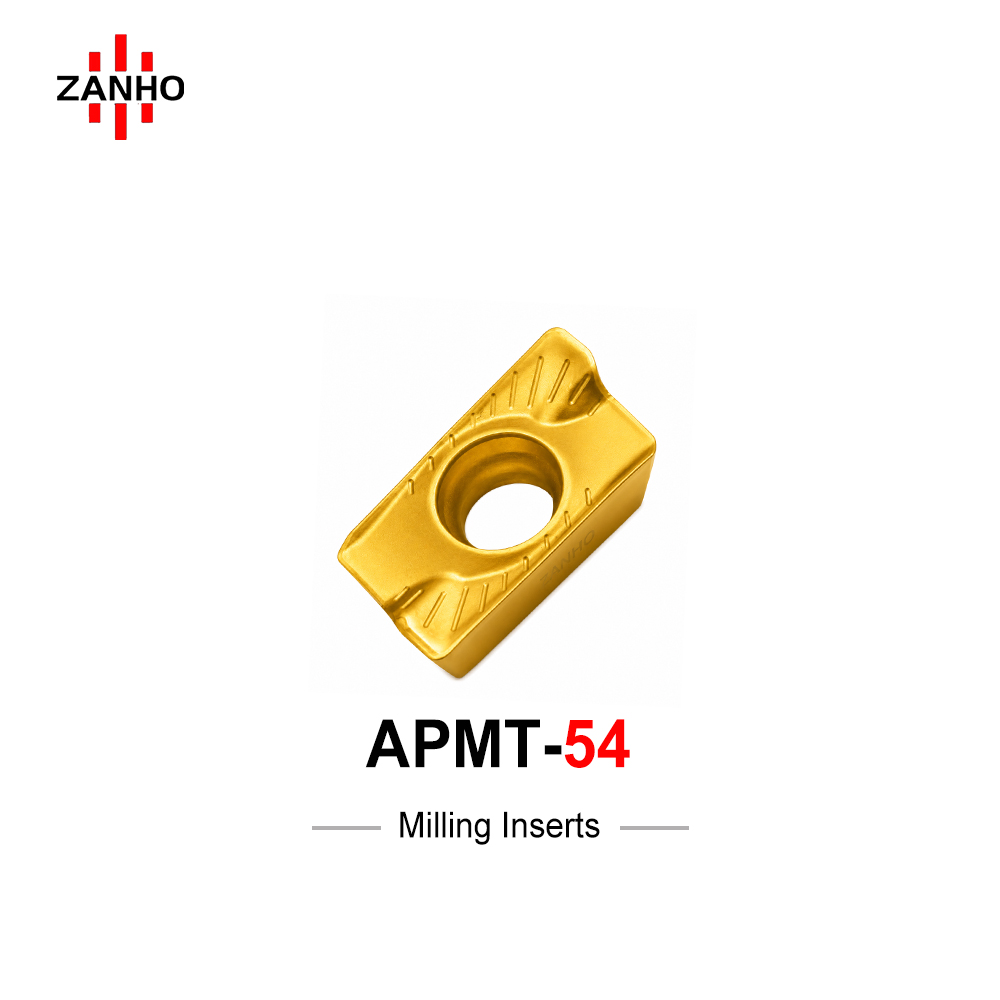

PMT11/16-54 | Upgraded 90° Square Shoulder Insert

ZANHO APMT-54 series: Upgraded 90° square shoulder milling insert. Featuring diagonal segmented chip-breaking ribs, it resolves chip wrapping and instability issues common in medium feed operations. Retaining a large-volume flute for non-clogging evacuation, it is the optimized choice for steel roughing, face milling, and cavity operations under both continuous and interrupted conditions.

Categories: A Type Milling Inserts

Download PDF

Technical Advantages

Advanced 54 Chipbreaker: An evolutionary upgrade of the DL series, specifically engineered to eliminate chip wrapping and instability during medium feed milling.
Diagonal Segmented Ribs: Multiple sets of diagonal ribs guide and force chip curling, significantly broadening the stable chip-breaking feed window.
Open Large-Volume Flute: Retains the superior evacuation capability of the DL design, preventing chip accumulation during heavy-duty material removal.
Integrated Wiper (BS): Precision BS wiper edge ensures enhanced surface finishes in face milling, reducing secondary finishing requirements.
Edge Toughness: Honed cutting edges with high positive rake provide a balanced combination of low cutting resistance and durability against oxide scale.

Technical Specifications (mm)

Model Type	Length (L)	Width (W)	APMAX	Radius (R)	Thickness (S)	Wiper (Bs)	Hole (d)
APMT 1135PDER-54	10.90	6.25	9.5	0.8	3.5	1.0	2.8
APMT 1604PDER-54	16.45	9.31	14.8	-	5.26	1.4	4.46

Enhanced Chip Control for Stable Machining

ZANHO APMT-54 series provides a reliable upgrade for high-efficiency steel milling. Contact us for bulk inquiry and holder compatibility.
