APK-XM

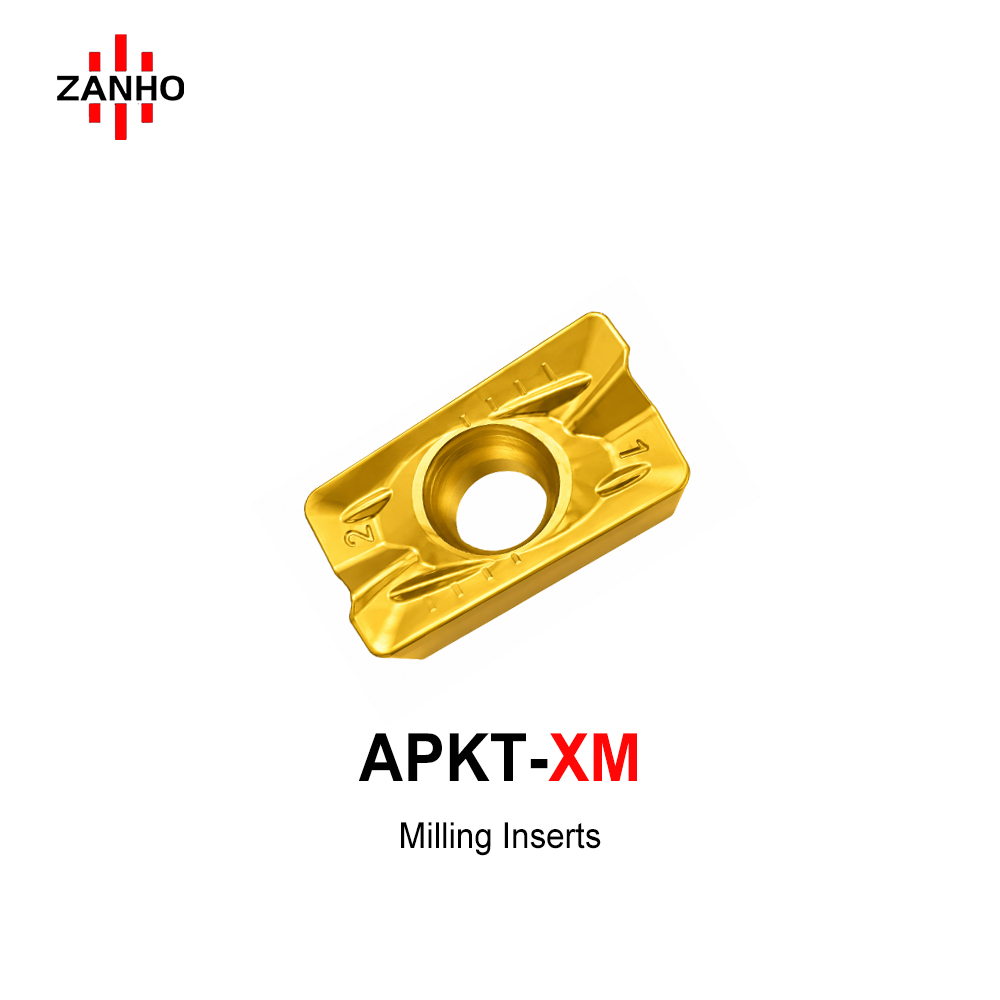

ZANHO APKT-XM series: High-performance square shoulder milling inserts designed for both roughing and semi-finishing applications. Featuring a reinforced cutting edge for superior impact resistance during interrupted cutting and a multi-stage chipbreaker for wide-range chip control. The integrated wiper edge ensures excellent sidewall surface quality, making it ideal for square shoulder and step face machining in steel and stainless steel.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • Reinforced Edge Structure: Specifically treated cutting edges provide exceptional resistance to chipping and thermal cracking, ideal for heavy-duty and interrupted cutting.
  • Multi-Stage Chipbreaker: Optimizes chip curling and evacuation across a wide range of cutting depths and feed rates, bridging the gap between roughing and semi-finishing.
  • Medium Rake Geometry: Perfectly balances high cutting edge strength with reduced cutting forces for stable machining.
  • Integrated Wiper Edge: The specialized wiper geometry at the corner ensures superior surface finish on the vertical sidewalls.
  • Versatile Application: Highly effective for square shoulder milling, step face milling, and profiling in steel, alloy steel, and stainless steel workpieces.

APKT-XM Dimensions (ISO Standard)

Model Edge Length L (mm) Thickness S (mm) Bore D (mm) Radius R (mm)
APKT1604PDER-XM 17.44mm 5.2mm 4.4mm 0.8mm
APKT1135PDER-XM 11.25mm 3.5mm 2.8mm 0.8mm
