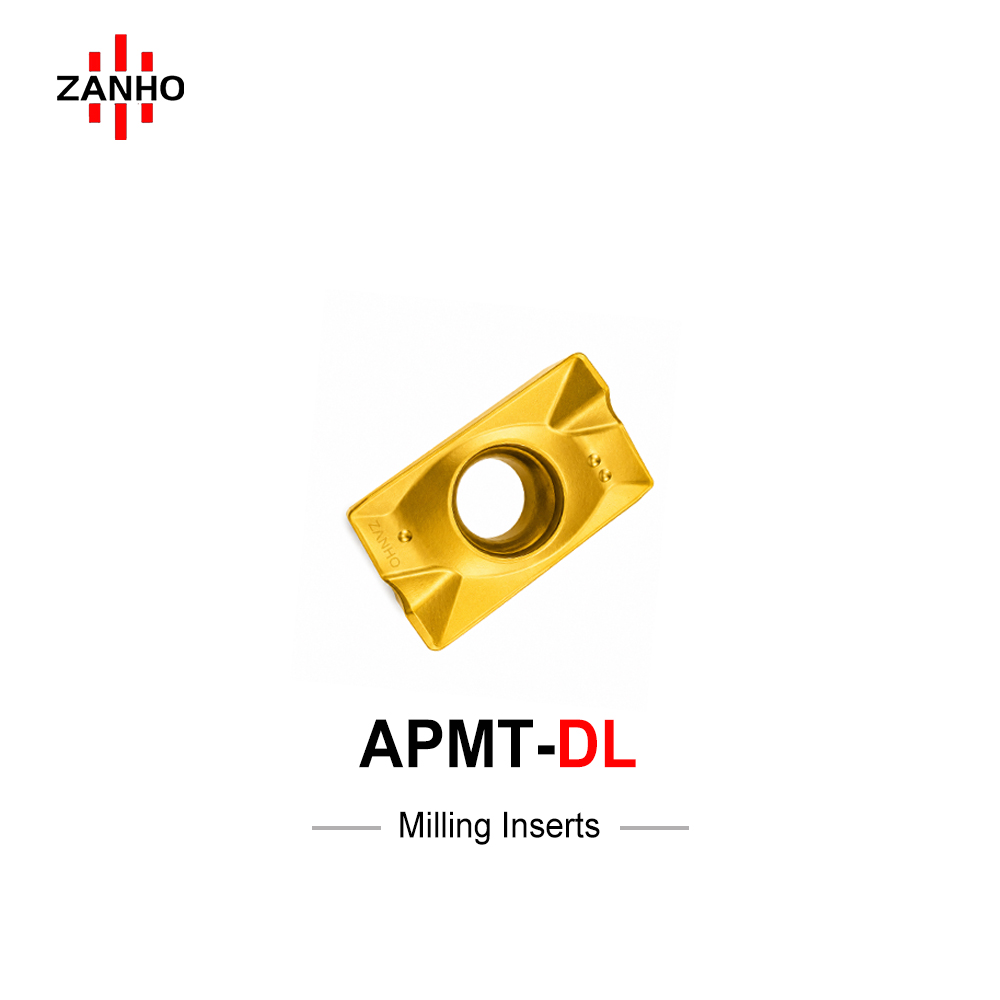

APMT-DL

ZANHO APMT-DL series: Single-sided 90° square shoulder milling insert featuring the DL general-purpose chipbreaker. Engineered with a positive rake and open chip flute, it balances edge strength with light cutting action. Ideal for roughing and semi-finishing in face, step, and cavity operations, even through hard oxide skin and scale.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • 90° Square Shoulder: Optimized geometry for precise vertical wall milling, step milling, and high-efficiency face roughing.
  • DL Chipbreaker: Open, large-volume flute design ensures stable chip curling and reliable evacuation during medium-to-large depth milling.
  • Positive Rake Design: High-performance positive rake reduces cutting resistance, protecting the machine spindle and suppressing vibration.
  • Edge Toughness: Honed cutting edges provide superior durability against impact and hard oxide skin during interrupted cuts.
  • Universal Material Range: Reliably processes Carbon Steel, Alloy Steel, Mold Steel, Cast Iron, and specific Stainless Steel grades.

Technical Specifications (mm)

Model Type Length (L) Width (W) APMAX Radius (R) Thickness (S) Wiper (Bs) Hole (d)
APMT 1135PDER-DL 11.27 6.24 9.5 0.8 3.5 1.0 2.8
APMT 1604PDER-DL 17.35 9.33 14.8 - 5.26 1.4 4.46

Reliable Versatility for High-Efficiency Roughing

ZANHO APMT-DL series provides balanced performance for CNC machining. Contact us for bulk inquiry and holder compatibility.
