APMT-M2

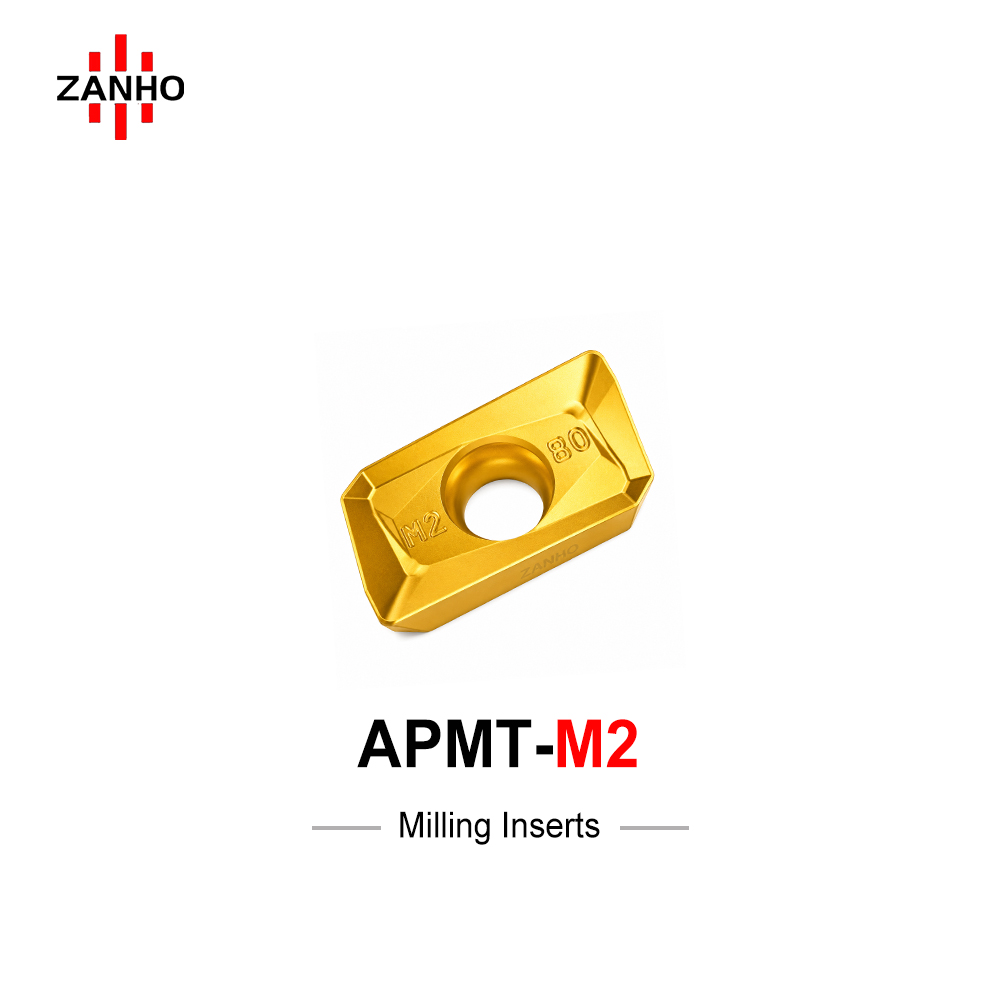

ZANHO APMT-M2 series: Single-sided 90° square shoulder milling insert with reinforced M2 chipbreaker. Engineered for medium-to-large feed rates, balancing chip evacuation space with high edge strength. Ideal for heavy roughing, cavity opening, and ramping in materials with hard oxide skin or scale.

Categories: A Type Milling Inserts

Technical Advantages

Reinforced M2 Chipbreaker: Specifically developed for medium-to-heavy roughing with high feed-per-tooth, ensuring maximum edge toughness against impact.
90° Square Shoulder: Optimized geometry for precision vertical wall milling, step milling, and high-efficiency face roughing.
Positive Rake Design: Balanced rake angle reduces cutting resistance while maintaining a robust cross-section for stable material removal.
Scale & Oxide Capability: Honed cutting edges provide superior durability when machining forgings and castings with hard external scale.
Integrated Wiper (BS): Precision wiper edge delivers improved surface quality in face milling operations, reducing post-processing needs.

Technical Specifications (mm)

Model Type	Length (L)	Width (W)	APMAX	Radius (R)	Thickness (S)	Wiper (Bs)	Hole (d)
APMT 1135PDER-M2	10.82	6.23	9.5	0.8	3.50	0.8	2.84
APMT 1604PDER-M2	16.30	9.21	14.0	0.8	4.76	1.4	4.46

Superior Durability for High-Load Milling

ZANHO APMT-M2 series delivers industrial strength for high-efficiency CNC operations. Contact us for bulk B2B inquiry and wholesale pricing.
