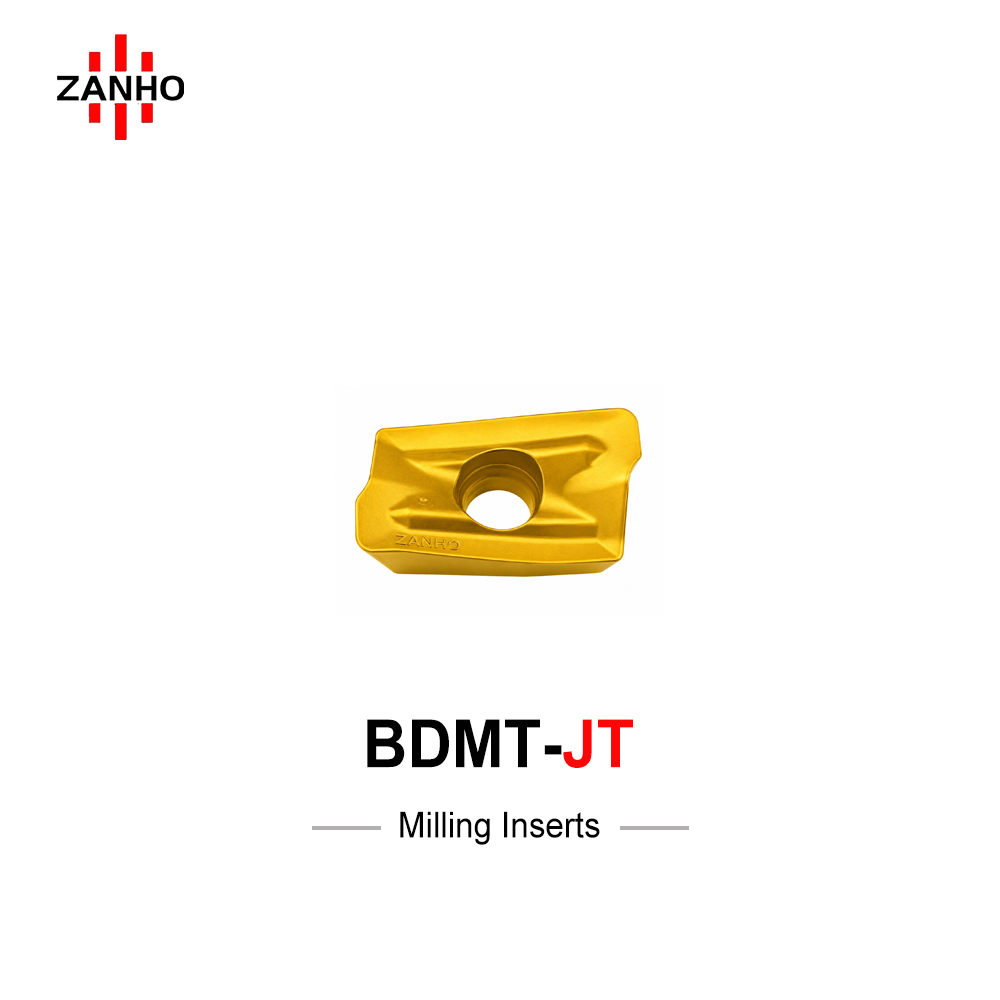

BDMT-JT

ZANHO BDMT-JT series is a high-performance milling solution designed for 90° square shoulder and face milling, compatible with MEC series cutters. Optimized for Steel, Stainless Steel, and Mold Steel, the specialized JT chipbreaker delivers exceptional chip control in gummy materials. Featuring a helical cutting edge to reduce resistance and suppress vibration, these inserts support diverse operations including ramping and helical interpolation, ensuring a perfect balance between edge strength and superior side-wall surface quality.
Categories:
Learn More
Download PDF
Description

Key Technical Advantages

  • Low-Resistance Helical Edge: The helical geometry minimizes cutting force and suppresses vibrations, enhancing stability in high-efficiency shoulder milling.
  • Optimized JT Chipbreaker: Specifically designed for Steel and Stainless Steel, providing stable chip fragmentation even in medium-load conditions.
  • Versatile Machining Capabilities: Supports a wide range of processes including 90° shoulder milling, face milling, ramping, and helical interpolation.
  • Superior Wall Squareness: Engineered to maintain high vertical accuracy and excellent side-wall surface finish during step milling.
  • Compatible with MEC Cutters: A cost-effective B2B alternative for MEC tool holders, ensuring seamless installation and reliable tool life.

Dimensional Specifications (mm)

Model W1 (mm) S (Thickness) D1 (Hole Dia) L (Length) RE (Radius)
BDMT070304ER-JT 9.5 3.18 4.4 17.0 0.4
BDMT070308ER-JT 9.5 3.18 4.4 17.0 0.8
BDMT11T308ER-JT 11.2 3.80 4.4 17.0 0.8
BDMT11T316ER-JT 11.2 3.80 4.4 17.0 1.6
BDMT170408ER-JT 14.5 4.88 6.0 22.0 0.8

Precision Tooling for High-Efficiency Milling

ZANHO BDMT-JT series delivers stability and cost-efficiency for industrial milling. Contact us for bulk B2B inquiry and material grade recommendations.
