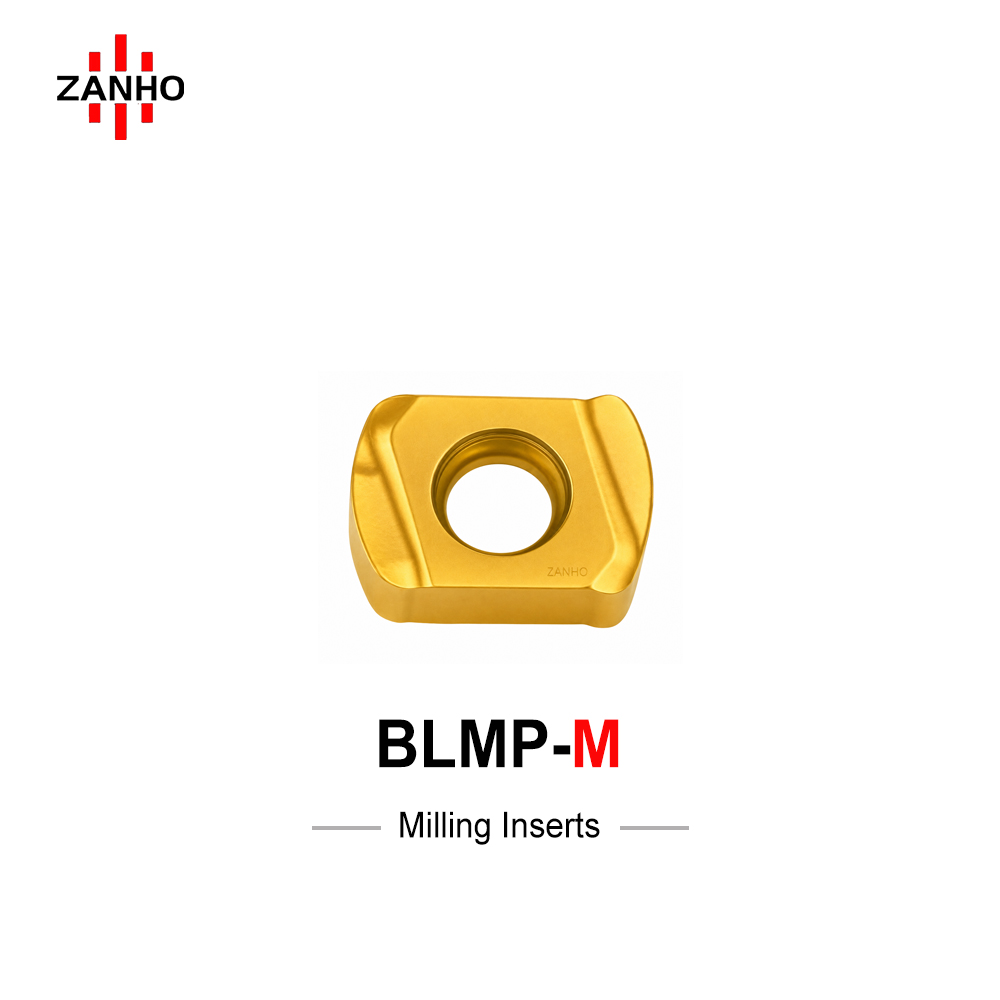

BLMP-M

ZANHO BLMP-M series is a high-performance double-sided 4-edge milling solution engineered for high-feed roughing. The universal M chipbreaker balances superior edge strength with light-cutting action, making it ideal for small-to-medium machining centers. Optimized for Steel, Stainless Steel, and Cast Iron, these inserts achieve exceptional metal removal rates through small depths of cut and high feed-per-tooth. Perfectly suited for face milling, pocket roughing, ramping, and helical interpolation, the BLMP-M ensures stable performance and maximum economic value.
Categories:
Learn More
Download PDF
Description

Key Technical Advantages

  • Double-Sided 4-Edge Economy: Provides four high-precision cutting edges per insert, delivering exceptional economic efficiency for large-scale manufacturing.
  • Universal M Chipbreaker: A versatile geometry designed for low cutting resistance and stable chip fragmentation across varied industrial materials.
  • High-Feed Productivity: Engineered for small axial depths with high feed rates, maximizing metal removal while reducing thermal load on the spindle.
  • Process Security: Optimized edge toughness effectively resists fracture during continuous and light-interrupted roughing operations.
  • Versatile Milling Capabilities: Ideal for mold cavity roughing, high-speed face milling, plunging, and complex helical interpolation.

Insert Dimensional Specifications (mm)

Model L (Length) W (Width) d (IC) S (Thickness) t (Total H) Edges
BLMP 0603R-M 9.0 6.34 3.15 3.4 3.8 4
BLMP 0904R-M 11.93 9.18 4.15 4.1 4.6 4
BLMP 1105R-M 14.6 11.1 5.5 5.75 6.5

Recommended Tool Holders & Milling Cutters

Insert Series End Mill Holder Face Milling Cutter Main Application
BLMP 0603 Series C2F-BL06 Series TFMBL-R-06 Series Profiling & Ramping
BLMP 0904 Series C2F-BL09 Series TFMBL-R-09 Series Heavy Roughing

Upgrade Your Milling Efficiency

ZANHO BLMP series inserts deliver stability and cost-savings for industrial CNC machining. Contact us for bulk B2B pricing and material grade selections.
