BLMP-ML

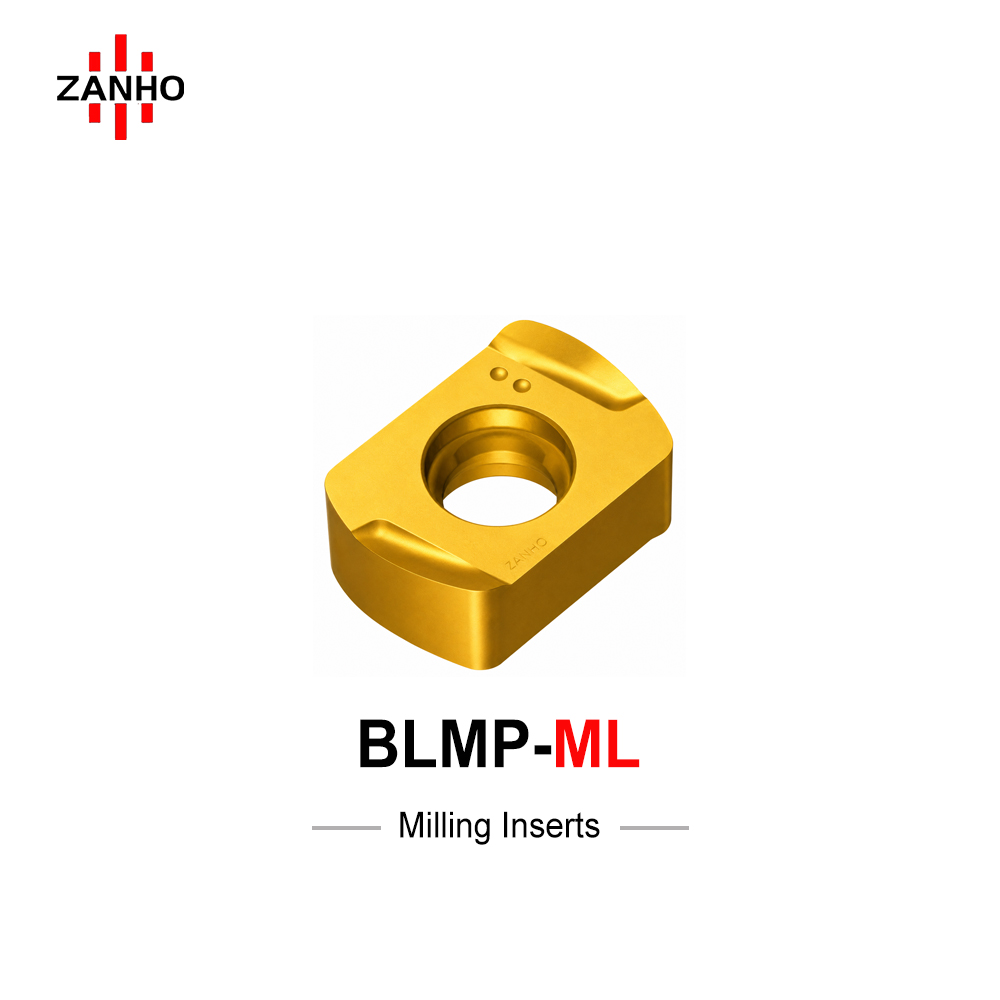

ZANHO BLMP1105R-ML is a high-performance double-sided 4-edge milling insert specifically engineered for Titanium and High-Temperature Alloys. Featuring the sharp ML chipbreaker with a large positive rake, it significantly reduces cutting forces and heat generation, making it ideal for machines with limited rigidity. Designed for high-feed roughing with a maximum 1.5mm depth of cut, it ensures stable performance in pocketing, face milling, and helical interpolation, effectively extending tool life in difficult-to-machine materials.
Categories:
Learn More
Download PDF
Description

Key Technical Advantages

  • Specialized for Difficult Materials: Optimized for high-efficiency roughing in Titanium Alloys and Heat-Resistant Super Alloys (HRSA), balancing sharpness with edge toughness.
  • Ultra-Sharp ML Geometry: Large positive rake angle reduces torque and thermal load, preventing work-hardening and protecting the machine spindle.
  • Superior Vibration Dampening: Specifically designed to suppress harmonic vibrations even in setups with large overhangs or standard rigidity.
  • High Volume Metal Removal: Supports a maximum axial depth (ap) of 1.5mm combined with high feed rates, maximizing productivity in aerospace and medical parts.
  • Double-Sided 4-Edge Economy: Provides four high-precision cutting edges per insert, delivering stable performance and lower cost-per-part for B2B buyers.

Insert Dimensional Specifications (mm)

Model L (Length) W (Width) d (Hole Dia) s (Thickness) t (Total H) Max ap
BLMP 1105R-ML 14.6 11.1 5.5 5.75 6.5 1.5 mm

Recommended Tool Holders

Compatible Tool Series Series Operations
Milling Cutter Body BLMP11 Series Face Milling / Pocketing
End Mill Shank C-BLMP11 Series Ramping / Interpolation

Master Titanium & Alloy Machining

ZANHO BLMP-ML series provides the ultimate stability for high-feed applications in difficult materials. Contact us for wholesale pricing and material grade selection.
