BLMP-ZM

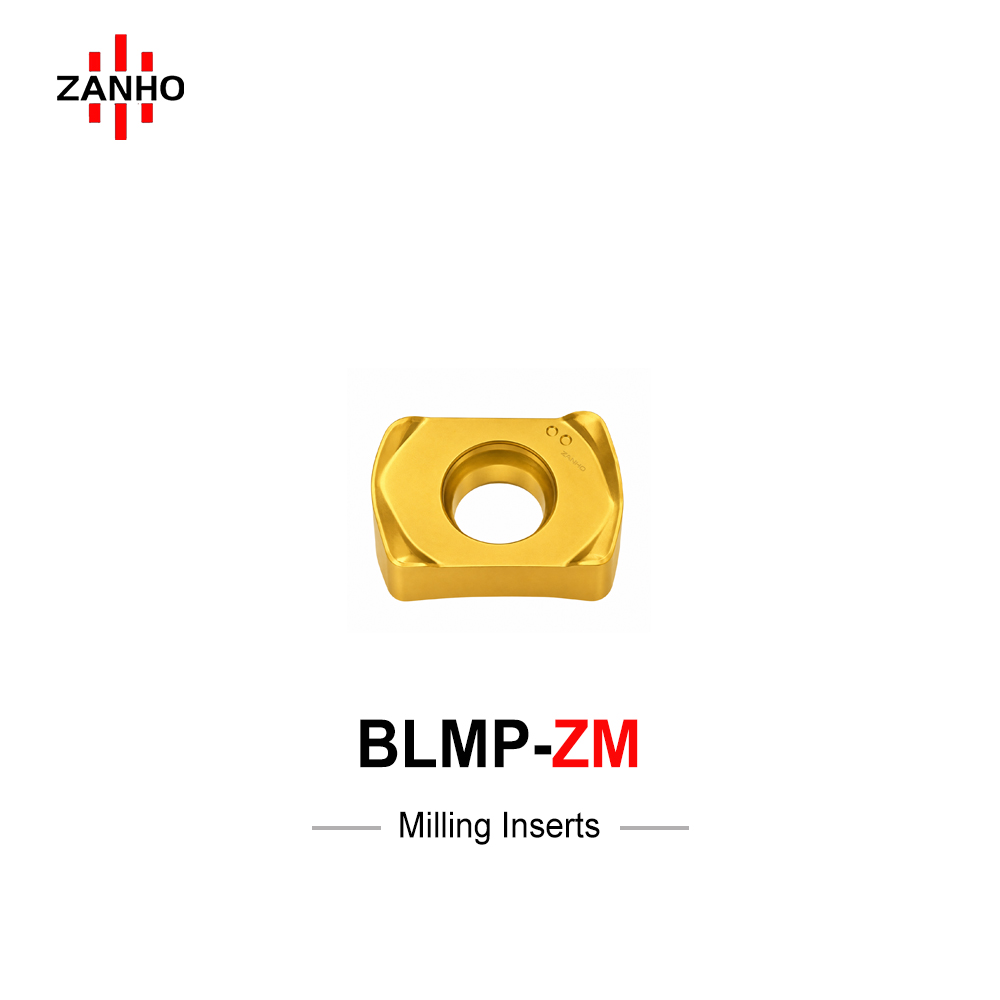

ZANHO BLMP0603R-ZM is a high-efficiency double-sided 4-edge milling insert designed for specialized high-feed machining. Featuring the universal ZM chipbreaker, it delivers exceptionally low cutting resistance and superior anti-vibration performance, making it perfect for low-power machines. Optimized for Steel, Stainless Steel, Cast Iron, and High-Temp Alloys, this insert excels in small-depth, high-feed-per-tooth operations such as pocket roughing, ramping, and helical interpolation. The double-point positioning marks ensure high indexing accuracy and process stability.
Categories:
Learn More
Download PDF
Description

Key Technical Advantages

  • 4-Edge High Economy: The double-sided structure provides four usable cutting corners, significantly reducing the cost-per-component in high-volume production.
  • ZM Universal Chipbreaker: Engineered for low cutting resistance and enhanced vibration dampening, ensuring stable performance even on machines with standard rigidity.
  • High-Feed Geometry: Optimized for small axial depth of cut (APMX 1.0mm) combined with high table feeds, maximizing metal removal rates in pocketing and face milling.
  • Multi-Material Stability: Reinforced edge structure balances toughness and sharpness, delivering reliable chip evacuation in Steel, Stainless Steel, and Cast Iron.
  • Stable Positioning: Integrated double-point positioning marks allow for precise tool indexing and consistent machining accuracy.

Insert Dimensional Specifications (mm)

Model INSL (Length) W1 (Width) S (Thickness) APMX (Max Ap) RE (Radius) Edges
BLMP0603R-ZM 9.00 6.39 3.73 1.0 1.0 4 (Double-sided)

Ready to Speed Up Your Production?

ZANHO BLMP series inserts provide the stability and high feed rates you need. Contact us for bulk B2B inquiry and technical machining guides.
