BLMP13-M

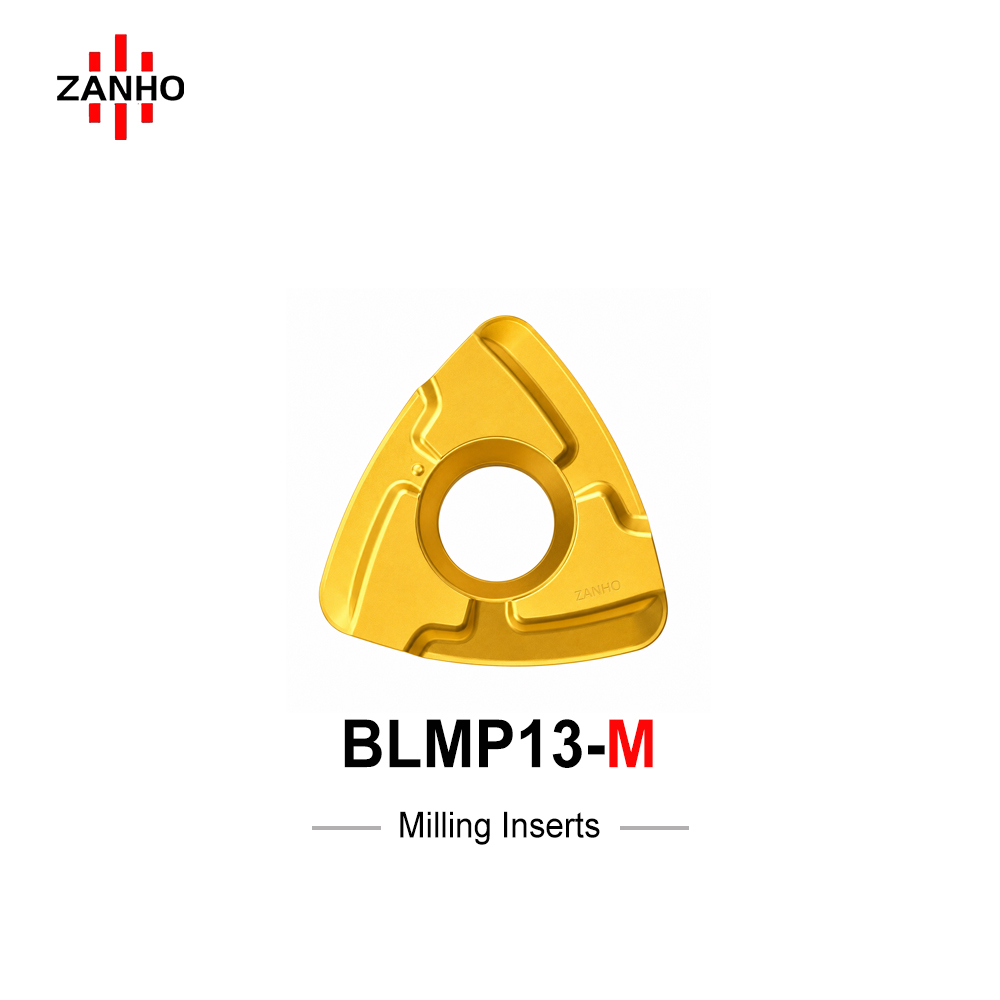

ZANHO BLMP 1306R-M is a large-format double-sided 4-edge milling insert engineered for heavy-duty high-feed roughing. Featuring a reinforced edge geometry and optimized M chipbreaker, it excels in high metal removal operations even under unstable conditions. With larger dimensions allowing for a higher depth of cut, it provides exceptional process security and economic value. Ideal for face milling, heavy pocketing, and helical interpolation in Steel and Cast Iron manufacturing.
Categories:
Learn More
Download PDF
Description

Key Technical Advantages

  • Heavy-Duty Edge Strength: Reinforced geometry specifically developed for large allowance removal, capable of handling high cutting loads and process fluctuations.
  • Maximum Metal Removal: Larger insert size permits a deeper axial cut (ap), significantly boosting productivity in massive roughing tasks.
  • Universal M-Chipbreaker: Optimized chip pocket ensures smooth chip flow and minimizes friction at the cutting zone, extending tool life in Steel and Iron.
  • Double-Sided 4-Edge Economy: High tool utilization with four precision cutting corners, drastically reducing the cost-per-edge for B2B wholesale buyers.
  • Multi-Process Versatility: Fully supports diverse 3D milling strategies including ramping, plunging, and high-speed helical interpolation.

Insert Dimensional Specifications (mm)

Model L (Length) D (IC) d (Hole Dia) S (Thickness) R (Radius) Edges
BLMP 1306R-M 14.84 12.3 5.4 6.2 0.8 4 (Double-sided)

Matching Tool Holders & Face Mill Cutters

Compatible Body Shank/Interface Type Diameter Range (mm)
BLMP13 Face Mill Arbor Mount 50 - 160 mm
BLMP13 End Mill Straight/Weldon Shank 32 - 40 mm

Handle Large Allowances with Ease

ZANHO BLMP 1306R-M is the ultimate tool for heavy metal removal. Contact us for bulk B2B pricing and material grade selection guides.
