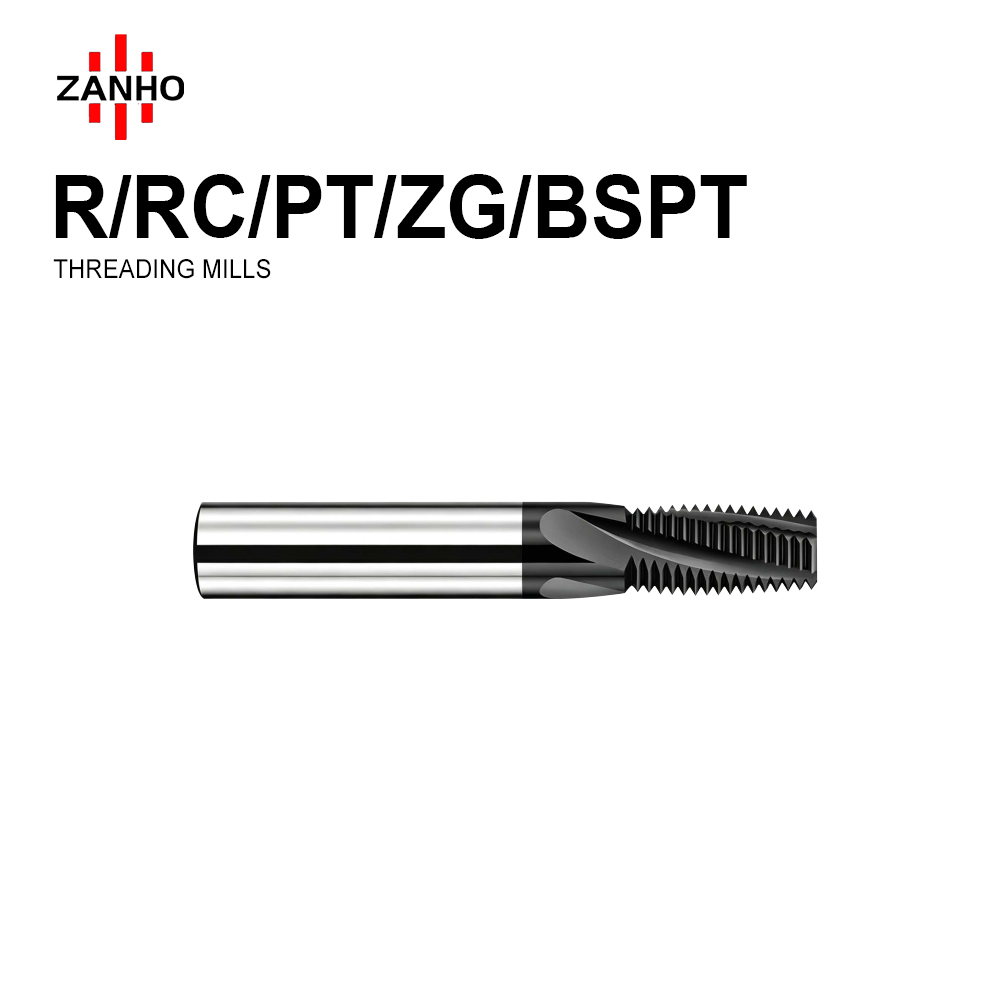

BSPT(RC) Taper Pipe Thread Mill

  • BSPT Taper Specialist: Specifically engineered for cutting high-quality BSPT (R, RC), PT, and ZG tapered pipe threads with a precise 55° thread angle.
  • Pressure-Tight Sealing: Optimized for producing leak-proof, pressure-resistant joints essential for industrial piping and hydraulic systems.
  • Wide Pipe Standard Coverage: Covering pipe sizes from RC1/16-28 up to RC1"-11 to meet all industrial fluid power requirements.
  • Robust Performance: Suitable for Carbon Steel, Stainless Steel, and Hardened Alloys, providing excellent tool life and superior surface finish.
Categories:
Learn More
Download PDF
Description

订货号 Order Number 规格 Specification 刀径 D 有效长 L1 柄径 D1 总长 L
TB100-RC0116028 RC1/16-28 5.8 12 6 60
TB100-RC0108028 RC1/8-28 7.95 15 8 65
TB100-RC0104019 RC1/4-19 9.95 20 10 75
TB100-RC0308019 RC3/8-19 11.9 20 12 75
TB100-RC12102014 RC1/2-14 11.9 25 12 75
TB100-RC0102014 RC1/2-14 15.9 30 16 100
TB100-RC120304014 RC3/4-14 11.9 25 12 75
TB100-RC0304014 RC3/4-14 15.9 30 16 100
TB100-RC16100011 RC1'-11 15.9 30 16 100
TB100-RC1000011 RC1'-11 19.9 35 20 100
