C**-SLCCR/L

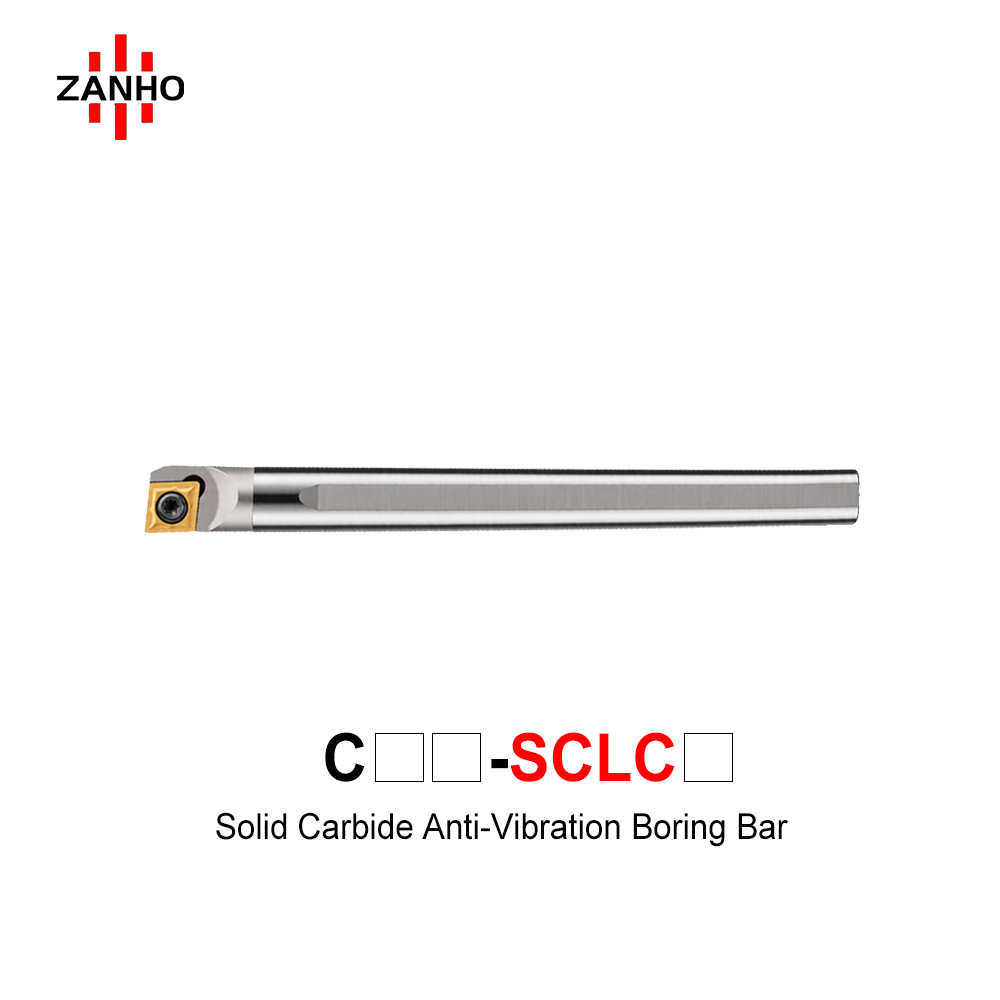

ZANHO C-SCLCR/L series: High-performance solid tungsten steel boring bars designed for precision internal turning. The solid carbide shank provides ultimate rigidity and anti-vibration properties, making it ideal for deep hole boring and small diameter applications. Compatible with standard CCMT/CCGT inserts, it ensures superior surface finish and dimensional accuracy in demanding CNC operations.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • Solid Tungsten Steel Shank: Provides maximum rigidity and effectively suppresses vibration during deep hole boring.
  • Small Diameter Specialization: Designed specifically for internal turning in small bores (starting from φ5mm).
  • High Precision Machining: Minimizes deflection to ensure tight tolerances and excellent surface smoothness.
  • Screw-Down Clamping: Simple and secure clamping system for standard CCMT/CCGT inserts.
  • Extended Tool Life: Reduces tool wear and risk of breakage through superior vibration dampening.

C-SCLCR/L Series Dimensions (mm)



Model Dimensions (mm) Accessories
Left Right Dmin φd L H f Insert Screw Wrench
C04H-SCLCL03 C04H-SCLCR03 5 4 100 3.7 2.5 CC□□0301□□ M1.6x4 T6
C05H-SCLCL03 C05H-SCLCR03 6 5 100 4.4 3
C06K-SCLCL03 C06K-SCLCR03 7 6 125 5.2 3.5
C05H-SCLCL04 C05H-SCLCR04 6 5 100 4.4 3 CC□□04T1□□ M2x4 T6
C06K-SCLCL04 C06K-SCLCR04 7 6 125 5.2 3.5
C07K-SCLCL04 C07K-SCLCR04 8 7 125 6.2 4
C08K-SCLCL04 C08K-SCLCR04 9 8 125 7 4.5
C10K-SCLCL04 C10K-SCLCR04 11 10 125 9 5.5
C06K-SCLCL06 C06K-SCLCR06 9 6 125 5.2 4.5 CC□□0602□□ M2.5x6 T8
C07K-SCLCL06 C07K-SCLCR06 9 7 125 6.2 4.5
C08K-SCLCL06 C08K-SCLCR06 10 8 125 7 4.6
C10K-SCLCL06 C10K-SCLCR06 12 10 125 9 5.6
C12M-SCLCL06 C12M-SCLCR06 14 12 150 11 7
C14N-SCLCL06 C14N-SCLCR06 16 14 160 13 8
C16Q-SCLCL06 C16Q-SCLCR06 18 16 180 14.8 9
C20R-SCLCL06 C20R-SCLCR06 23 20 200 18.6 11.5
C08K-SCLCL09 C08K-SCLCR09 13 8 125 7 7.5 CC□□09T3□□ M4x6 T15
C10K-SCLCL09 C10K-SCLCR09 13 10 125 9 7
C12M-SCLCL09 C12M-SCLCR09 14 12 150 11 7 M4x8
C14N-SCLCL09 C14N-SCLCR09 16 14 160 13 8.2
C16Q-SCLCL09 C16Q-SCLCR09 18 16 180 14.8 9
C18Q-SCLCL09 C18Q-SCLCR09 20 18 180 16.6 10
C20R-SCLCL09 C20R-SCLCR09 23 20 200 18.6 11.5
C25S-SCLCL09 C25S-SCLCR09 29 25 250 23 14.5 M4x10
C32T-SCLCL09 C32T-SCLCR09 38 32 300 30 20
C40T-SCLCL09 C40T-SCLCR09 46 40 300 37 24
C20R-SCLCL12 C20R-SCLCR12 24 20 200 18.6 12 CC□□1204□□ M5x10 T20
C25S-SCLCL12 C25S-SCLCR12 29 25 250 23 14.5 M5x12
C32T-SCLCL12 C32T-SCLCR12 38 32 300 30 20
C40T-SCLCL12 C40T-SCLCR12 46 40 300 37 24
