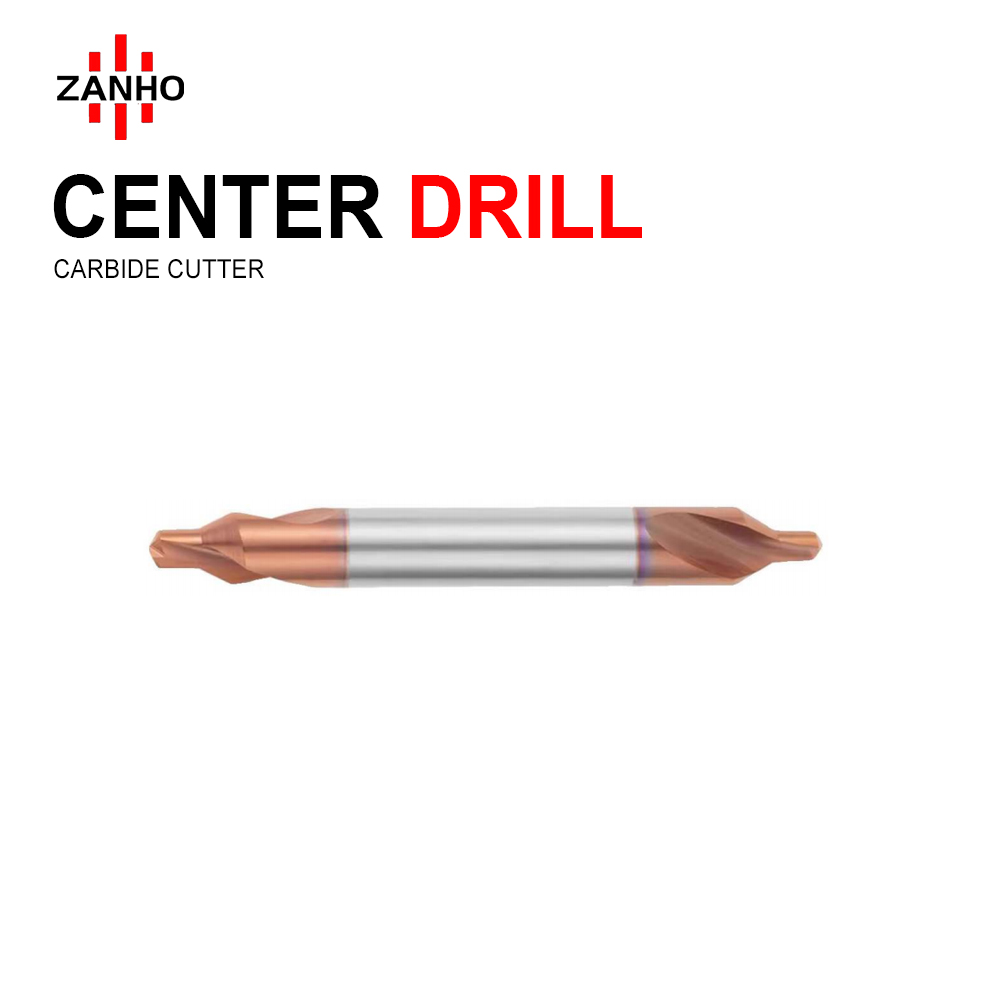

Carbide Center Drill

  • Accurate Centering: 60-Degree Center Holes, preventing drill walk and ensuring perfect alignment for subsequent drilling or lathe operations.
  • Premium TIAISIN Coating: Advanced TiSiN coating provides exceptional heat resistance and tool life, maintaining sharp cutting edges in high-speed CNC environments.
  • Double-Ended Efficiency: Features a Double-Ended design, effectively doubling the tool life and providing superior value for high-volume production.
  • High Rigidity Substrate: Made from premium solid carbide to minimize vibration and deflection, ensuring strict dimensional accuracy in center-hole diameters.
  • Workpiece Compatibility: Highly effective for Carbon Steel, Alloy Steel, Stainless Steel, and Hardened Steel with high stability.
Categories:
Learn More
Download PDF
Description
  • Accurate Centering: 60-Degree Center Holes, preventing drill walk and ensuring perfect alignment for subsequent drilling or lathe operations.
  • Premium TIAISIN Coating: Advanced TiSiN coating provides exceptional heat resistance and tool life, maintaining sharp cutting edges in high-speed CNC environments.
  • Double-Ended Efficiency: Features a Double-Ended design, effectively doubling the tool life and providing superior value for high-volume production.
  • High Rigidity Substrate: Made from premium solid carbide to minimize vibration and deflection, ensuring strict dimensional accuracy in center-hole diameters.
  • Workpiece Compatibility: Highly effective for Carbon Steel, Alloy Steel, Stainless Steel, and Hardened Steel with high stability.

Order Number Specification D A L1 D1 L
CD-2C-00501 0.5*D3*40L 0.5 60 1 3 40
CD-2C-00601 0.6*D3*40L 0.6 60 1 3 40
CD-2C-00812 0.8*D3*40L 0.8 60 1.2 3 40
CD-2C-01015 1*D3*40L 1 60 1.5 3 40
CD-2C-01520 1.5*D4*40L 1.5 60 2 4 40
CD-2C-02025 2*D6*50L 2 60 2.5 6 50
CD-2C-02530 2.5*D6*50L 2.5 60 3 6 50
CD-2C-03035 3*D8*60L 3 60 3.5 8 60
CD-2C-04050 4*D8*60L 4 60 5 8 60
CD-2C-04050 4*D10*60L 4 60 5 10 60
CD-2C-05065 5*D10*60L 5 60 6.5 10 60
CD-2C-12565 5*D12*60L 5 60 6.5 12 60
