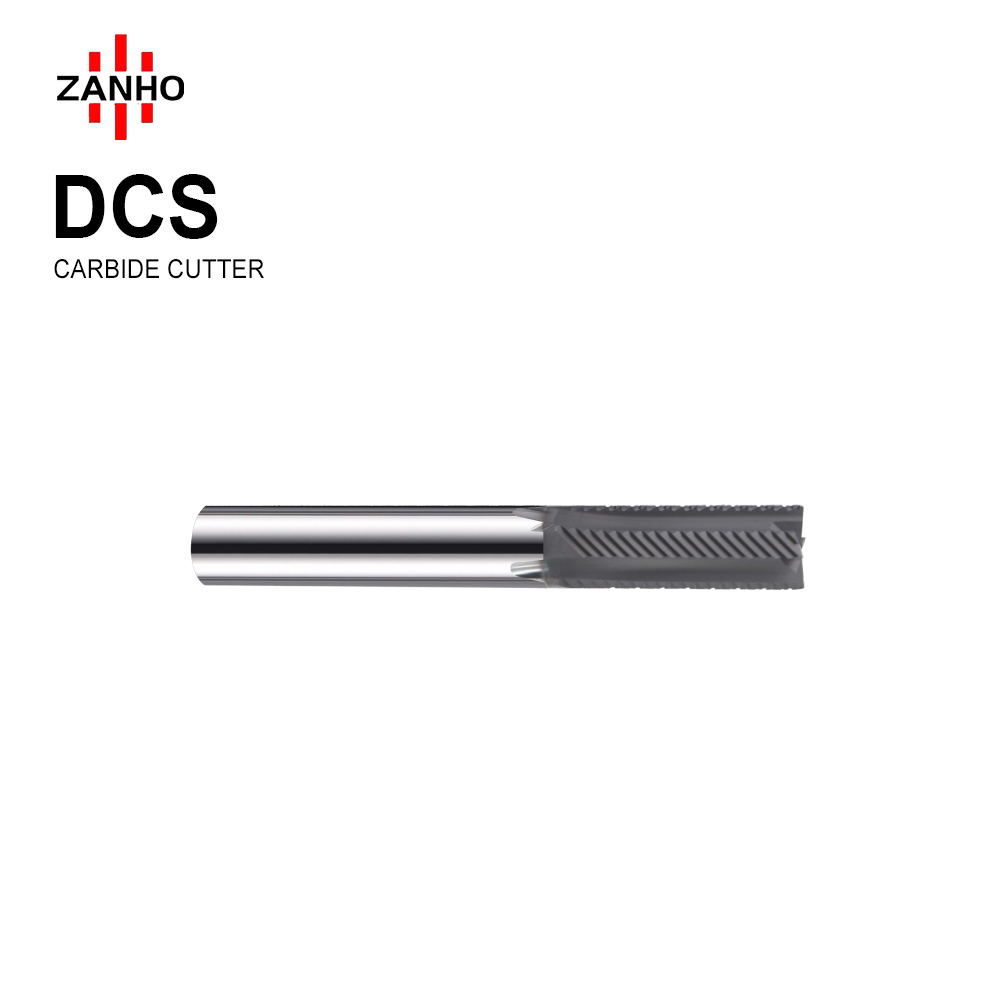

Carbide Router for Carbon Fiber

  • Composite Specialist: Specifically engineered for the demanding requirements of Carbon Fiber (CFRP), Fiberglass, and other advanced composite materials.
  • Delamination Protection: Features a unique Diamond-Cut (Burr Style) geometry that shears fibers cleanly, effectively preventing delamination and surface tearing.
  • Exceptional Wear Resistance: Made from premium sub-micron grain carbide to maintain sharp cutting edges against the highly abrasive nature of fiber-reinforced plastics.
  • Workpiece Compatibility: Ideal for Carbon Fiber, G10, FR4, Epoxy Resin, and Glass-reinforced plastics.
  • Diverse Sizes: Available in diameters D3 to D12 with extended shank (SH) options for deep-reach profiling and thick-plate cutting.
Categories:
Learn More
Download PDF
Description
  • Composite Specialist: Specifically engineered for the demanding requirements of Carbon Fiber (CFRP), Fiberglass, and other advanced composite materials.
  • Delamination Protection: Features a unique Diamond-Cut (Burr Style) geometry that shears fibers cleanly, effectively preventing delamination and surface tearing.
  • Exceptional Wear Resistance: Made from premium sub-micron grain carbide to maintain sharp cutting edges against the highly abrasive nature of fiber-reinforced plastics.
  • Workpiece Compatibility: Ideal for Carbon Fiber, G10, FR4, Epoxy Resin, and Glass-reinforced plastics.
  • Diverse Sizes: Available in diameters D3 to D12 with extended shank (SH) options for deep-reach profiling and thick-plate cutting.

Order Number Specification D L1 D1 L
DCS-4S-03010 D3*10H*D4*50L*3F 3 10 4 50
DCS-4S-04012 D4*12H*D4*50L*4F 4 12 4 50
DCS-4SH-04015 D4*15H*D4*75L*4F 4 15 4 75
DCS-4SH-05015 D5*15H*D6*50L*4F 5 15 6 50
DCS-4S-06018 D6*18H*D6*50L*4F 6 18 6 50
DCS-4SH-06025 D6*25H*D6*75L*4F 6 25 6 75
DCS-4S-08025 D8*25H*D8*60L*4F 8 25 8 60
DCS-4SH-08032 D8*32H*D8*75L*4F 8 32 8 75
DCS-4S-10032 D10*32H*D10*75L*4F 10 32 10 75
DCS-4SH-10045 D10*45H*D10*100L*4F 10 45 10 100
DCS-4S-12045 D12*45H*D12*100L*4F 12 45 12 100
