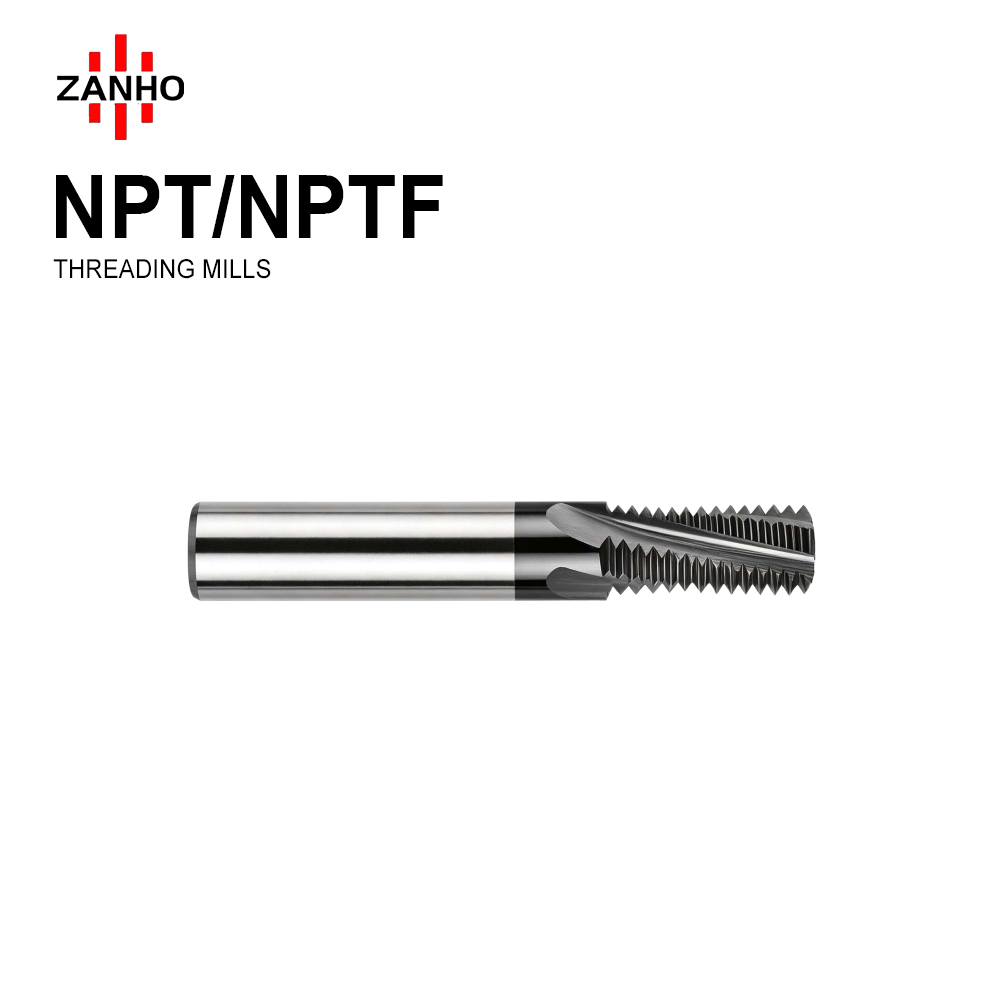

Carbide Taper Pipe Thread Mill

  • Pipe Thread Specialist: Specifically engineered for precision milling of NPT (National Pipe Taper) and NPTF (Dryseal) threads, ensuring pressure-tight, leak-free seals in demanding applications.
  • Full Profile Accuracy: Multi-tooth design enables highly efficient, burr-free threading with perfect taper and pitch consistency.
  • Wide Pipe Standard Coverage: Extensive range from 1/16-27 up to 1"-11.5, meeting all common industrial requirements for valves, pumps, and hydraulic fittings.
Categories:
Learn More
Download PDF
Description

订货号 Order Number 规格 Specification 刀径 D 有效长 L1 柄径 D1 总长 L
TB100-NPT0116027 NPT1/16-27 5.9 10 6 60
TB100-NPT0108027 NPT1/8-27 7.95 15 8 65
TB100-NPT0104018 NPT1/4-18 9.9 15.5 10 75
TB100-NPT0308018 NPT3/8-18 11.9 16 12 75
TB100-NPT0122014 NPT1/2-14 11.9 25 12 83
TB100-NPT0102014 NPT1/2-14 15.95 30 16 100
TB100-NPT12304014 NPT3/4-14 11.9 25 12 83
TB100-NPT0304014 NPT3/4-14 15.95 30 16 100
TB100-NPT16100115 NPT1'-1.5 15.9 33 16 100
TB100-NPT1000115 NPT1'-1.5 19.9 33 20 100
TB100-NPTF0116027 NPTF1/16-27 5.9 10 6 50
TB100-NPTF0108027 NPTF1/8-27 7.95 15 8 65
TB100-NPTF0104018 NPTF1/4-18 9.9 15.5 10 75
TB100-NPTF0308018 NPTF3/8-18 11.9 16 12 75
TB100-NPTF0102014 NPTF1/2-14 15.95 30 16 100
TB100-NPTF0304014 NPTF3/4-14 15.95 30 16 100
TB100-NPTF1000115 NPTF1'-1.5 19.9 33 20 100

Looking for the right specification, grade, or coating for your market?

Send us your requirements below. Our sales team will provide product recommendations, competitive pricing, and OEM options based on your needs. For distributors, wholesalers & importers — bulk order inquiries are welcome.

Fill in the form below and get your quotation.
