CCGT-AK

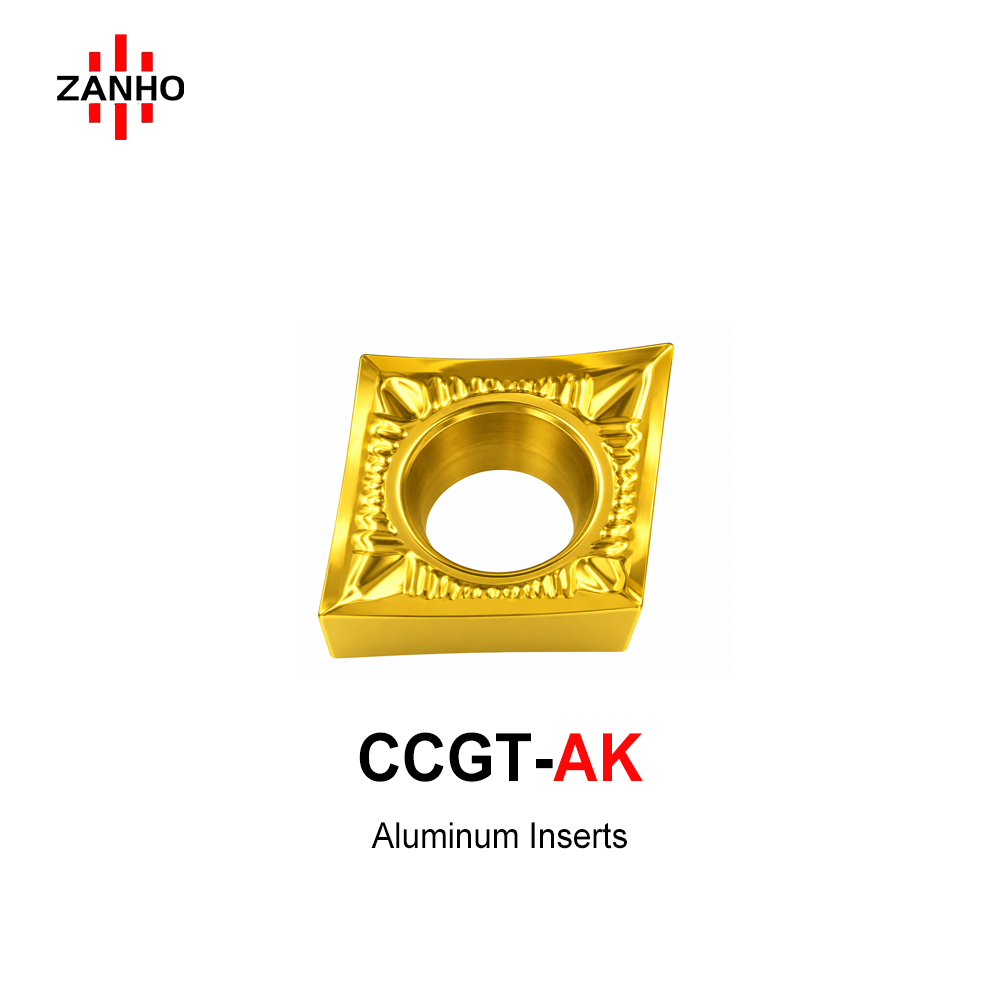

ZANHO CCGT-AK series: High-precision 80° rhombic inserts optimized for aluminum and non-ferrous alloys. Featuring a large positive rake geometry and a buffed mirror-polished rake face, these inserts minimize cutting resistance and effectively prevent built-up edge (BUE). Ideal for high-speed external turning and internal boring, delivering exceptional surface brightness and dimensional stability.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • Mirror-Polished Rake Face: Significantly reduces cutting friction and prevents aluminum welding and chip adhesion.
  • Large Positive Rake Geometry: Ensures light and sharp cutting action, minimizing vibration and heat generation.
  • Optimized Open Chipbreaker: Facilitates mandatory chip curling and stable evacuation, even in enclosed internal boring.
  • High Precision Ground Edges: Delivers optical-grade surface finish and maintains tight tolerances.
  • Internal & External Versatility: Perfectly suited for external turning, internal boring, and complex profiling of non-ferrous metals.

CCGT-AK Dimensions (ISO Standard)

Model Edge Length L (mm) Thickness S (mm) Bore D (mm) Radius R (mm)
CCGT060202-AK 6.35 2.38 2.8 0.2
CCGT060204-AK 6.35 2.38 2.8 0.4
CCGT060208-AK 6.35 2.38 2.8 0.8
CCGT09T302-AK 9.525 3.97 4.4 0.2
CCGT09T304-AK 9.525 3.97 4.4 0.4
CCGT09T308-AK 9.525 3.97 4.4 0.8
CCGT120402-AK 12.7 4.76 5.5 0.2
CCGT120404-AK 12.7 4.76 5.5 0.4
CCGT120408-AK 12.7 4.76 5.5 0.8
