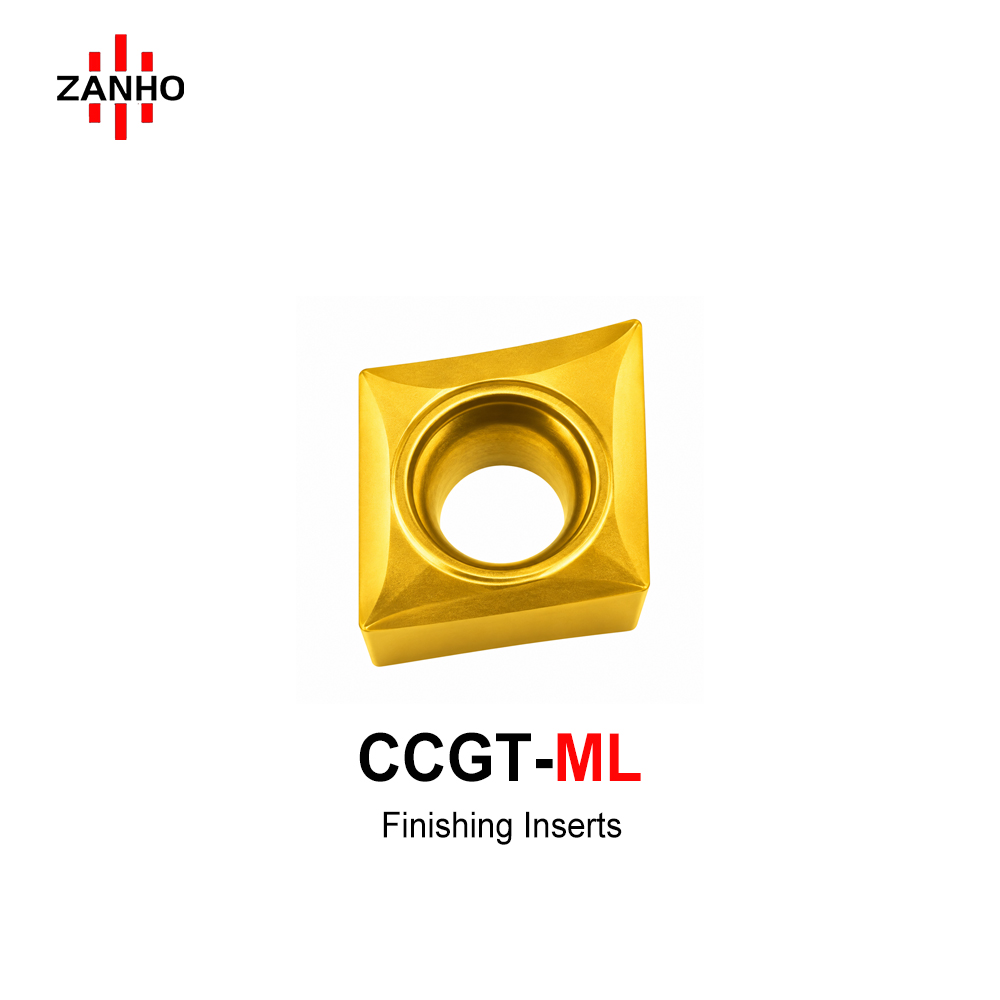

CCGT-ML

ZANHO CCGT-ML series: Precision ground 80° rhombic inserts with the ML chipbreaker for high-performance finishing. Optimized for Stainless Steel and Hardened Steel (50HRC+), these inserts provide stable chip control and exceptional surface smoothness. Ideal for high-speed precision CNC turning where tool life and dimensional accuracy are critical.
Categories:
Learn More
Download PDF
Description

Technical Features

  • 80° Rhombic Profile: Versatile geometry providing optimal edge strength for finish turning.
  • ML Chipbreaker: Mandatory chip curling design for adhesive stainless and hardened steel grades.
  • Dual-Material Performance: Superior results on both Stainless Steel and Hardened Steel (50HRC+).
  • Optical Surface Finish: Precision ground edges minimize friction and heat for a high-gloss finish.
  • High-Speed Stability: Supports line speeds up to 200 m/min in stainless steel applications.

CCGT-ML Dimensions (mm)

Designation L øI.C S D1 RE
CCGT060201-ML 6.4 6.35 2.38 2.8 0.1
CCGT060202-ML 0.2
CCGT060204-ML 0.4
CCGT09T301-ML 9.7 9.525 3.97 4.4 0.1
CCGT09T302-ML 0.2
CCGT09T304-ML 0.4

Recommended Cutting Parameters

Tip Radius (RE) ap (mm) Vc Stainless (m/min) Vc HRC50+ (m/min) f (mm/rev)
R0.1 0.05-1.0 70-200 30-70 0.01-0.05
R0.2 0.08-1.5 0.02-0.08
R0.4 0.15-2.5 0.03-0.15
