CCGT-ZL

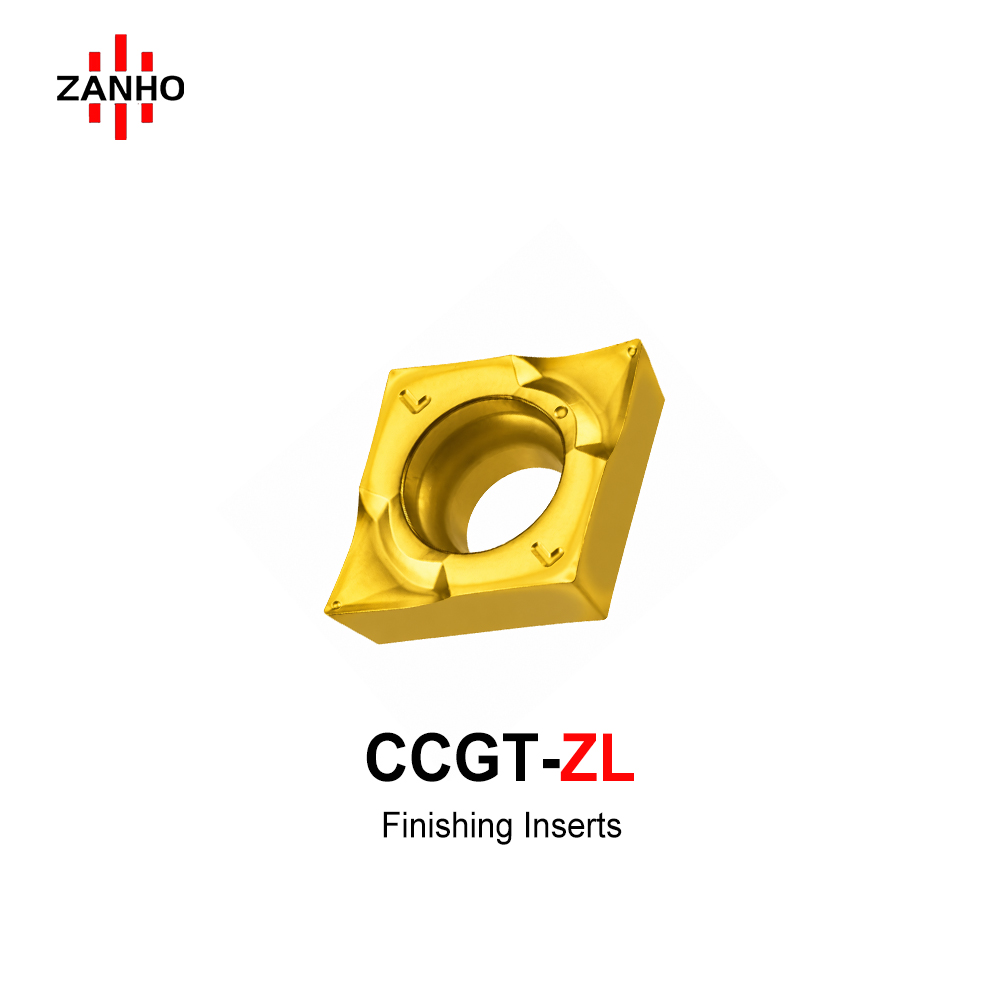

ZANHO CCGT-ZL series: High-precision ground 80° rhombic inserts designed for fine finishing. Features an ultra-sharp edge and wide chipbreaker to minimize cutting pressure, combined with uniform passivation for superior wear and corrosion resistance. Delivers exceptional surface quality and dimensional stability in precision CNC turning.
Categories:
Learn More
Download PDF
Description

Technical Features

  • Sharp Cutting Edge: Wide chipbreaker design significantly reduces cutting pressure and heat.
  • Uniform Passivation: Precision edge honing forms a protective layer, maximizing tool life.
  • Enhanced Durability: High resistance to wear and corrosion for stable long-run production.
  • High-Precision Ground: G-class ground periphery ensures exceptional repeatability.
  • Optimized Chip Control: Excellent evacuation performance even at low depth of cut.

CCGT-ZL Dimensions (mm)

Designation L øI.C S D1 RE
CCGT060201-ZL 6.4 6.35 2.38 2.8 0.1
CCGT060202-ZL 0.2
CCGT060204-ZL 0.4
CCGT09T3005-ZL 9.7 9.525 3.97 4.4 0.05
CCGT09T301-ZL 0.1
CCGT09T302-ZL 0.2
CCGT09T304-ZL 0.4
