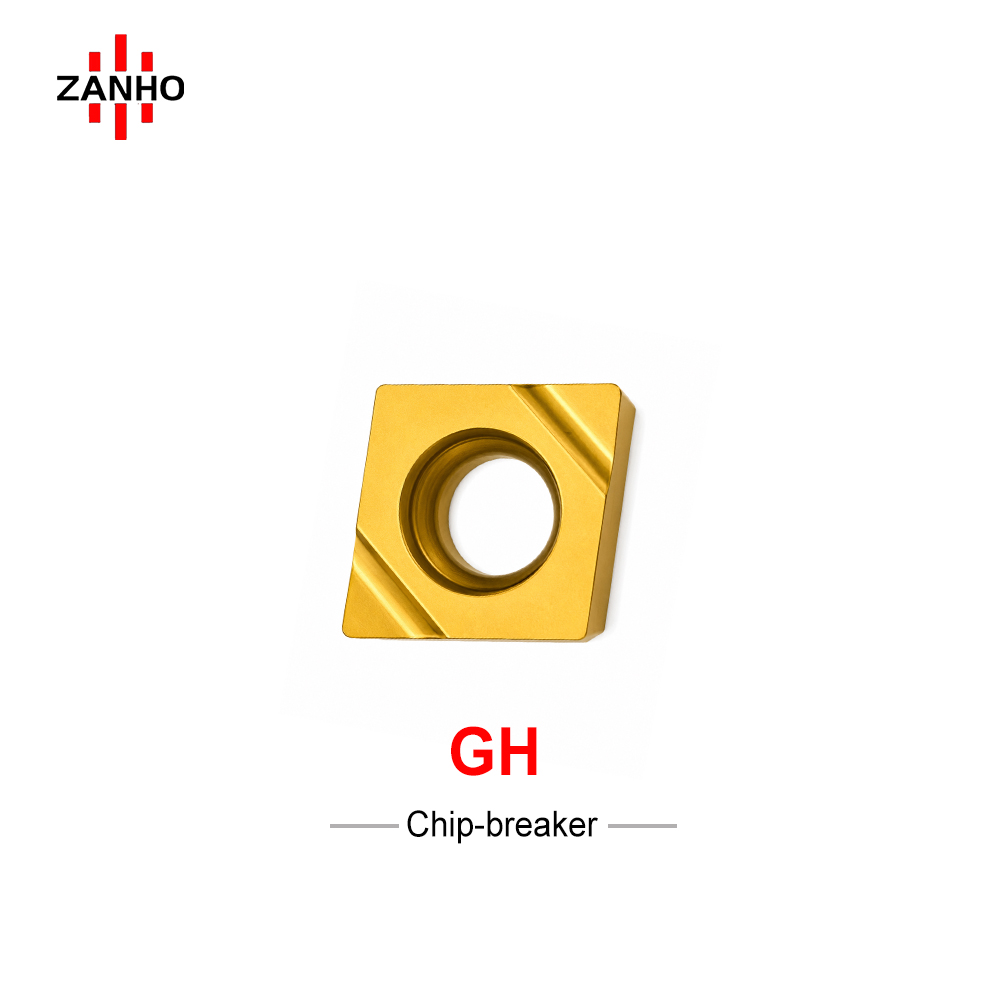

CCMT-GH

ZANHO CCMT-GH series is a heavy-duty 80° rhombic positive turning insert specialized for hardened materials up to 70 HRC and Cast Iron. Engineered for both interrupted and continuous machining, it offers exceptional stability and tool life, making it the perfect choice for large workpiece turning on standard lathes, delivering superior surface integrity in challenging environments.

Categories: CCMT Inserts

Download PDF

Key Performance & Features

Hardened Material Specialist: Capable of machining high-hardness materials up to 70 HRC, including quenched steels and hardened alloys.
Cast Iron Optimization: Superior performance in Grey Cast Iron and Ductile Cast Iron, offering excellent wear resistance and thermal stability.
Large Workpiece Turning: Specifically designed for stability on manual/standard lathes when processing large components with consistent accuracy.
Continuous & Interrupted Cuts: Reinforced edge design allows for smooth transitions between continuous and interrupted machining without edge chipping.

Technical Specifications

Model	Feed (f) mm/r	Cut Depth (ap) mm
CCMT060202-GH	0.02 - 0.2	0.03 - 0.8
CCMT060204-GH	0.02 - 0.2	0.03 - 0.8
CCMT060208-GH	0.02 - 0.2	0.03 - 0.8
CCMT09T302-GH	0.02 - 0.2	0.03 - 0.8
CCMT09T304-GH	0.02 - 0.2	0.03 - 0.8
CCMT09T308-GH	0.02 - 0.2	0.03 - 0.8
CCMT120404-GH	0.02 - 0.2	0.03 - 0.8
CCMT120408-GH	0.02 - 0.2	0.03 - 0.8
CCMT120412-GH	0.02 - 0.2	0.03 - 0.8

High-Efficiency Solutions for Hard Materials

Ideal for high-hardness turning where tool life and edge integrity are critical. Contact our technical team for grade recommendations based on your specific material hardness.
