CCMT-PF

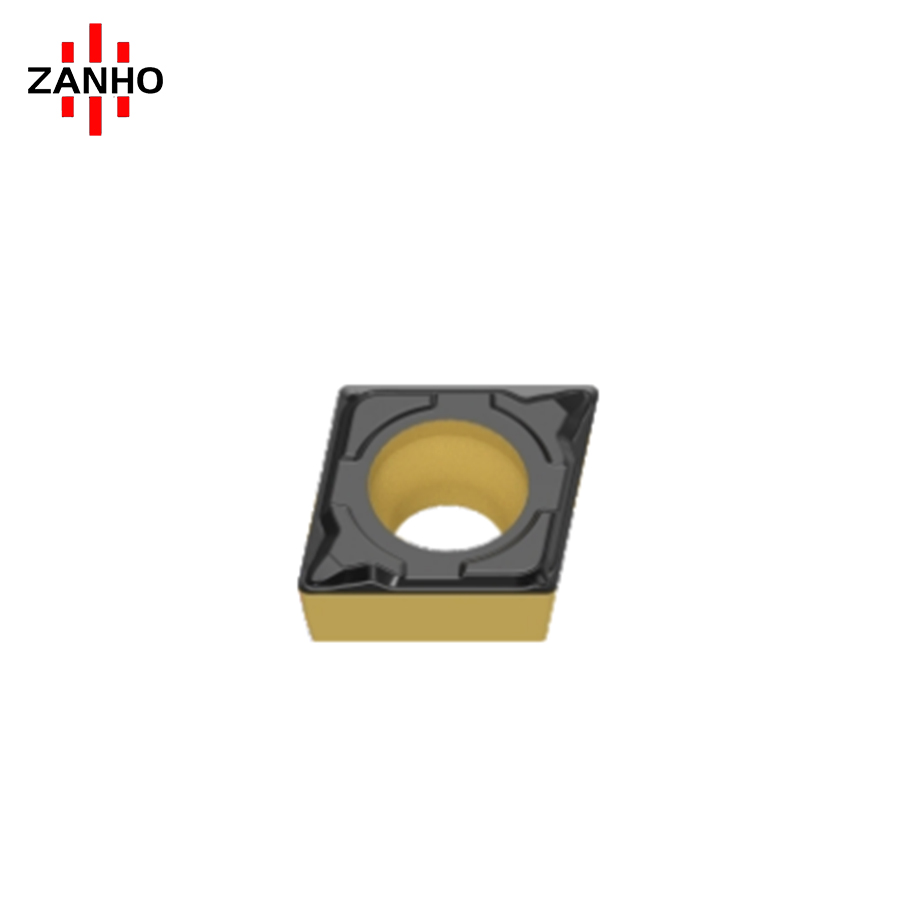

ZANHO CCMT-PF series is a professional 80° rhombic positive turning insert specifically designed for High-Precision Finishing. Featuring the specialized PF chipbreaker, it delivers exceptional surface integrity and stable chip control at light cutting depths, making it ideal for the final machining stages of steel and alloy components.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Finishing Specialist: Engineered specifically for high-precision finishing operations, delivering superior surface integrity and dimensional accuracy in professional CNC machining.

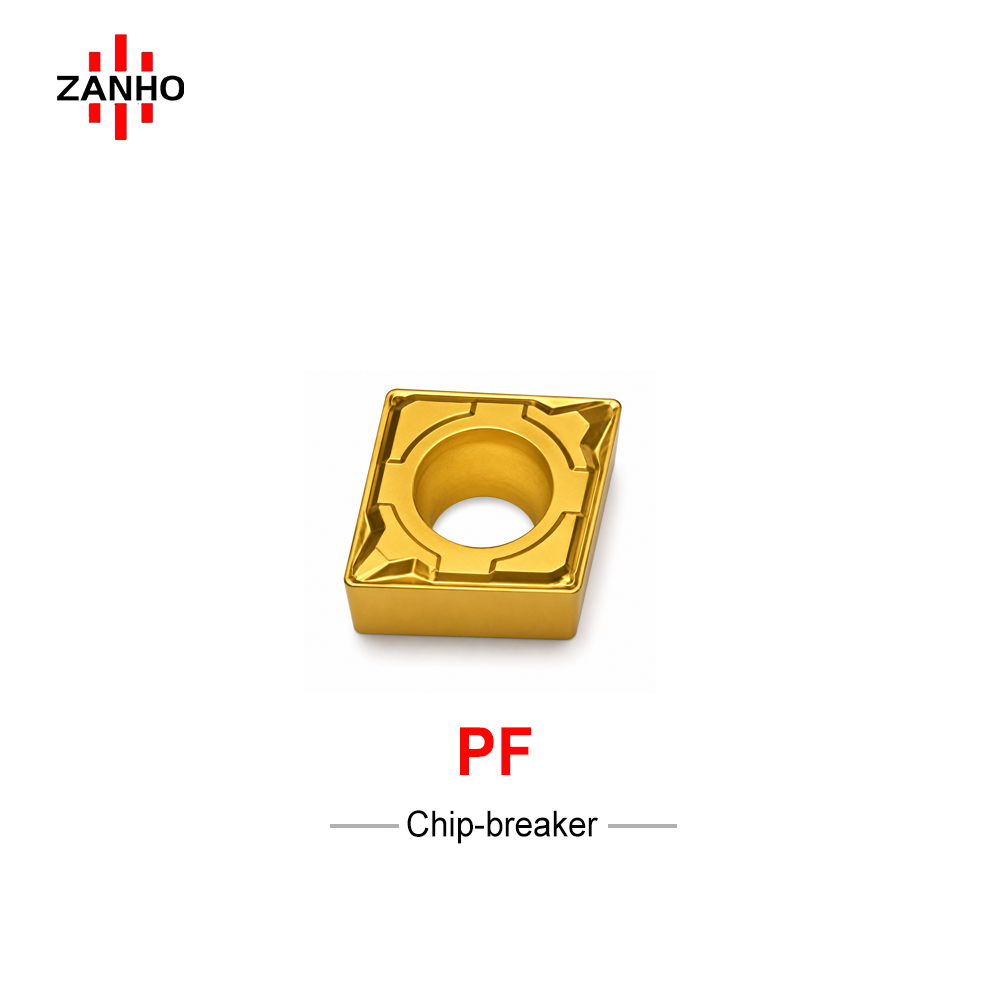

  • PF Chipbreaker Geometry: Optimized for light cutting depths, ensuring excellent chip breaking and preventing surface marring from long chips.
  • Positive Geometry: The 80-degree rhombic shape with positive clearance reduces cutting forces and heat buildup, ideal for maintaining tight tolerances on light-duty CNC lathes.
  • Smooth Cutting: Precision-ground edges reduce vibration and improve tool life, maintaining consistent quality in long-running finishing cycles.

Technical Specifications

Model Radius (re)
CCMT060202-PF 0.2 mm
CCMT060204-PF 0.4 mm
CCMT09T304-PF 0.4 mm

Need Professional Technical Support?

Our sales team can recommend the optimal grade and coating based on your specific material and surface finish requirements.
