CCMT-TF1

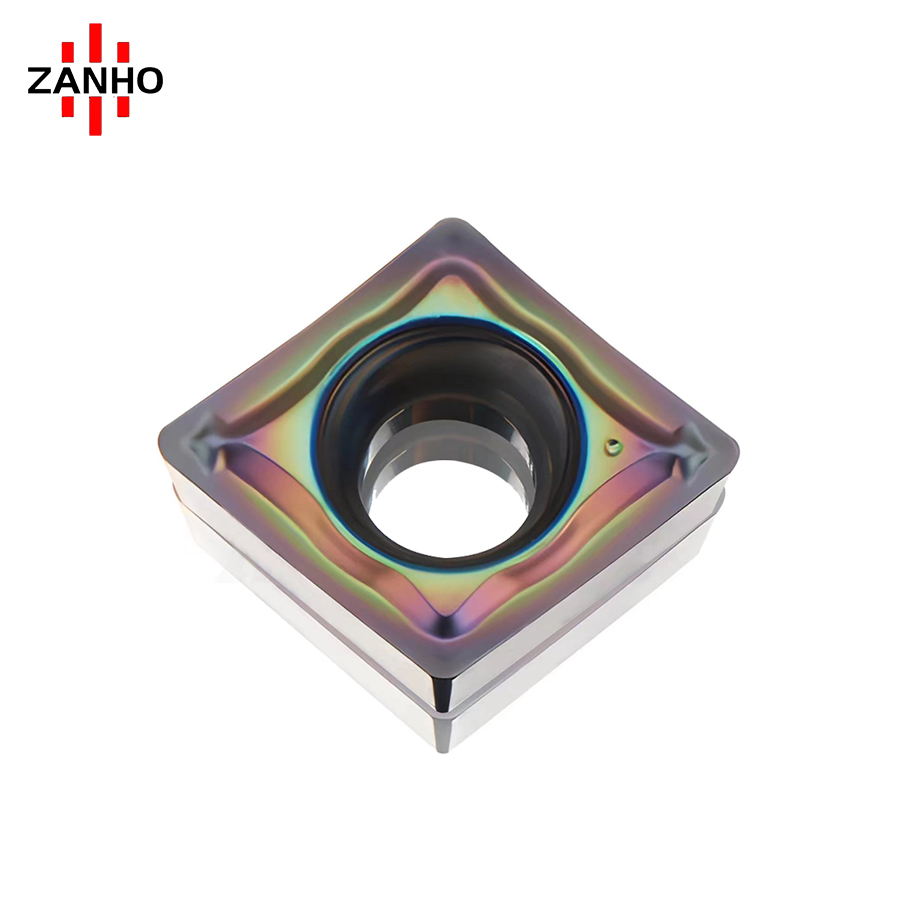

ZANHO CCMT-TF1 series is a professional 80° rhombic positive turning insert specifically designed for Medium Machining. Featuring the specialized TF1 chipbreaker, it delivers stable cutting performance and consistent chip evacuation at medium feed rates, making it an ideal choice for general-purpose turning of steel and alloy components with high reliability.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Medium Machining Excellence: Optimized for semi-roughing to medium finishing applications, ensuring continuous productivity in general CNC turning.

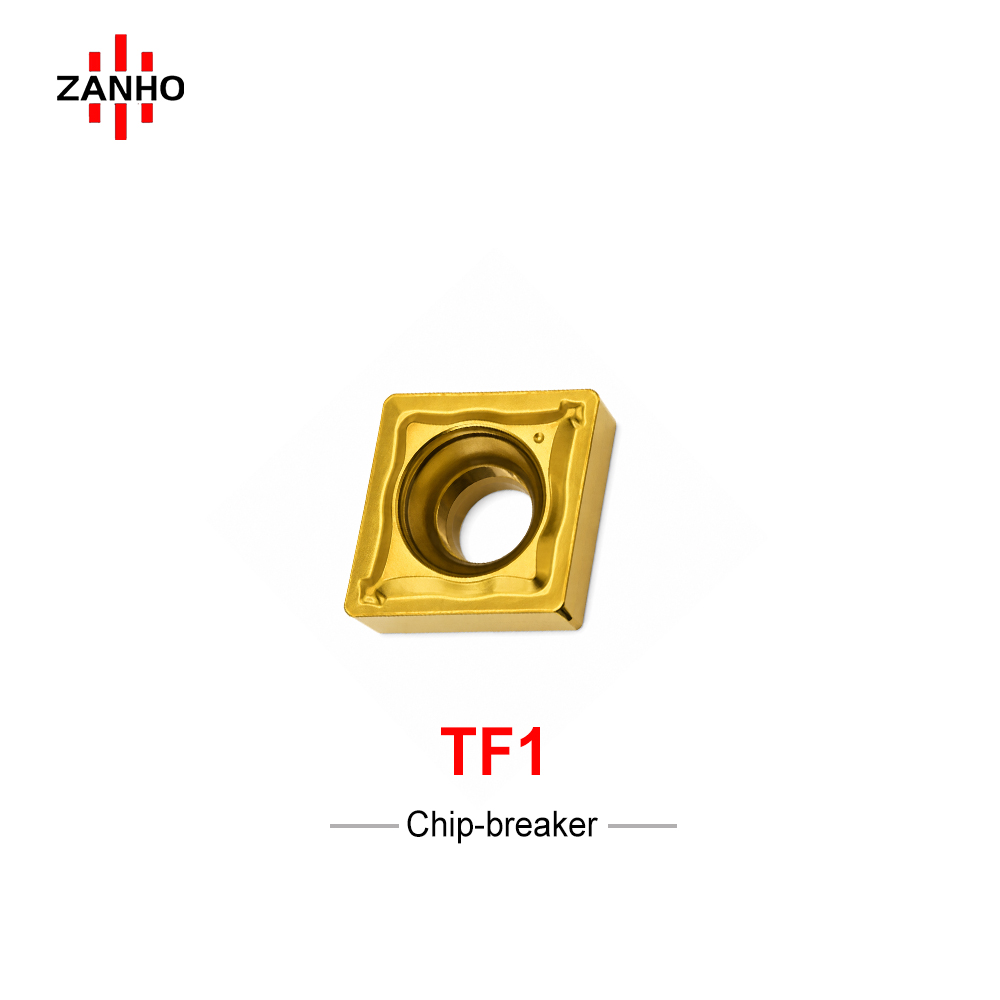

  • TF1Chipbreaker Geometry: Specifically engineered for stable chip breaking at medium feed rates, effectively preventing chip nesting and workpiece surface damage.
  • 80° Rhombic Positive Design: The positive clearance angle reduces cutting forces and heat buildup, making it ideal for maintaining stability on light to medium-duty lathes.
  • Stable Cutting Edge: Precision-ground edges enhance surface finish and tool reliability, maintaining consistent quality in long-running turning cycles.

Technical Specifications

Model Feed (f) Cut Depth (ap)
CCMT060204-TF1 0.05 - 0.25 mm/r 0.3 - 2.5 mm
CCMT09T304-TF1 0.05 - 0.25 mm/r 0.3 - 2.5 mm

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade and coating based on your specific material hardness and machining conditions.
