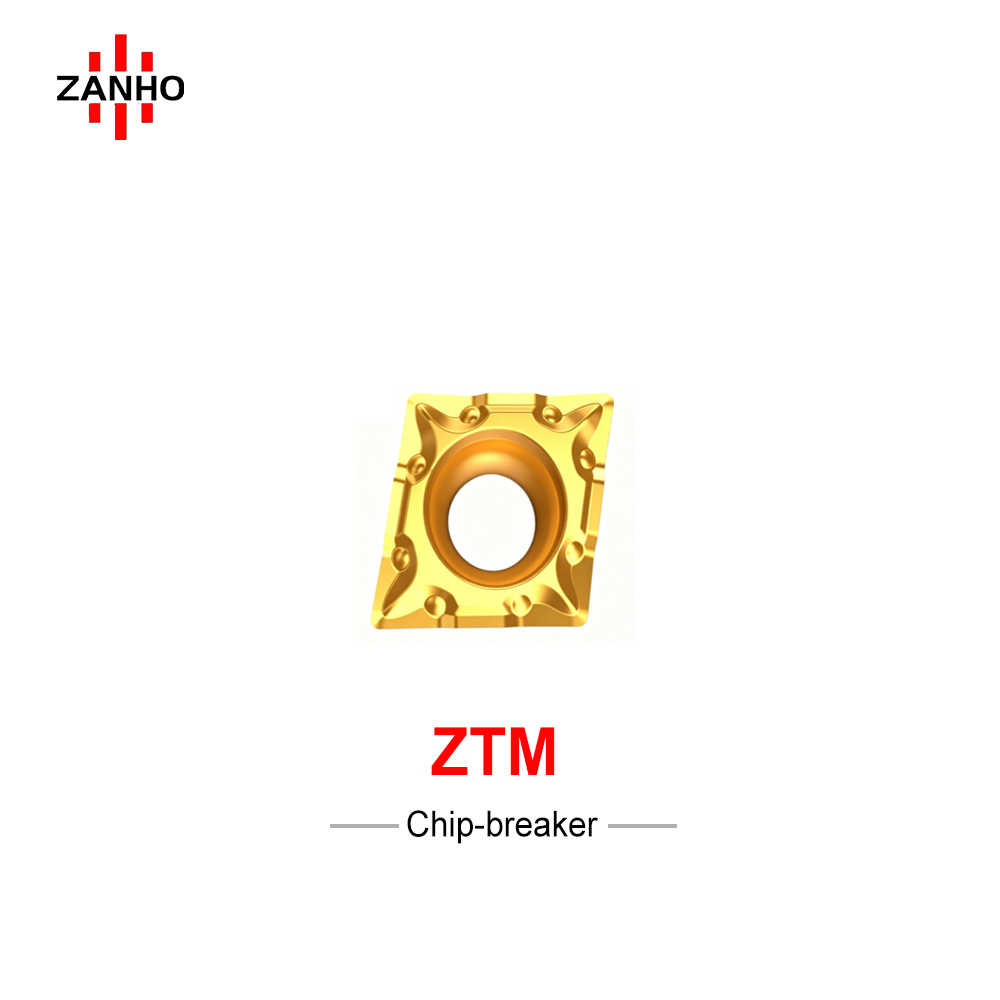

CCMT-ZTM

ZANHO CCMT-ZTM series is a robust 80° rhombic positive turning insert specifically designed for Semi-finishing. Featuring the specialized ZTM chipbreaker, it delivers stable cutting performance and consistent chip evacuation across a wide range of feed rates, making it an ideal choice for general-purpose turning of steel and alloy components.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Semi-finishing Specialist: Optimized for semi-roughing to semi-finishing applications, providing a perfect balance between cutting speed and edge durability.
  • ZTM Chipbreaker Geometry: Engineered for stable chip breaking at medium feed rates, effectively preventing chip nesting and surface damage.
  • Positive Rhombic Design: The 80-degree rhombic shape with positive clearance angle reduces cutting forces and heat buildup, ideal for maintaining stability on light to medium-duty CNC lathes.
  • Stable Tool Life: Precision-ground edges enhance surface finish and machining reliability, maintaining consistent quality in long-running turning cycles.

Technical Specifications

Model Feed (f) mm/r Cut Depth (ap) mm
CCMT060204-ZTM 0.07 - 0.20 0.5 - 2.0
CCMT060208-ZTM 0.13 - 0.30 0.7 - 2.0
CCMT09T304-ZTM 0.10 - 0.25 0.7 - 3.5
CCMT09T308-ZTM 0.10 - 0.25 0.7 - 3.5

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade and coating based on your specific material hardness and machining setup.
