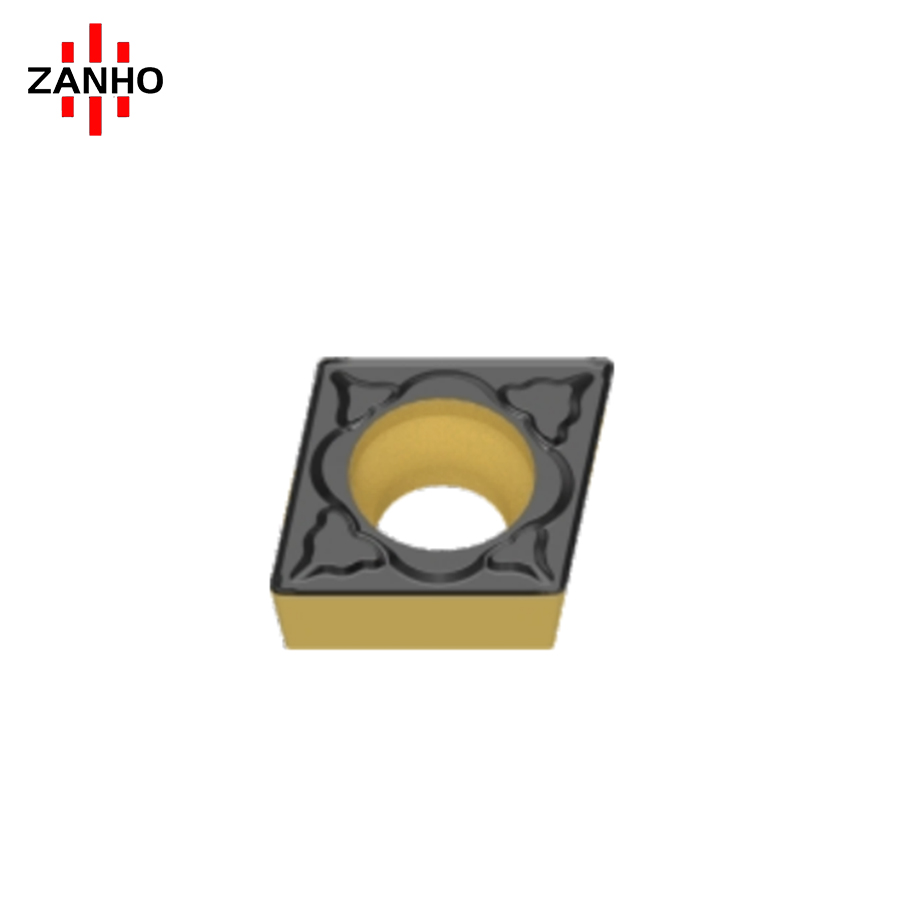

CCMT-PM | Medium Machining Carbide Turning Insert

ZANHO CCMT-PM series is a professional 80° rhombic positive turning insert specifically designed for Medium Machining. Featuring the balanced PM chipbreaker, it delivers stable cutting performance and consistent chip evacuation across a wide range of cutting depths (0.2-4.0mm), making it an ideal choice for general-purpose turning of steel and alloy components with high reliability.

Categories: CCMT Inserts

Download PDF

Key Performance & Features

Medium Machining Excellence: Specifically optimized for medium turning operations, providing a perfect balance between cutting efficiency and edge durability.

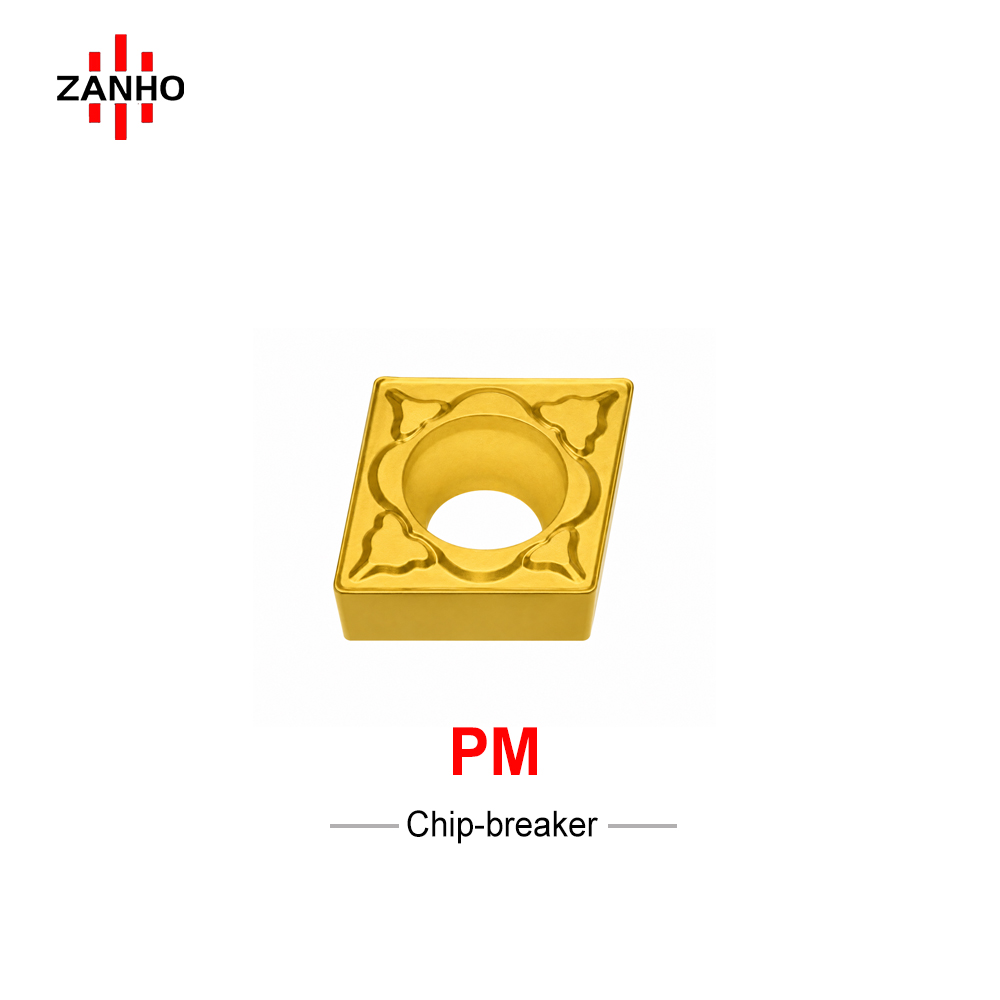

PM Chipbreaker Geometry: Engineered for stable chip breaking across a versatile range of feed rates, effectively preventing chip accumulation and surface marring.
Positive Rhombic Design: The 7-degree positive clearance reduces cutting resistance and heat buildup, ideal for smaller lathes and delicate workpiece machining.
Stable Tool Life: Precision-ground cutting edges enhance surface finish and machining reliability, ensuring consistent quality in long-running turning cycles.

Technical Specifications

Model	ap Cut Depth (mm)	fn Feed Rate (mm/r)
CCMT060204-PM	0.8 (0.2 - 1.8)	0.11 (0.06 - 0.16)
CCMT060208-PM	0.8 (0.2 - 1.8)	0.13 (0.07 - 0.18)
CCMT09T304-PM	1.5 (0.3 - 3.2)	0.14 (0.08 - 0.21)
CCMT09T308-PM	1.5 (0.3 - 3.2)	0.16 (0.08 - 0.23)
CCMT120404-PM	2.0 (0.4 - 4.0)	0.15 (0.08 - 0.22)
CCMT120408-PM	2.0 (0.4 - 4.0)	0.18 (0.09 - 0.26)

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade and coating based on your specific material hardness and machining setup.
