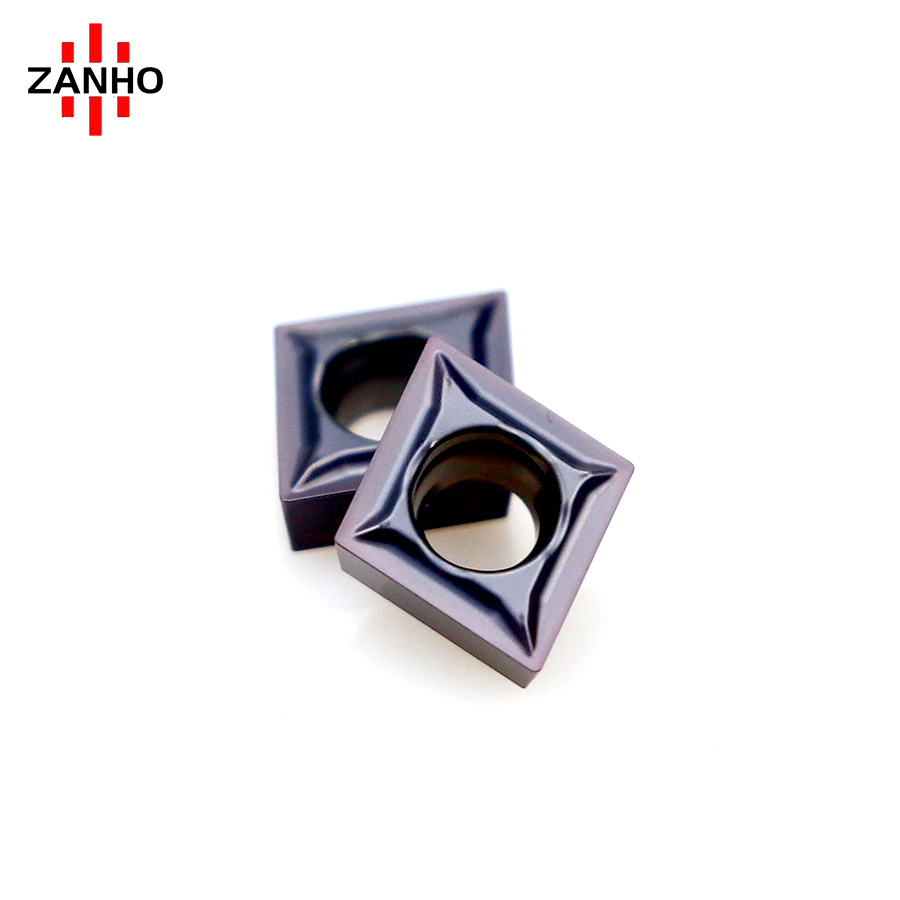

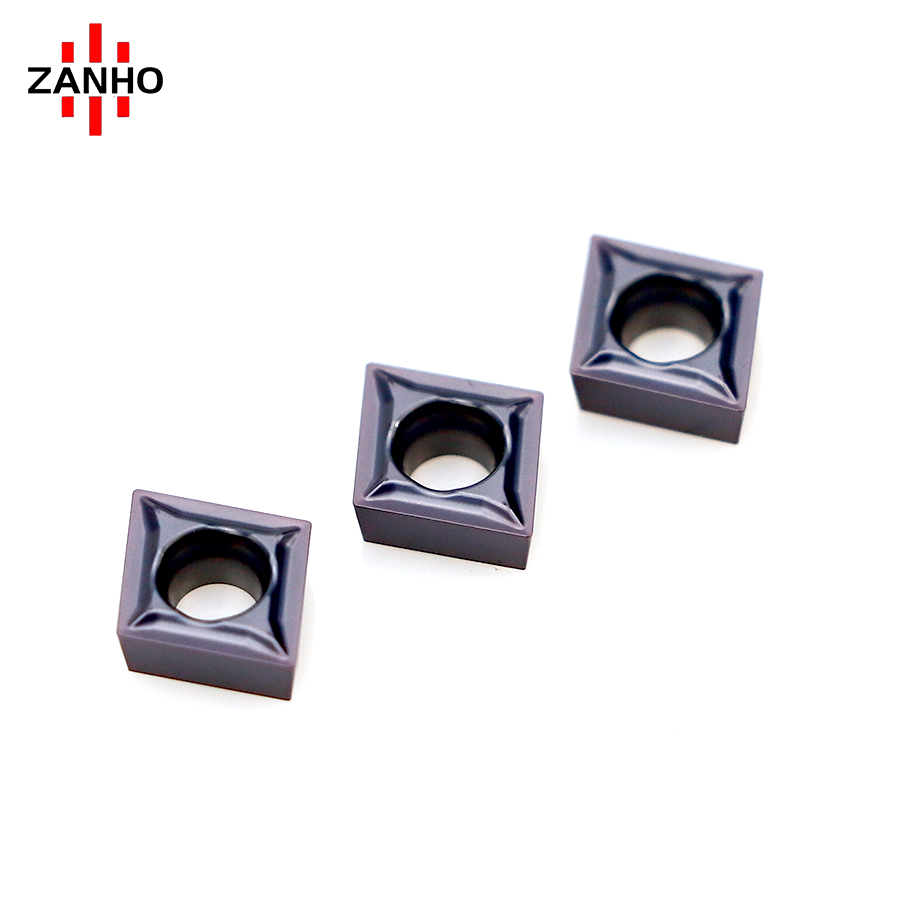

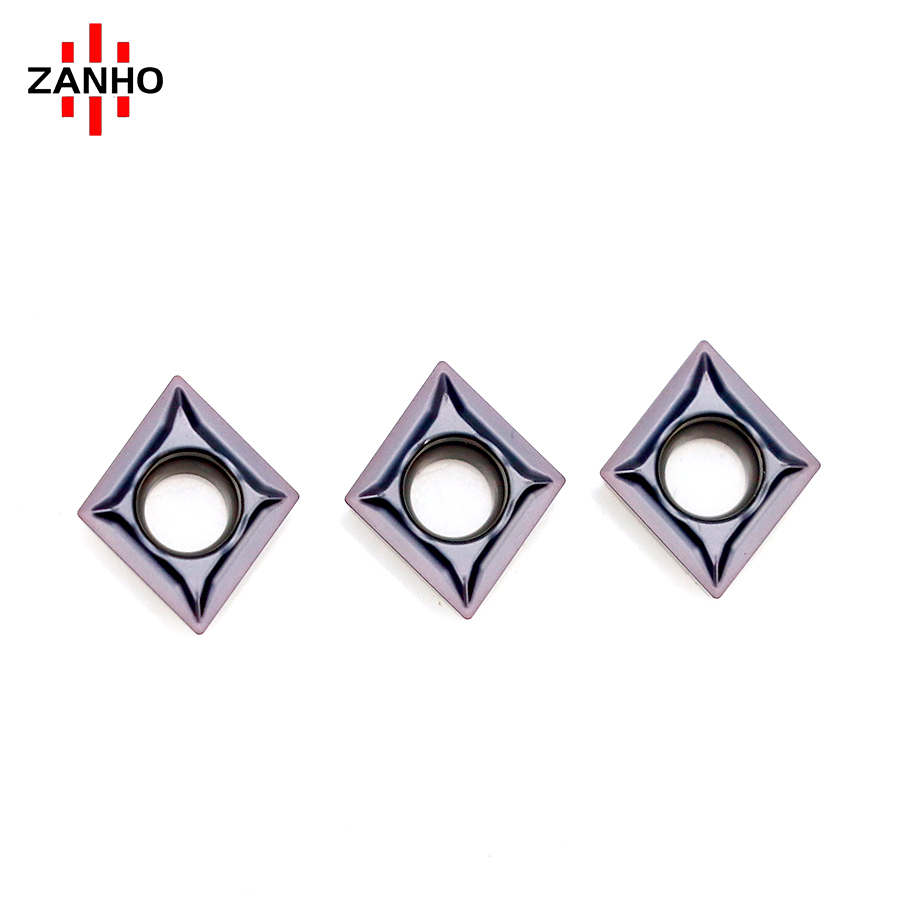

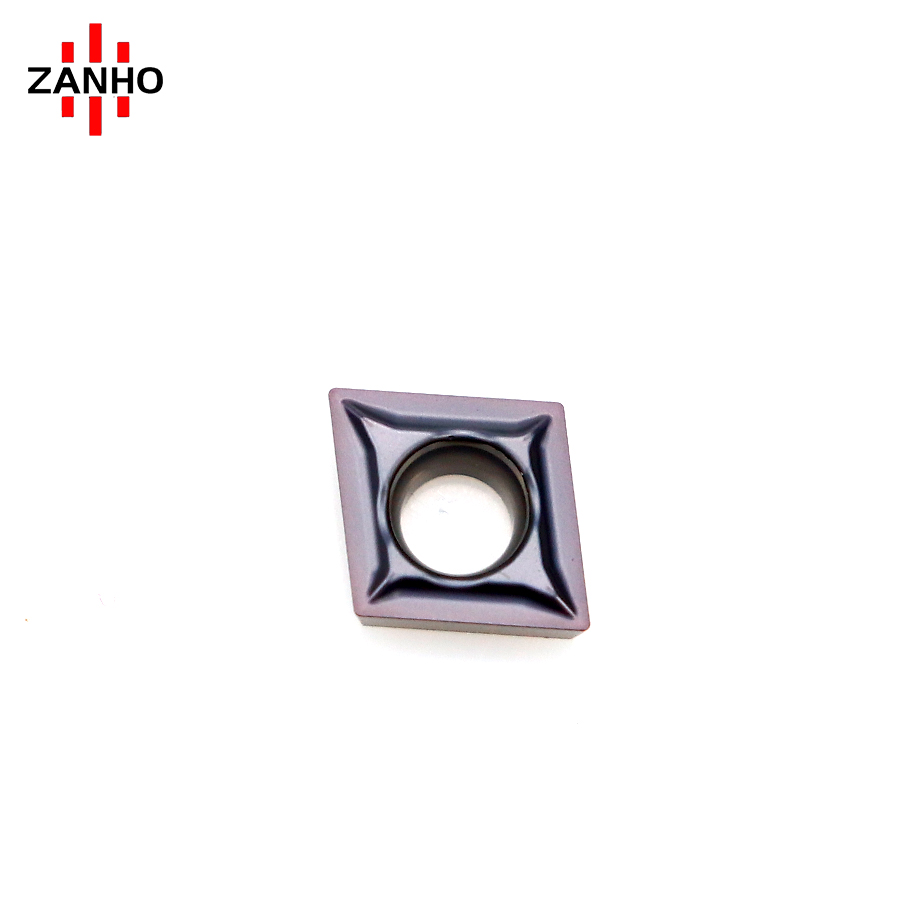

CCMT-ZLF

ZANHO CCMT-ZLF series is a high-versatility 80° rhombic positive turning insert engineered for Precision Finishing across multiple material groups. It is exceptionally well-suited for Steel, Stainless Steel, Cast Iron, Non-ferrous alloys, and High-temperature alloys. Featuring the specialized ZLF chipbreaker, it also delivers outstanding performance in hardened and short-chip materials, ensuring superior surface integrity.

Categories: CCMT Inserts

Download PDF

Key Performance & Features

Universal Application: Expertly designed for a vast range of materials, including Steel, Stainless Steel, Cast Iron, Non-ferrous, and High-temperature alloys.

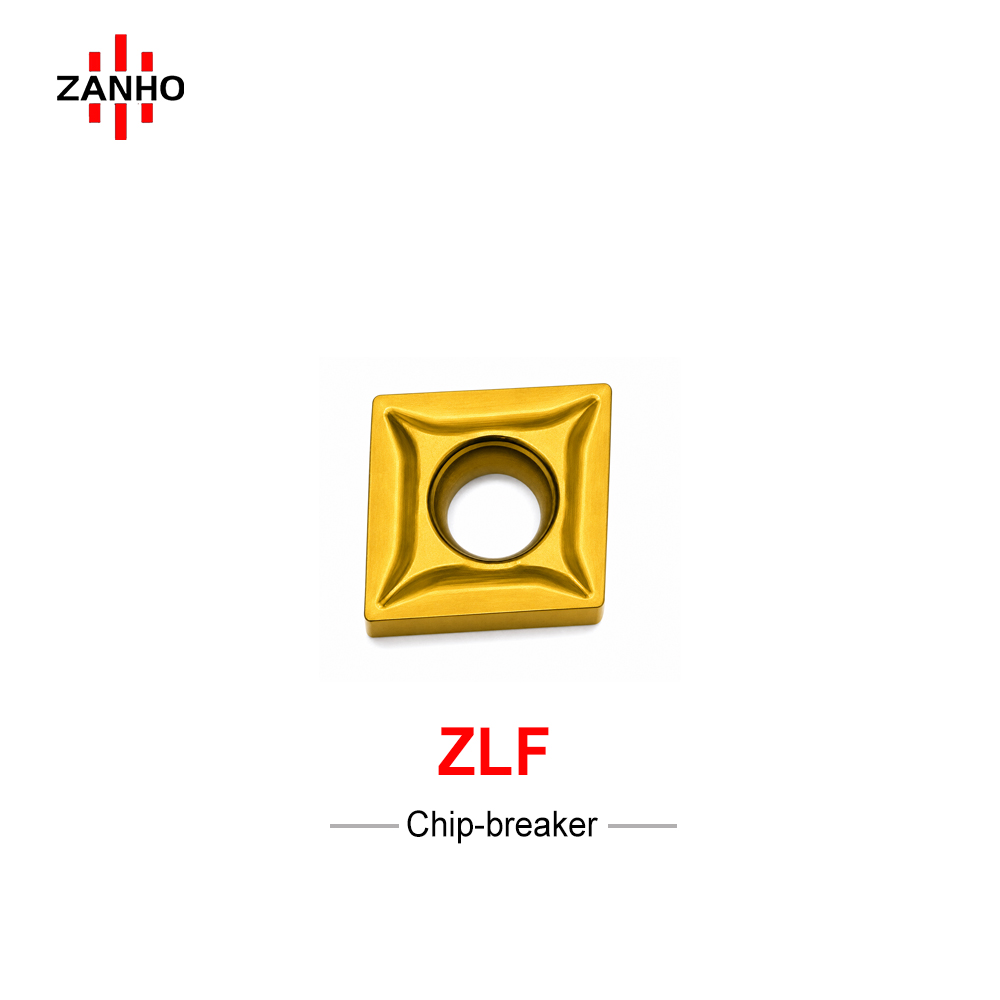

ZLF Chipbreaker Geometry: Optimized for stable chip control and low cutting resistance, even when processing hardened or short-chip materials in finishing stages.
Positive Rhombic Design: The 80-degree positive geometry reduces cutting forces and heat buildup, ideal for maintaining tight tolerances on light-duty CNC lathes.
Superior Surface Finish: Precision-ground edges enhance surface integrity and tool life, meeting the highest standards for final component aesthetics.

Technical Specifications

Model	Feed (f) mm/r	Cut Depth (ap) mm
CCMT060202-ZLF	0.05 - 0.25	0.2 - 2.0
CCMT060204-ZLF	0.05 - 0.25	0.2 - 2.0
CCMT060208-ZLF	0.05 - 0.25	0.2 - 2.0
CCMT09T302-ZLF	0.05 - 0.25	0.2 - 2.0
CCMT09T304-ZLF	0.05 - 0.25	0.2 - 2.0
CCMT09T308-ZLF	0.05 - 0.25	0.2 - 2.0
CCMT120404-ZLF	0.05 - 0.25	0.2 - 2.0
CCMT120408-ZLF	0.05 - 0.25	0.2 - 2.0

Universal Solution for Complex Finishing

Ideal for workshops handling diverse materials. Contact us for grade and coating recommendations tailored to your most frequent workpiece material.
