CNMG-GH

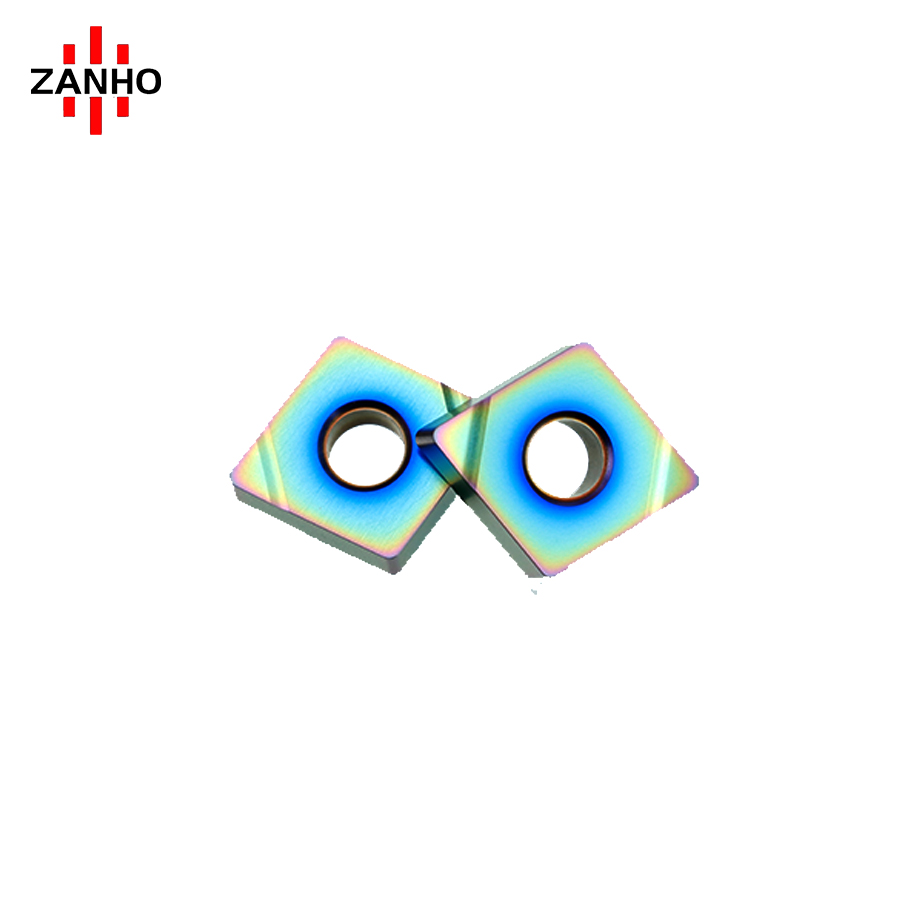

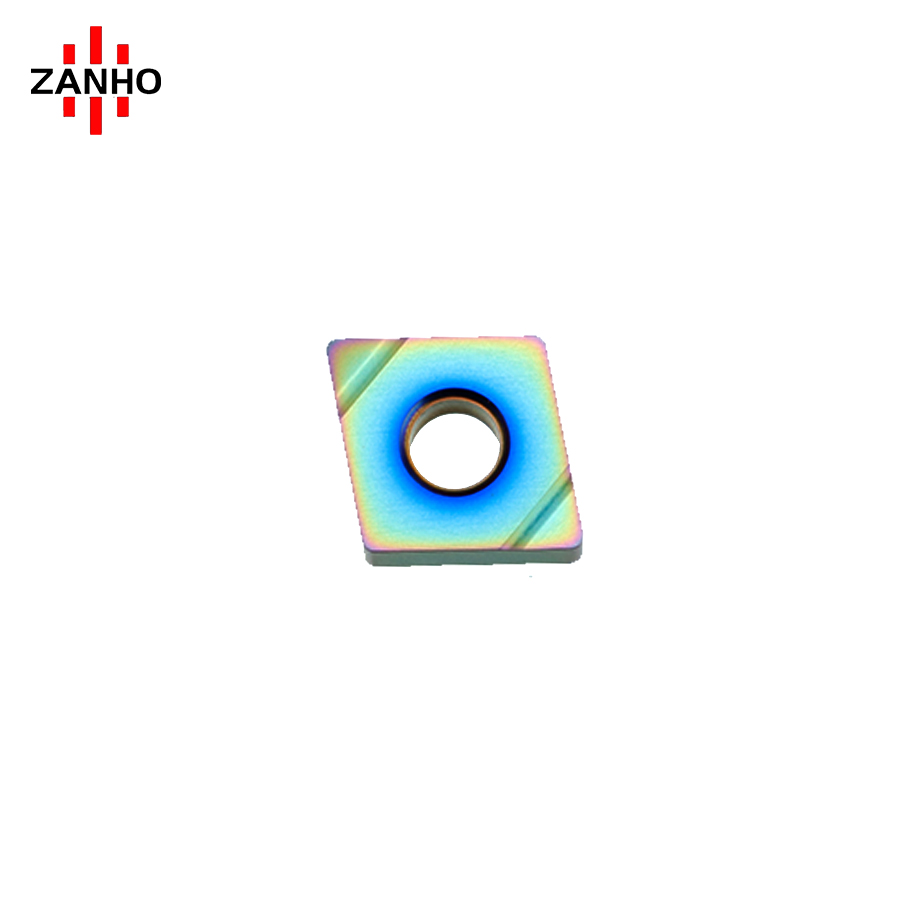

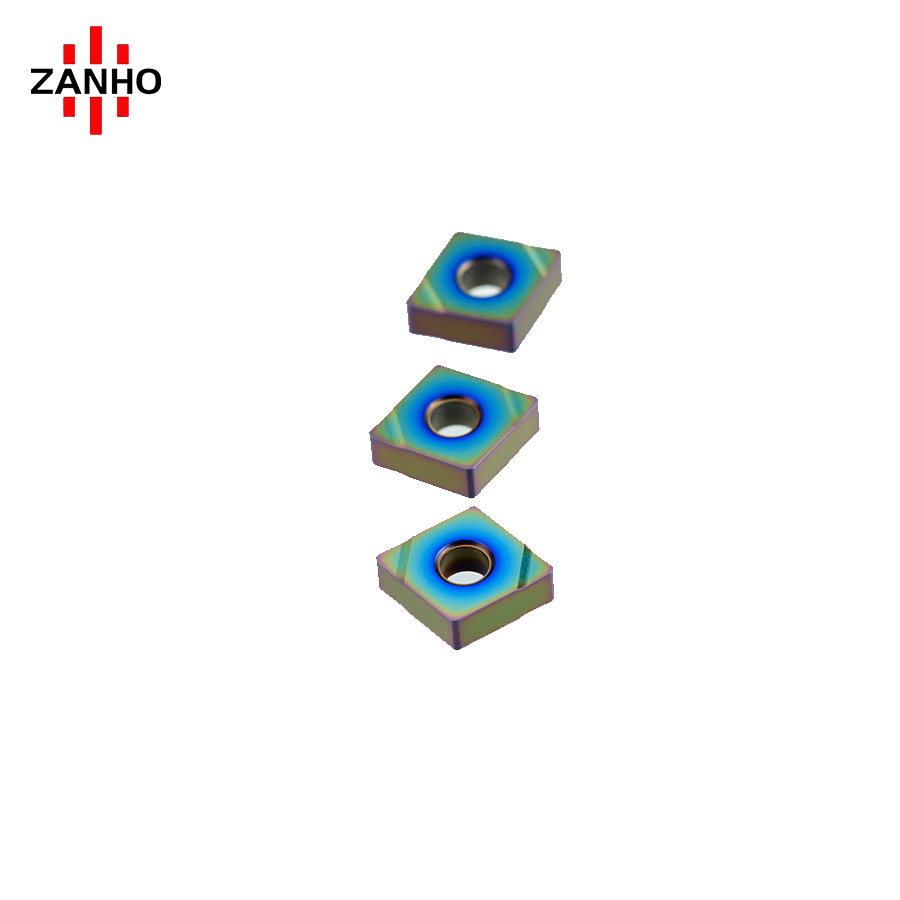

ZANHO CNMG-GH series is a high-performance 80° rhombic turning insert specifically engineered for difficult-to-machine materials. Optimized for HRC40-65 Hardened Steel, High-Temperature Alloys, and Bearing Steel, the specialized GH chipbreaker provides exceptional edge stability at micro-feed rates (0.02-0.2 mm/r). It is the ideal solution for precision hard part turning where thermal resistance and superior surface integrity are critical.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Hardened Steel Specialist: Specifically designed for machining materials with hardness ranging from HRC40 to HRC65, including quenched and tempered steels.
  • Precision Hard Part Turning: Optimized for finishing and semi-finishing of bearing steel and high-temperature alloys with extreme dimensional accuracy.

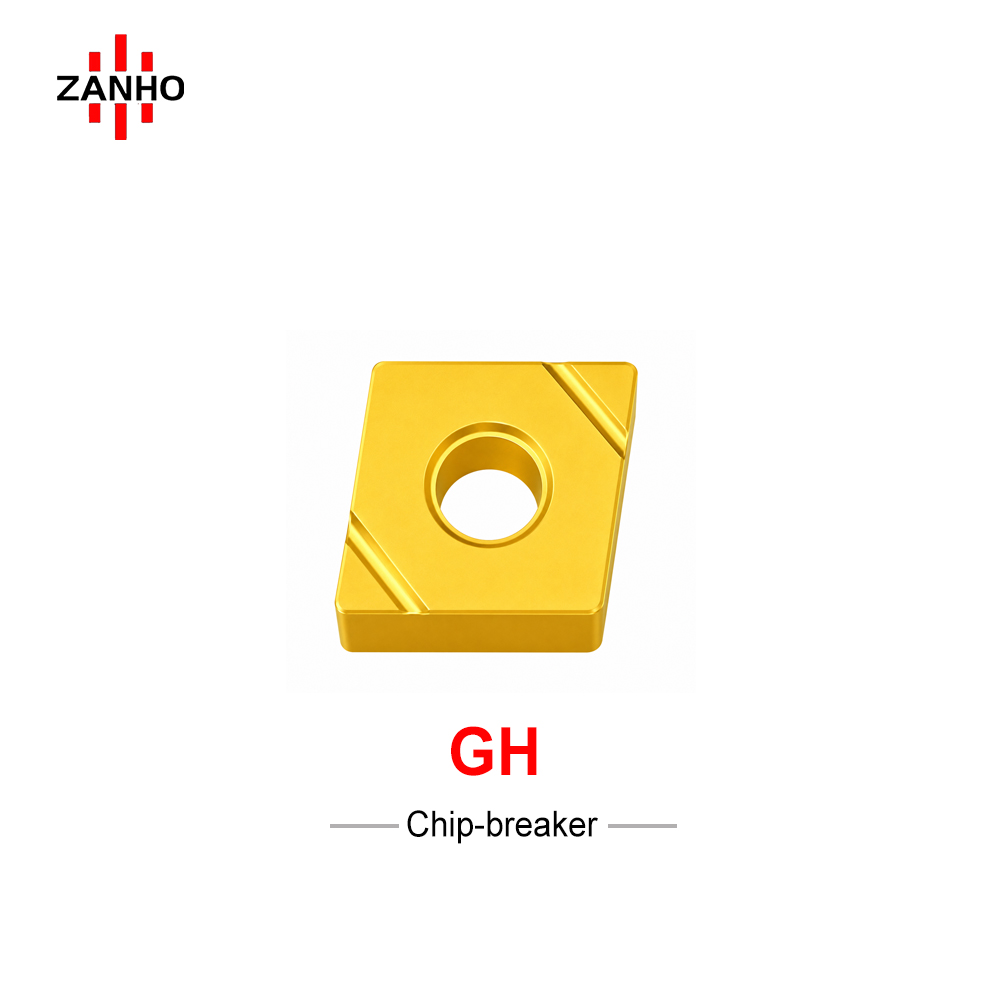

  • Stable GH Chipbreaker: Engineered to provide reliable chip control and prevent edge micro-chipping even at extremely light feed rates (as low as 0.02 mm/r).
  • Superior Heat Resistance: Advanced substrate and coating technology ensure extended tool life under the high thermal loads typical of hard metal cutting.

Technical Specifications

Model Feed (f) Cut Depth (ap)
CNMG120404-GH 0.02 - 0.20 mm/r 0.03 - 0.8 mm
CNMG120408-GH 0.02 - 0.20 mm/r 0.03 - 0.8 mm
CNMG120412-GH 0.02 - 0.20 mm/r 0.03 - 0.8 mm
CNMG160404-GH 0.02 - 0.20 mm/r 0.03 - 0.8 mm
CNMG160408-GH 0.02 - 0.20 mm/r 0.03 - 0.8 mm
CNMG160412-GH 0.02 - 0.20 mm/r 0.03 - 0.8 mm

Solving Difficult Hard-Cutting Tasks?

ZANHO offers premium CBN and specialized carbide grades for hardened steel. Contact our experts to match the right coating for your HRC requirement.
