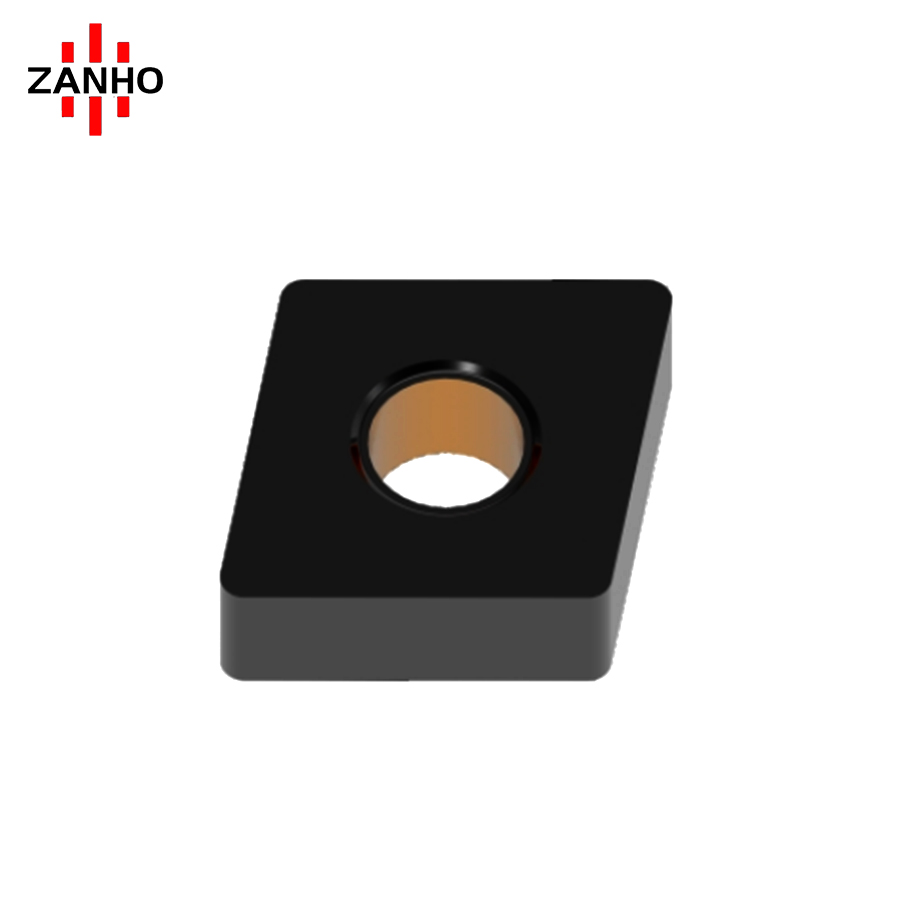

CNMA

ZANHO CNMA series is a heavy-duty 80° rhombic negative turning insert specifically designed for Rough Machining and machining of cast iron. With its Flat-Top (Plain) geometry, it provides maximum cutting edge strength and thermal stability. It is the ideal solution for heavy-load operations, large cutting depths (up to 7.0mm), and interrupted cuts where tool reliability is critical.

Categories: CNMG Inserts

Download PDF

Key Performance & Features

Heavy Roughing Specialist: Designed for high-load turning and heavy metal removal, capable of handling cutting depths up to 7.0mm.
Flat-Top Edge Strength: The plain (non-chipbreaker) design offers the highest possible strength for the cutting edge, making it perfect for interrupted cuts and hard crust materials.
Cast Iron Optimization: Superior performance when machining grey cast iron and other materials that produce short, brittle chips.
Stable Reliability: Negative geometry ensures a thick cross-section for maximum heat dissipation and structural integrity during long-running roughing cycles.

Technical Specifications

Model	Feed (f)	Cut Depth (ap)
CNMA120404	0.25 - 0.60 mm/r	2.5 - 7.0 mm
CNMA120408	0.25 - 0.60 mm/r	2.5 - 7.0 mm
CNMA120412	0.25 - 0.60 mm/r	2.5 - 7.0 mm

Need a Solution for Interrupted Cuts?

ZANHO CNMA inserts are perfect for heavy-duty applications. Our team can recommend the optimal grade and coating for your specific cast iron or steel turning needs.
