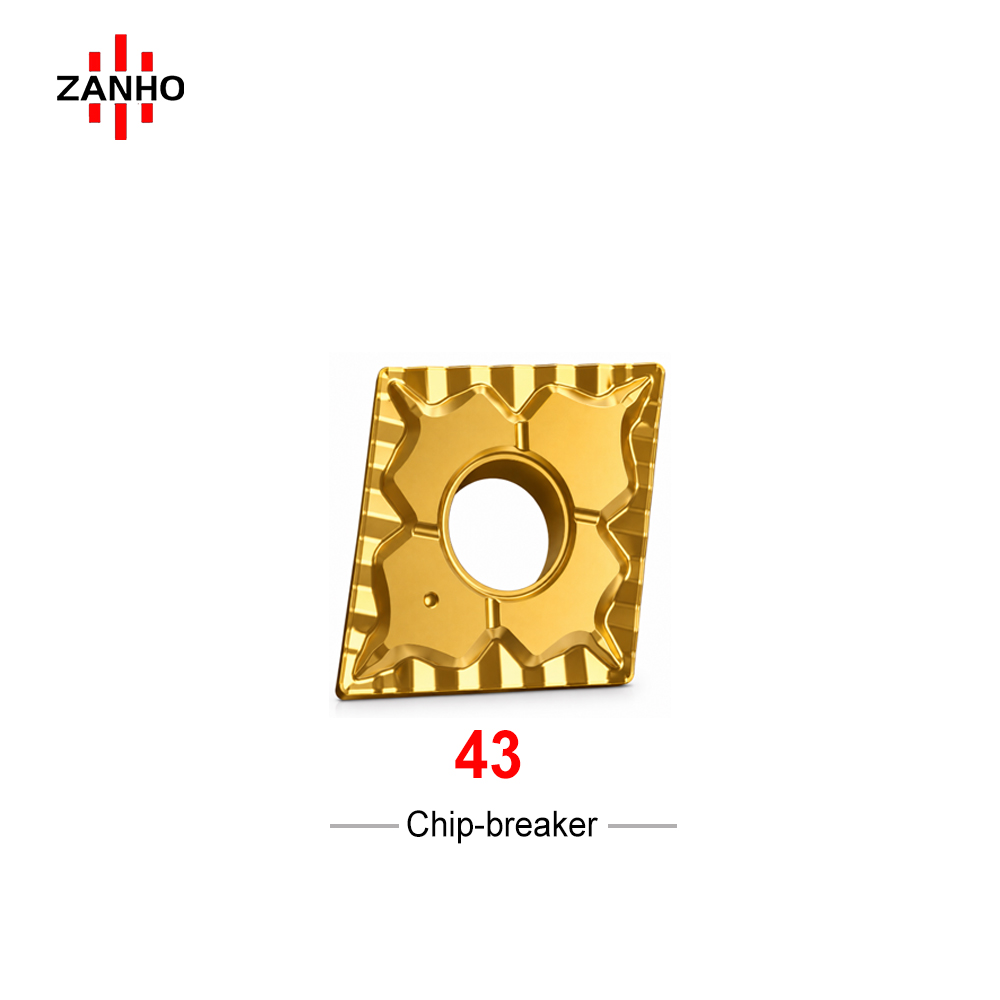

CNMG-43

  • Standard 80° Rhombic: A negative rhombic insert designed for high edge strength and stability in various CNC turning applications.
  • Semi-finishing Specialist: Optimized for Semi-finishing operations, providing an excellent balance between metal removal rate and surface integrity.
  • 43 Chipbreaker Geometry: Features the specialized "43" Profile, engineered for smooth chip evacuation and reduced vibration during continuous and light-interrupted cuts.
  • Wide Operating Range: Suitable for cutting depths (ap) from 0.7mm up to 4.8mm and feed rates (fn) between 0.12-0.52 mm/rev.
Categories:
Learn More
Download PDF
Description
PRODUCT INFORMATION & TECHNICAL DATA
Product Series CNMG-43 Insert Shape 80° Rhombic Relief Angle
Chipbreaker 43 Application Finishing Machining Insert Type Negative Turning Insert
MODEL & DIMENSIONS
Model IC (mm) S (mm) RE (mm) Feed f (mm/rev) ap (mm)
CNMG120404-43 12.7 4.76 0.4 0.12-0.52 0.7-4.8
CNMG120408-43 12.7 4.76 0.8 0.12-0.52 0.7-4.5
CNMG120412-43 12.7 4.76 1.2 0.12-0.52 0.7-4.0
Contact our sales team for the recommended grade for your application!
