CNMG-EM

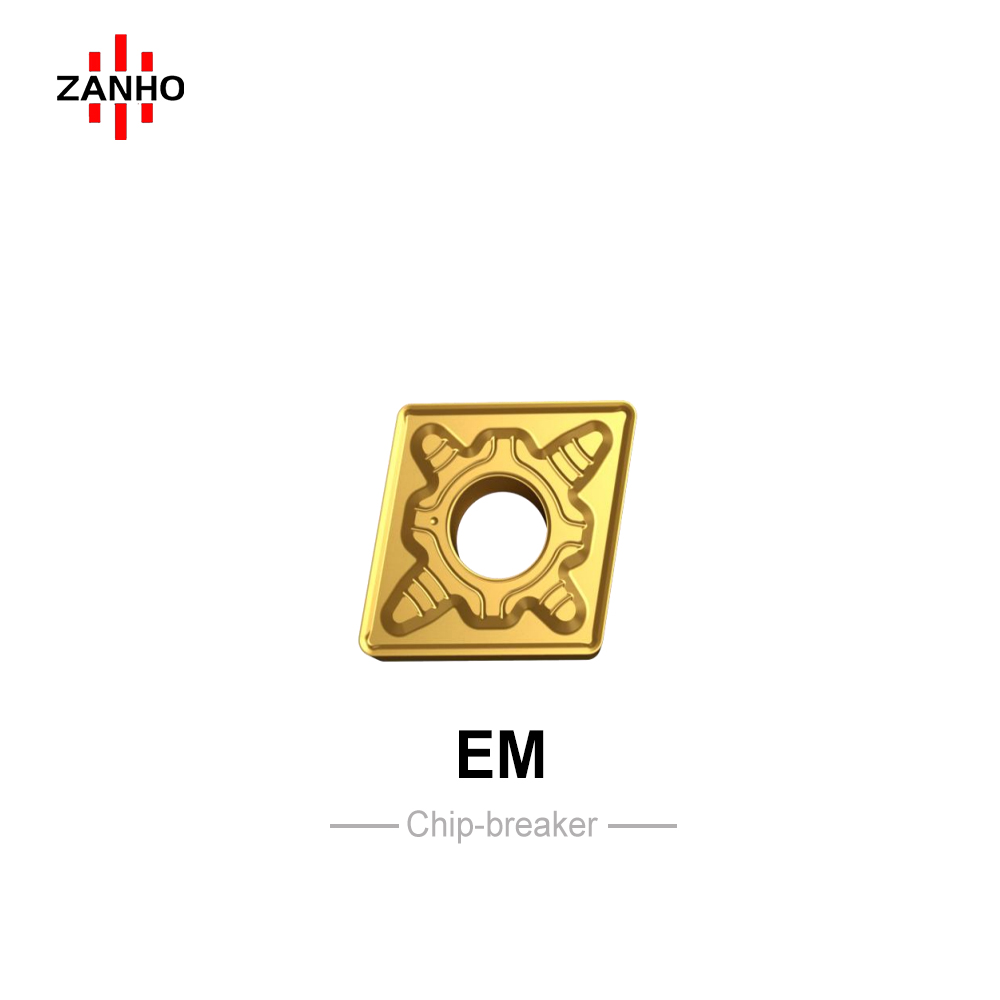

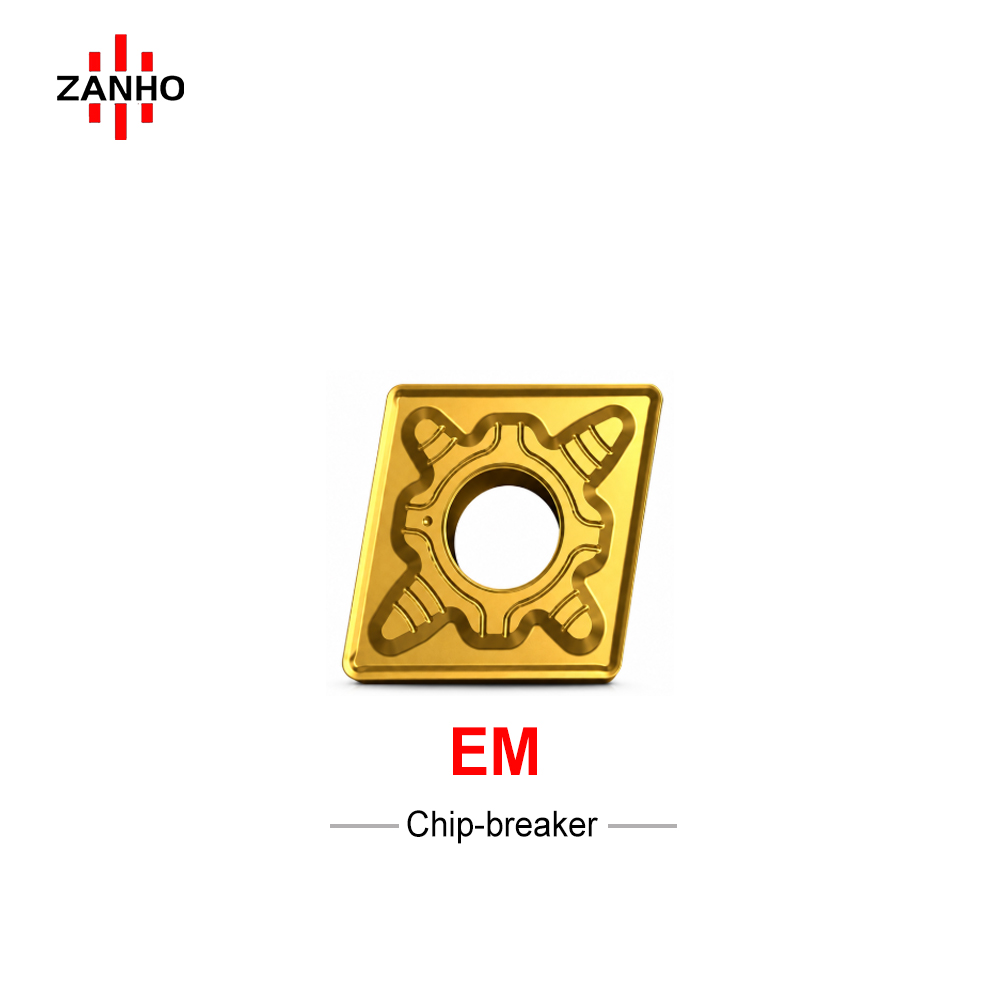

  • Turning Specialist: Engineered as an 80° Rhombic Negative Insert, providing high edge strength for versatile and demanding turning operations.
  • EM Chipbreaker Design: Features the specialized EM Profile, optimized for superior chip control and reduced cutting forces during Medium Machining (Semi-finishing).
  • Precise Radius Options: Available in CNMG120408 (R0.8) and CNMG120412 (R1.2) to meet specific surface finish requirements.
Categories:
Learn More
Download PDF
Description
PRODUCT INFORMATION & TECHNICAL DATA
Product Series CNMG-EM Insert Shape 80° Rhombic Relief Angle
Chipbreaker EM Application Medium Machining Insert Type Negative Turning Insert
MODEL & DIMENSIONS
Model IC (mm) S (mm) RE (mm) Feed f (mm/rev) ap (mm)
CNMG120408-EM 12.7 4.76 0.8 0.13-0.5 0.5-5.0
CNMG120412-EM 12.7 4.76 1.2 0.15-0.55 0.5-5.0
Contact our sales team for the recommended grade for your application!
