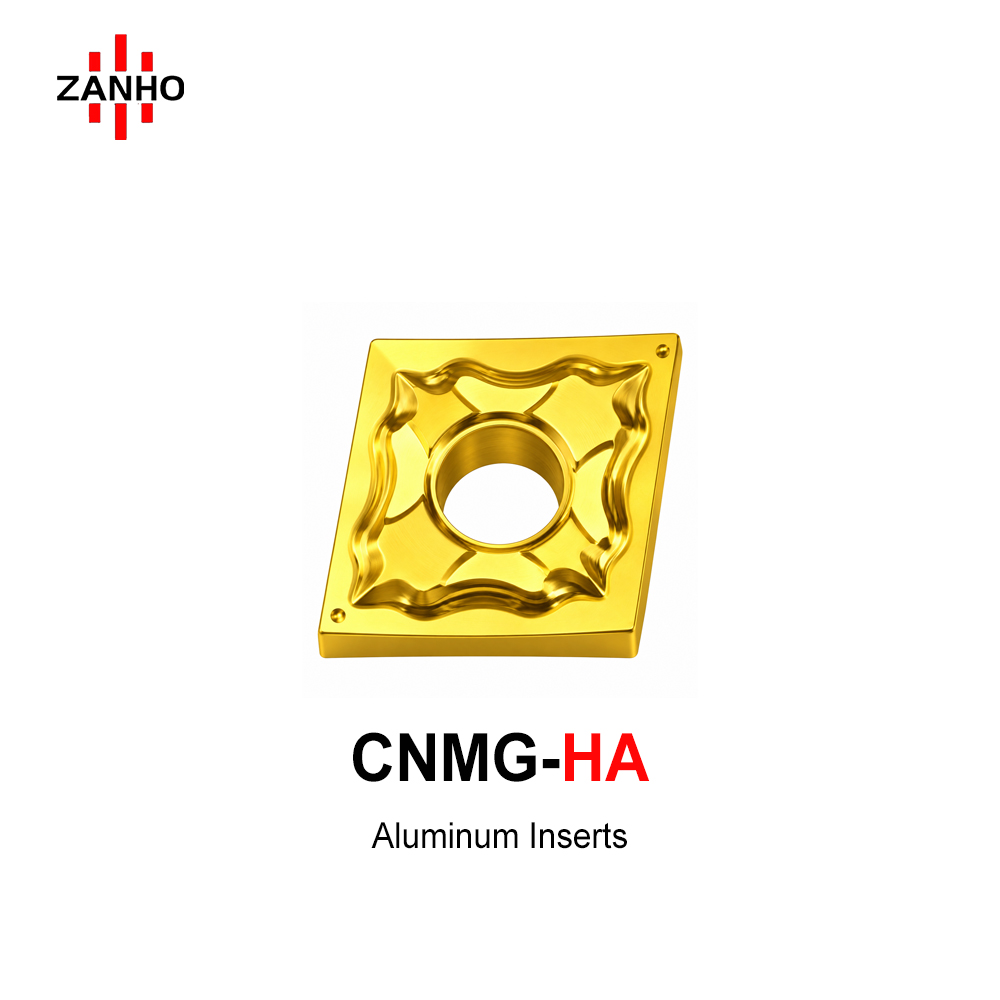

CNMG-HA

ZANHO CNMG1204-HA series: High-precision 80° rhombic inserts specifically engineered for aluminum and non-ferrous metals. Featuring a large positive rake angle and a buffed mirror-polished rake face, these inserts significantly reduce cutting resistance and prevent built-up edge (BUE). Ideal for high-speed turning, profiling, and face machining with superior surface finish.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • Mirror-Polished Rake Face: Highly polished surface reduces friction and prevents chip welding (Built-up Edge) in aluminum machining.
  • Large Positive Rake Geometry: Sharp cutting edge reduces cutting load and minimizes vibration during high-speed operations.
  • Open Wave-Style Chipbreaker: Provides ample space for chip flow, ensuring smooth evacuation even in deep profiling tasks.
  • Superior Surface Finish: Precision ground edges deliver optical-grade smoothness on the workpiece.
  • Versatile Application: Suitable for a wide range of tasks, including external turning, face machining, and complex profiling.

CNMG1204-HA Dimensions (ISO Standard)

Model Edge Length L (mm) Thickness S (mm) Bore D (mm) Radius R (mm)
CNMG120402-HA 12.7 4.76 5.16 0.2
CNMG120404-HA 12.7 4.76 5.16 0.4
CNMG120408-HA 12.7 4.76 5.16 0.8

Looking for the right specification, grade, or coating for your market?

Send us your requirements below. Our sales team will provide product recommendations, competitive pricing, and OEM options based on your needs. For distributors, wholesalers & importers — bulk order inquiries are welcome.

Fill in the form below and get your quotation.
