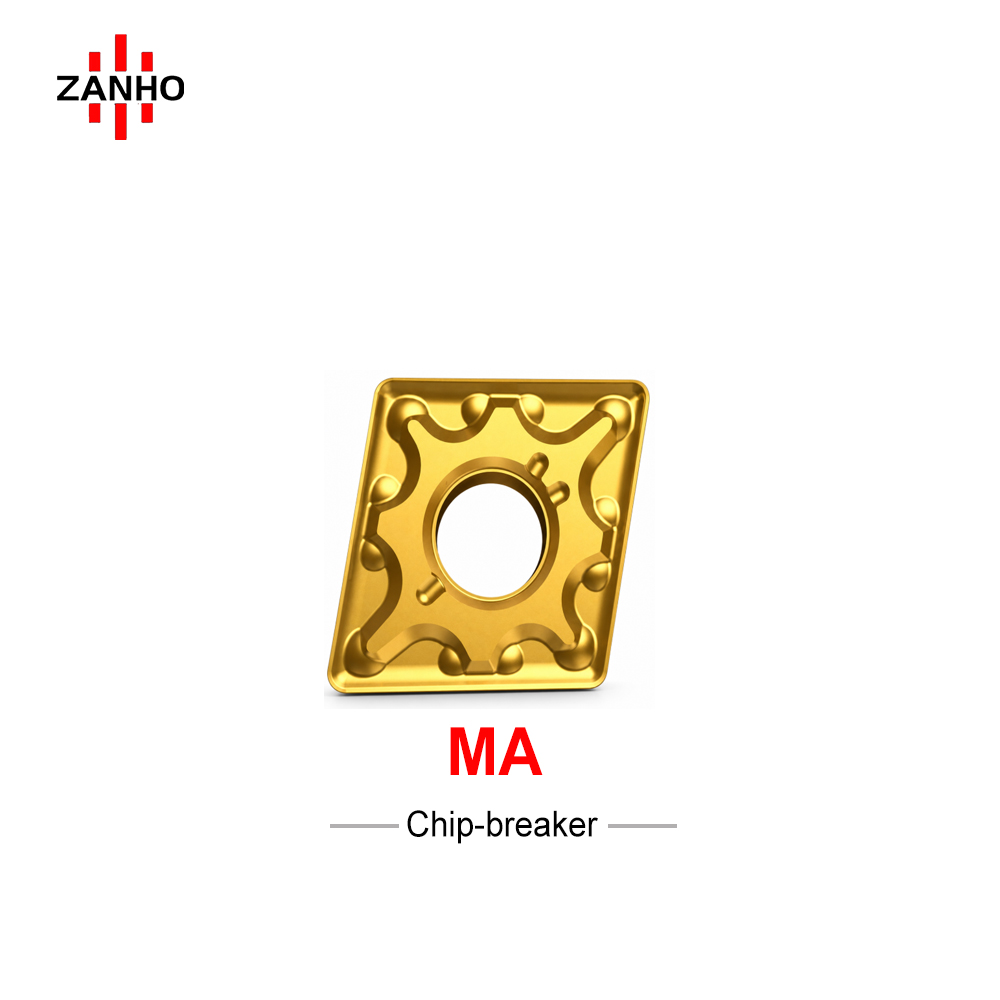

CNMG-MA

  • Robust 80° Rhombic Design: A negative rhombic insert that provides superior edge strength and stability for demanding CNC turning operations.
  • MA Chipbreaker Geometry: Specifically engineered for Medium Machining, the MA profile ensures excellent chip breaking performance and low cutting resistance across a broad range of feeds.
  • Broad Machining Range: Capable of handling a depth of cut (ap) from 0.5mm up to 5.0mm, making it ideal for transitioning from roughing to finishing.
Categories:
Learn More
Download PDF
Description
PRODUCT INFORMATION & TECHNICAL DATA
Product Series CNMG-MA Insert Shape 80° Rhombic Relief Angle
Chipbreaker MA Application Semi-finish Machining Insert Type Negative Turning Insert
MODEL & DIMENSIONS
Model IC (mm) S (mm) RE (mm) Feed f (mm/rev) ap (mm)
CNMG120404-MA 12.7 4.76 0.4 0.10-0.50 0.5-5.0
CNMG120408-MA 12.7 4.76 0.8 0.13-0.50 0.5-5.0
CNMG120412-MA 12.7 4.76 1.2 0.15-0.55 0.5-5.0
Contact our sales team for the recommended grade for your application!
