CNMG1606-RT & CNMG1906-RT | Heavy Rough Machining Insert

ZANHO CNMG-RT is a high-strength 80° rhombic negative turning insert specifically engineered for Heavy Rough Machining. Featuring the reinforced RT chipbreaker, it delivers extreme metal removal rates (up to 9.0mm depth of cut) and superior impact resistance, ensuring stable performance in the most demanding steel and cast iron applications.

Categories: CNMG Inserts

Download PDF

Heavy Roughing Performance

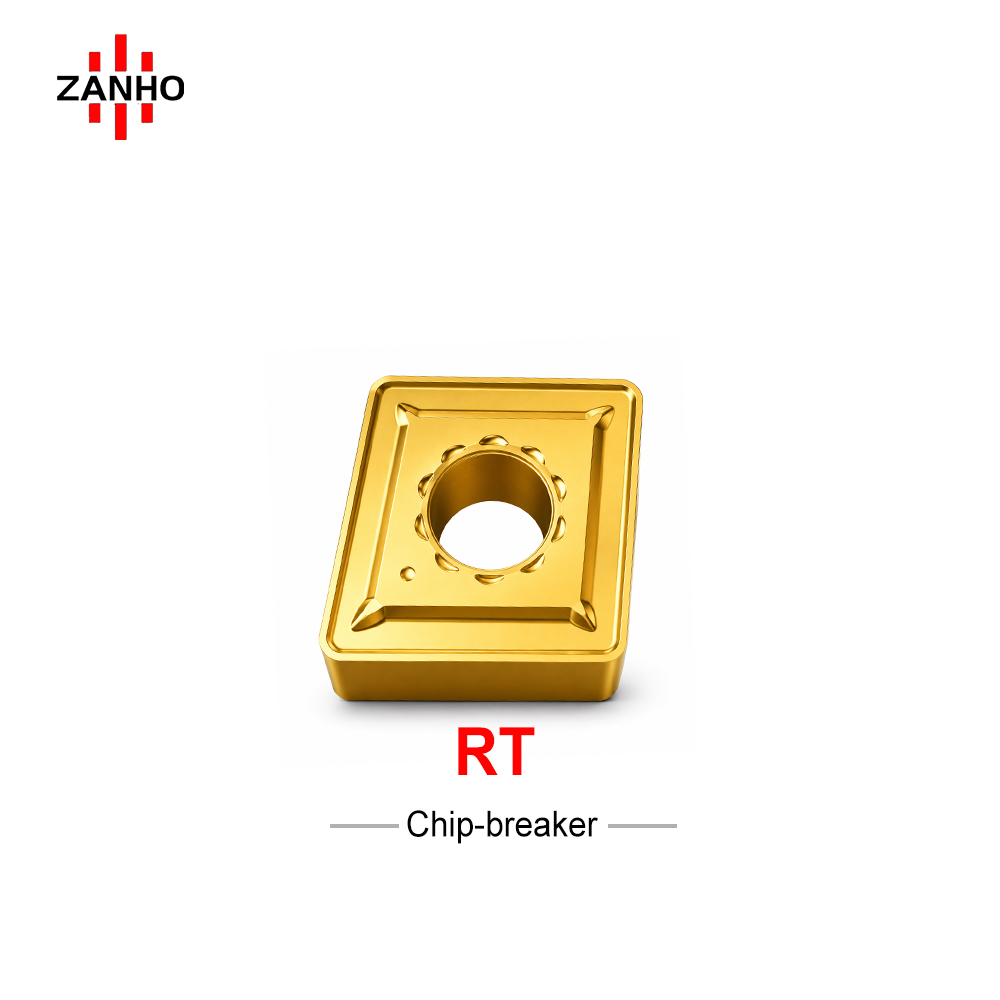

RT Chipbreaker: Specifically engineered for Heavy Rough Machining, featuring a reinforced edge to handle high chip loads and interrupted cuts.
Extreme Metal Removal: Supports a maximum depth of cut (ap) up to 9.0mm, significantly increasing productivity in heavy-duty operations.
High Feed Stability: Optimized for feed rates from 0.30 to 0.85 mm/rev, providing stable performance under high pressure.
Superior Impact Resistance: Premium carbide substrate with tough coating to prevent edge chipping during heavy scaling.

Technical Specifications

Model	Radius (re)	Feed (fn)	Cut Depth (ap)
CNMG160612-RT	1.2 mm	0.30 - 0.85	3.0 - 9.0 mm
CNMG190612-RT	1.2 mm	0.30 - 0.85	3.0 - 9.0 mm
CNMG190616-RT	1.6 mm	0.30 - 0.85	3.0 - 9.0 mm

Recommended Materials

P (Steel) ★★★

K (Cast Iron) ★★★

M (Stainless) ★★

ZANHO - Experts in Heavy-Duty Machining Solutions

High-production inserts for large scale components. Contact us for technical support and custom grades.
