CNMG-YM

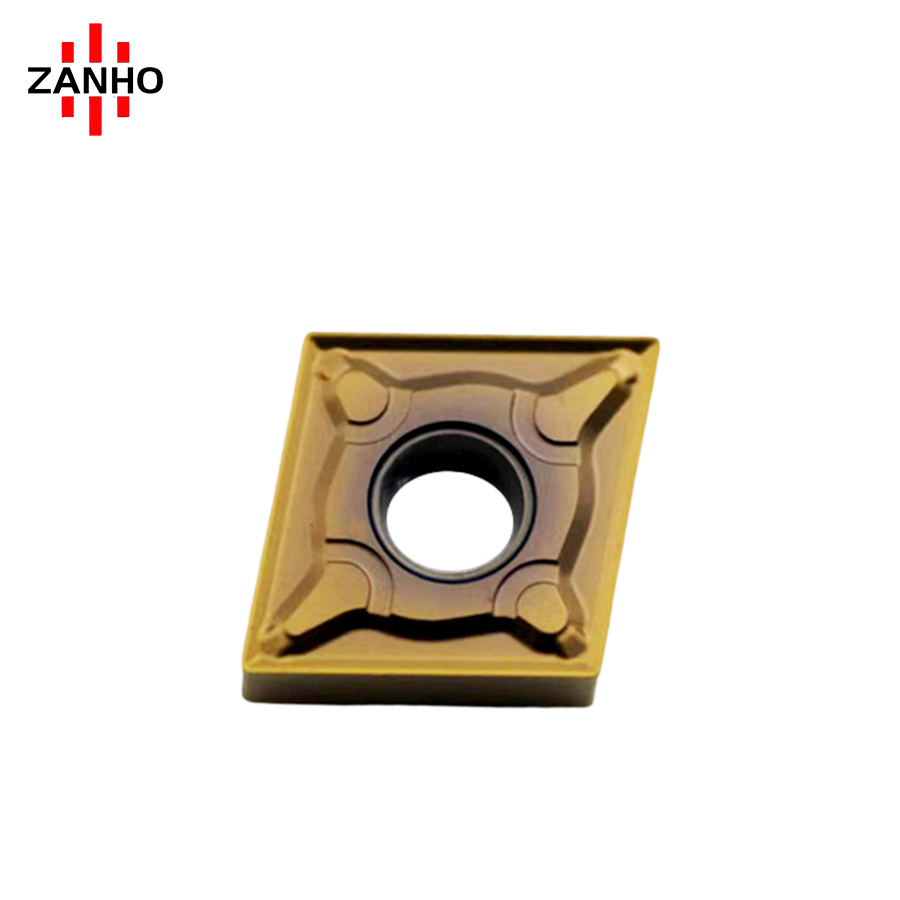

ZANHO CNMG-YM series is a specialized 80° rhombic negative turning insert engineered for Stainless Steel Semi-Roughing and Semi-Finishing. Featuring a unique Double Rake Angle design, it balances high cutting sharpness with extreme edge strength. The YM chipbreaker incorporates a raised structure and large lateral grooves to ensure smooth chip evacuation and prevent chip accumulation, making it ideal for high-productivity machining of tough stainless steel components.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Stainless Steel Specialist: Specifically optimized for the unique challenges of stainless steel machining, ensuring reliable semi-roughing performance.
  • Double Rake Angle Design: Combines a sharp cutting action to reduce heat with a reinforced edge to withstand the work-hardening tendencies of stainless materials.

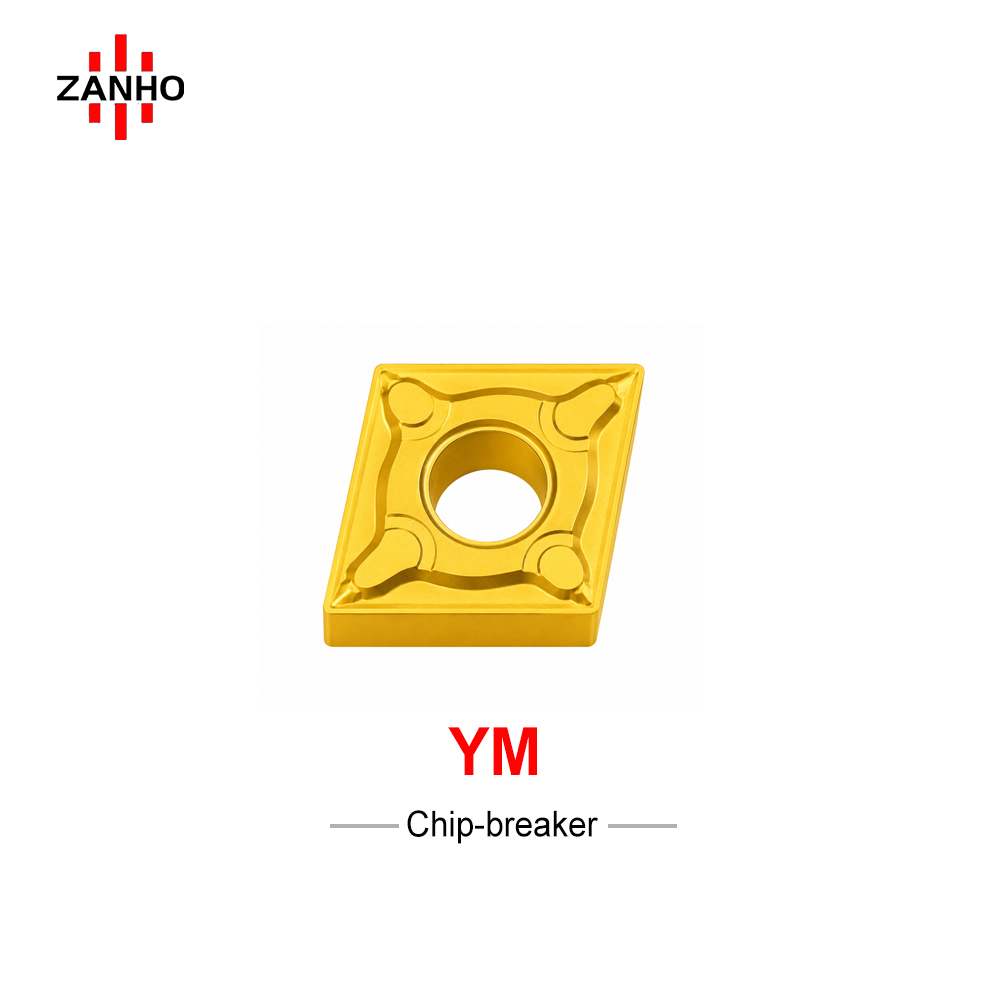

  • YM Chipbreaker Geometry: The raised structure ensures stable chip breaking across varying depths of cut (0.3-4.0mm) and feeds (0.2-0.5 mm/rev).
  • Large Lateral Grooves: Provides ample space for chip curling and rapid evacuation, effectively preventing chip nesting and surface damage.

Technical Specifications

Model Feed (f) Cut Depth (ap)
CNMG120404-YM 0.2 - 0.5 mm/rev 0.3 - 4.0 mm
CNMG120408-YM 0.2 - 0.5 mm/rev 0.3 - 4.0 mm
CNMG120412-YM 0.2 - 0.5 mm/rev 0.3 - 4.0 mm
CNMG160608-YM 0.2-0.5mm/rev 0.5-6.5mm
CNMG160612-YM 0.2-0.5mm/rev 0.5-6.5mm

Need Optimal Grade Matching for Stainless Steel?

ZANHO offers specialized PVD grades for aerospace and medical-grade stainless steel. Contact us for technical support and customized coating solutions.
