CNMG-TT

Categories:
Learn More
Download PDF
Description

Premium Performance & Design

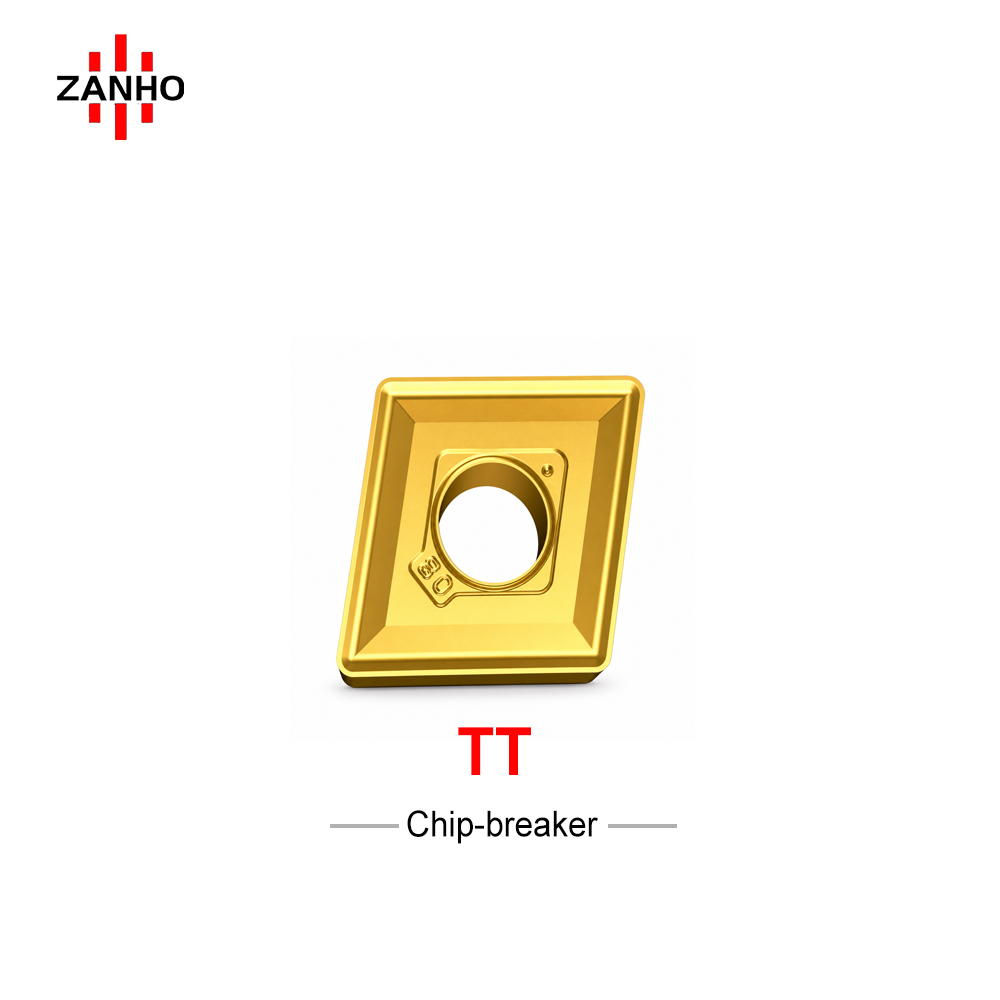

  • TT Chipbreaker: Specially designed for Medium Machining, providing reliable chip breaking and preventing heat accumulation.
  • Heavy Duty Capability: Includes the CNMG1906 series for larger depth of cut (up to 8.0mm), ideal for high-removal rate operations.
  • Wide Feed Range: Supports stable turning with feed rates from 0.11 to 0.60 mm/rev.
  • Enhanced Durability: Advanced coating technology for superior wear resistance in heavy CNC turning environments.

Technical Specifications

Model Radius (re) Feed (fn) Cut Depth (ap)
CNMG120404-TT 0.4 mm 0.11 - 0.50 0.5 - 5.0 mm
CNMG120408-TT 0.8 mm 0.13 - 0.50 0.5 - 5.0 mm
CNMG190608-TT 0.8 mm 0.17 - 0.60 0.5 - 8.0 mm

Application Materials

P (Steel) ★★★
M (Stainless) ★★★
K (Cast Iron) ★★

ZANHO - Your Professional CNC Tooling Partner

Factory direct supply with high precision and competitive pricing. Inquire today for bulk discounts!

Looking for the right specification, grade, or coating for your market?

Send us your requirements below. Our sales team will provide product recommendations, competitive pricing, and OEM options based on your needs. For distributors, wholesalers & importers — bulk order inquiries are welcome.

Fill in the form below and get your quotation.
