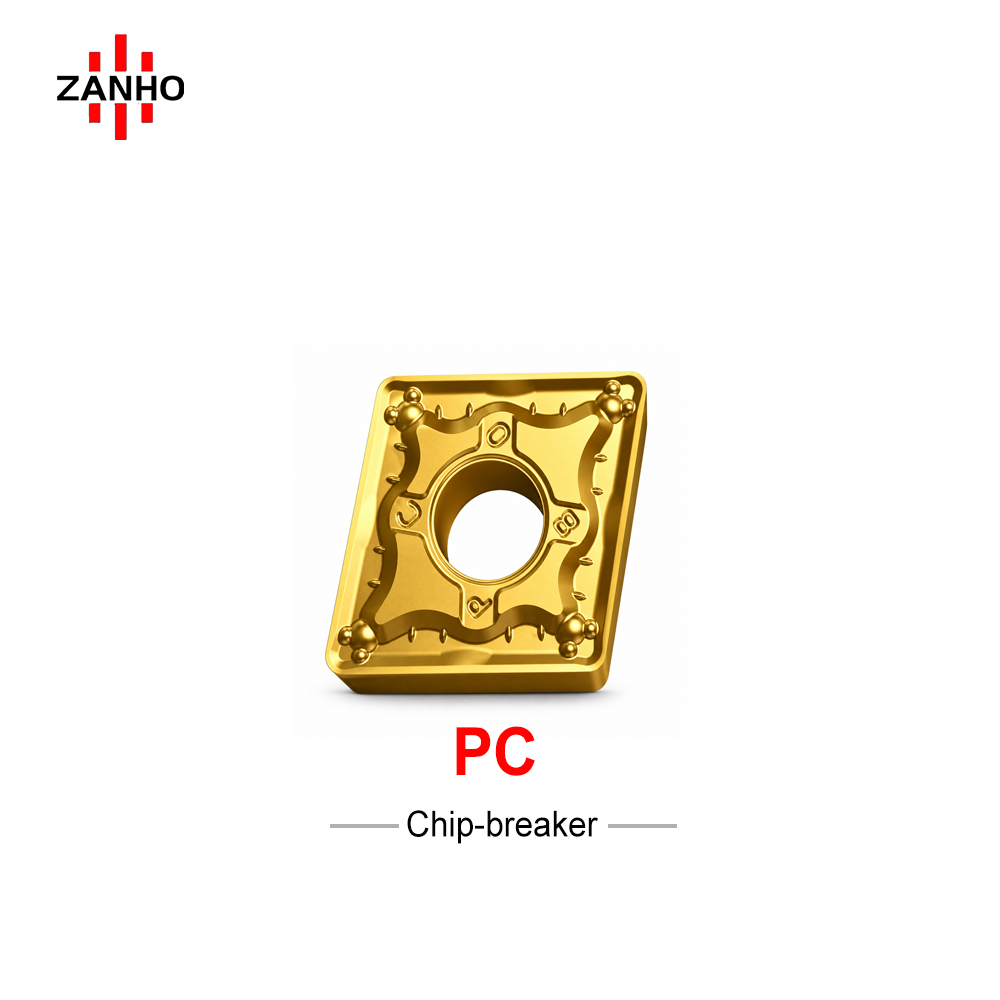

CNMG-PC

  • 80° Rhombic Stability: Negative rhombic geometry ensures maximum edge strength for high-production CNC turning.
  • PC Chipbreaker Design: Engineered for Medium Machining, providing exceptional chip control at cutting depths (ap) up to 5.0mm.
  • Broad Feed Range: Versatile fn (0.08 - 0.50 mm/rev) ensures stable performance from semi-finishing to light roughing.
Categories:
Learn More
Download PDF
Description
  • Precision Profiling: Designed with a stable 80° rhombic geometry for high-production turning.
  • PC Chipbreaker: Specifically engineered for Medium Machining, ensuring excellent chip control even at 5.0mm depth of cut.
  • Versatile Application: Highly effective in Steel (P) and Stainless Steel (M) machining.
  • High Durability: Advanced coating for maximum heat resistance and extended tool life.
Model Radius (re) Feed (fn) Cut Depth (ap)
CNMG120404-PC 0.4 mm 0.08 - 0.25 0.4 - 4.0 mm
CNMG120408-PC 0.8 mm 0.15 - 0.50 0.5 - 5.0 mm
CNMG120412-PC 1.2 mm 0.15 - 0.50 0.5 - 5.0 mm









  • P (Steel): ★★★ (Optimized
  • M (Stainless Steel): ★★★ (Optimized)
  • K (Cast Iron): ★★ (Suitable)

Need Help Selecting the Right Grade?
Our sales team can recommend the optimal grade based on your workpiece material and machining conditions.
