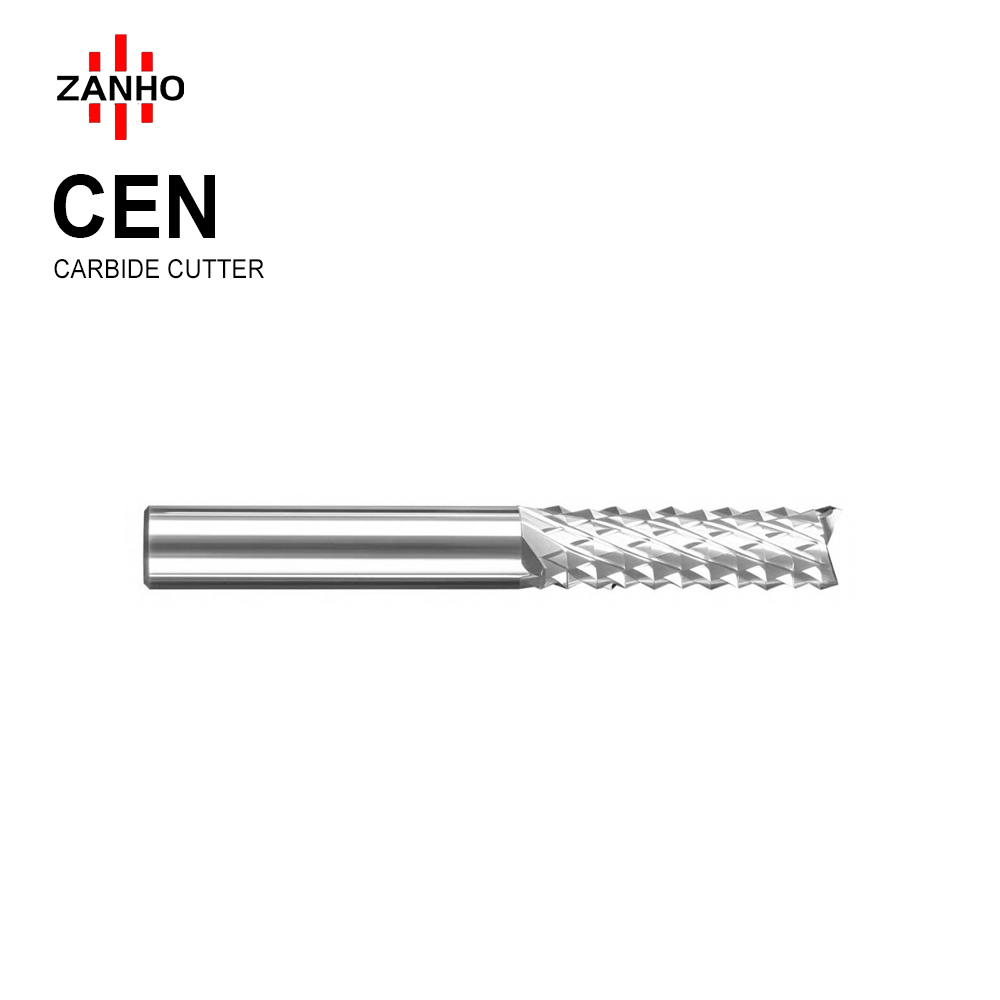

Carbide Corn Router Bit

  • Abrasive Material Specialist: Specifically engineered for the most demanding PCB (FR-4/G10), Fiberglass, and reinforced composite machining applications.
  • Diamond-Cut Geometry: Features a specialized Corn-Style (Burr) multi-tooth design that breaks chips effectively, reducing heat buildup and preventing surface tearing.
  • Burr-Free Performance: Precision-ground edges ensure exceptionally clean cuts without delamination or fiber pull-out, ideal for high-precision electronics.
  • Massive L1 Selection: Available with extended cutting lengths up to 55mm, perfect for one-pass cutting through thick panels or stacked materials.
  • Workpiece Compatibility: Highly effective for Epoxy Resin, Fiberglass, Carbon Fiber, Bakelite, and high-density fiberboards (HDF).
Categories:
Learn More
Download PDF
Description

Technical Specifications

Order Number Specification D L1 D1 L
CEN-2S-01810 D3.175*10H*38L 3.175 10 / 38
CEN-2S-01812 D3.175*12H*38L 3.175 12 / 38
CEN-2S-01815 D3.175*15H*38L 3.175 15 / 38
CEN-2S-01817 D3.175*17H*38L 3.175 17 / 38
CEN-2S-01822 D3.175*22H*45L 3.175 22 / 38
CEN-2S-01825 D3.175*25H*45L 3.175 25 / 38
CEN-2S-04012 D4*12H*45L*1F 4 12 / 45
CEN-2S-04015 D4*15H*45L*1F 4 15 / 45
CEN-2S-04017 D4*17H*45L*1F 4 17 / 45
CEN-2S-04022 D4*22H*45L*1F 4 22 / 45
CEN-2S-04025 D4*25H*50L*1F 4 25 / 50
CEN-2S-05012 D5*12H*50L*1F 5 12 / 50
CEN-2S-05017 D5*17H*50L*1F 5 17 / 50
CEN-2S-05022 D5*22H*50L*1F 5 22 / 50
CEN-2S-06017 D6*17H*50L*1F 6 17 / 50
CEN-2S-06022 D6*22H*50L*1F 6 22 / 50
CEN-2S-06025 D6*25H*50L*1F 6 25 / 50
CEN-2S-06032 D6*32H*60L*1F 6 32 / 60
CEN-2S-08022 D8*22H*60L*1F 8 22 / 60
CEN-2S-08025 D8*25H*60L*1F 8 25 / 60
CEN-2S-08032 D8*32H*60L*1F 8 32 / 60
CEN-2S-10032 D10*32H*75L*1F 10 32 / 75
CEN-2S-10055 D10*55H*100L*1F 10 55 / 100
CEN-2S-12032 D12*32H*75L*1F 12 32 / 75
CEN-2S-12055 D12*55H*100L*1F 12 55 / 100
