CTP/CTPA Grooving&Cut-off Inserts

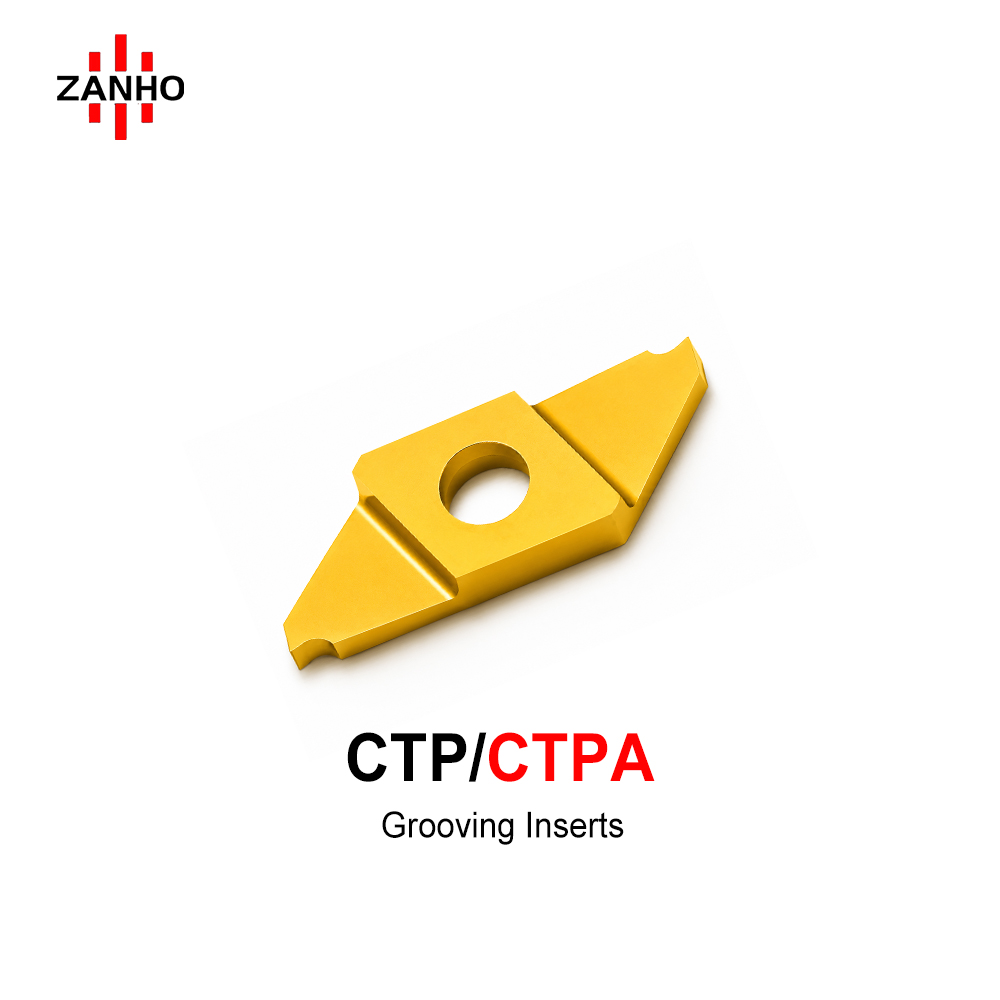

ZANHO CTP/CTPA series: High-precision rhombic indexable inserts for external parting and grooving on Swiss-type lathes. Featuring a stable indexable structure with multiple lead angle options, these inserts are optimized for small component machining. Engineered with an advanced rake geometry to reduce vibration and ensure reliable chip curling even in difficult-to-machine alloys.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • Rhombic Indexable Structure: Features a high-stability indexable design with multiple cutting edges, offering excellent cost-efficiency for mass production.
  • Multi-Lead Angle Versatility: Available in multiple lead angle configurations to support diverse machining directions (Right-hand and Left-hand) on Swiss lathes.
  • Swiss CNC Optimized: Specifically developed for external grooving and parting-off in the tight work envelopes of sliding head lathes.
  • Advanced Chip Control: The front rake chipbreaker guides chip curling and prevents wrapping, critical for continuous high-speed operation.
  • Vibration Suppression: Reduced cutting forces ensure stability even under weak rigidity conditions, maintaining tight dimensional tolerances.

CTP / CTPA Rhombic Insert Specifications (mm)

Designation (Right) Designation (Left) W Dmax T H ød R
CTP05FRN CTP05FLN 0.50 5.0 2.5 8.0 5.0 0.05
CTP07FRN CTP07FLN 0.70 8.0
CTP10FRN CTP10FLN 1.00 12.0
CTP15FRN CTP15FLN 1.50 12.0
CTP20FRN CTP20FLN 2.00 12.0
CTP05FR CTP05FLK 0.50 5.0
CTP07FR CTP07FLK 0.70 8.0
CTP10FR CTP10FLK 1.00 12.0
CTP15FR CTP15FLK 1.50 12.0
CTP20FR CTP20FLK 2.00 12.0
CTPA10FRN CTPA10FLN 1.00 16.0 3.5 9.4
CTPA15FRN CTPA15FLN 1.50
CTPA20FRN CTPA20FLN 2.00
CTPA25FRN CTPA25FLN 2.50
CTPA30FRN CTPA30FLN 3.00
CTPA10FR CTPA10FLK 1.00
CTPA15FR CTPA15FLK 1.50
CTPA20FR CTPA20FLK 2.00

Versatile Rhombic Indexable Solutions for Swiss Machining

ZANHO CTP/CTPA series provides industry-leading flexibility and precision. Bulk B2B pricing available upon inquiry.
